• Model NO.：KM-2335-8
• Precision Measuring Device：Precision Measuring Device
• Certification：DIN, GB, RoHS, ISO
• Customized：Customized
• Measurement：Metric,Inch
• Protection Degree：IP54
• Transport Package：Aluminium Box
• Specification：DIN Standard
• Trademark：KM
• Origin：Shaanxi, China
• HS Code：9017300000
• Production Capacity：50000pieces,Month

Basic Info.

Model NO. KM-2335-8 Precision Measuring Device Precision Measuring Device Certification DIN, GB, RoHS, ISO Customized Customized Measurement Metric/Inch Protection Degree IP54 Transport Package Aluminium Box Specification DIN Standard Trademark KM Origin Shaanxi, China HS Code 9017300000 Production Capacity 50000pieces/Month

Product Description

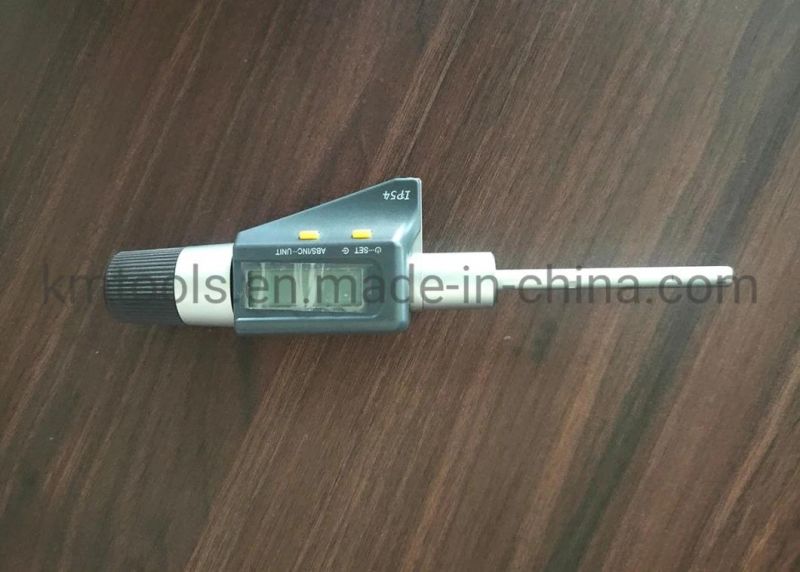

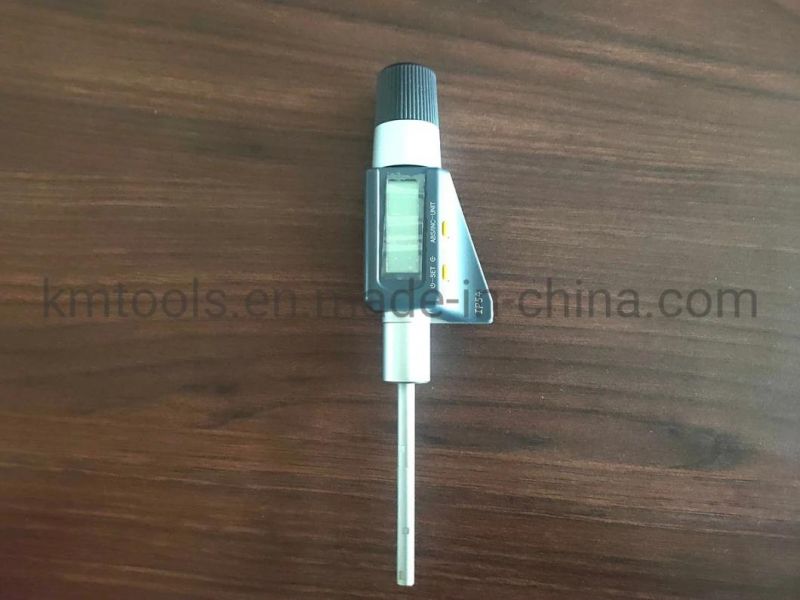

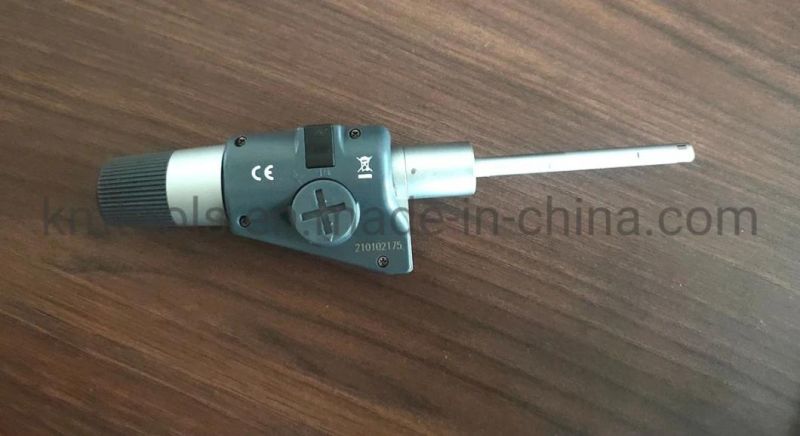

Feature:
1. Resolution:0.001mm.
2. Measurement can be taken closer to the bottom of the blind bore, and can be taken into a deep hole with a extension rod.
3. Highly durable because of carbide-tipped contact points.
4. Ratchet stop.
5. Criterion:DIN40050/IEC529.
6. RS232 data output.
  Connecting cable:P1102(Optional).
7. Protection degree:IP54

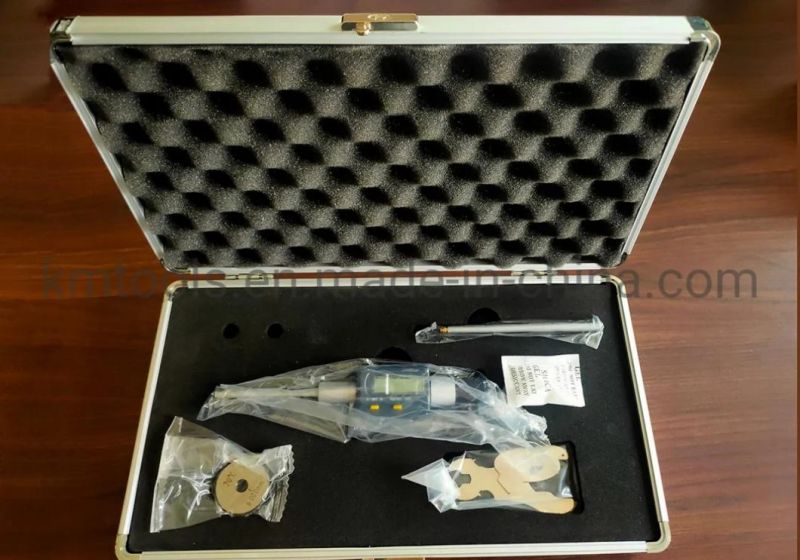

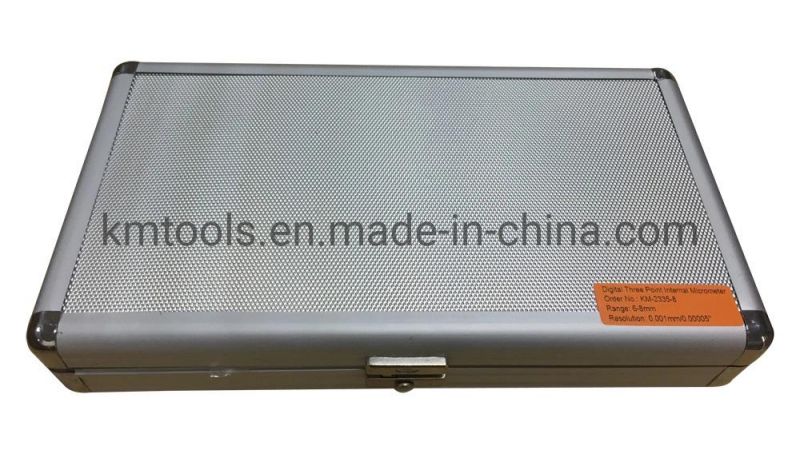

8. Supplied in the storage case.

Specification:
Metric:

Order No.	Range	Accuracy	Resolution	Setting rings	L1	A	Extension rods
KM-2335-8	6~8mm	±0.004mm	0.001mm	φ6mm	54.5mm	1.5mm	100mm
KM-2335-10	8~10mm	±0.004mm	0.001mm	Φ8mm	54.5mm	1.5mm	100mm
KM-2335-12	10~12mm	±0.004mm	0.001mm	Φ10mm	54.5mm	1.5mm	100mm
KM-2335-16	12~16mm	±0.004mm	0.001mm	Φ16mm	80mm	0.5mm	150mm
KM-2335-20	16~20mm	±0.004mm	0.001mm	Φ16mm	80mm	0.5mm	150mm
KM-2335-25	20~25mm	±0.004mm	0.001mm	Φ25mm	90mm	0.5mm	150mm
KM-2335-30	25~30mm	±0.004mm	0.001mm	Φ25mm	90mm	0.5mm	150mm
KM-2335-40	30~40mm	±0.004mm	0.001mm	Φ40mm	97mm	0.5mm	150mm
KM-2335-50	40~50mm	±0.005mm	0.001mm	Φ40mm	97mm	0.5mm	150mm
KM-2335-63	50-63mm	±0.005mm	0.001mm	φ62mm	114mm	0.5mm	150mm
KM-2335-75	62-75mm	±0.005mm	0.001mm	φ62mm	114mm	0.5mm	150mm
KM-2335-88	75-88mm	±0.005mm	0.001mm	Φ87mm	114mm	0.5mm	150mm
KM-2335-100	87-100mm	±0.005mm	0.001mm	Φ87mm	114mm	0.5mm	150mm
