• Model NO.：MHW-B16-1.6L
• Application：Industrial Scales, Special Scales, Packing Weigher
• Function：Weighing Scale, Counting Scales
• Structure：Electronic Scale
• Shape：Circular
• Max Speed：180p,Min
• Control Panel：7′′ Touch Screen
• Hopper Size：1,6L, 2.5L
• Packing Size：1950X1650X1620mm
• Special Material：Currugated SUS316L
• Transport Package：Wooden Case
• Specification：Stainless steel 304 made
• Trademark：Intelidura
• Origin：China
• HS Code：8423301010
• Production Capacity：500sets ,Year

Basic Info.

Model NO. MHW-B16-1.6L Application Industrial Scales, Special Scales, Packing Weigher Function Weighing Scale, Counting Scales Structure Electronic Scale Shape Circular Max Speed 180p/Min Control Panel 7′′ Touch Screen Hopper Size 1,6L, 2.5L Packing Size 1950X1650X1620mm Special Material Currugated SUS316L Transport Package Wooden Case Specification Stainless steel 304 made Trademark Intelidura Origin China HS Code 8423301010 Production Capacity 500sets /Year

Product Description

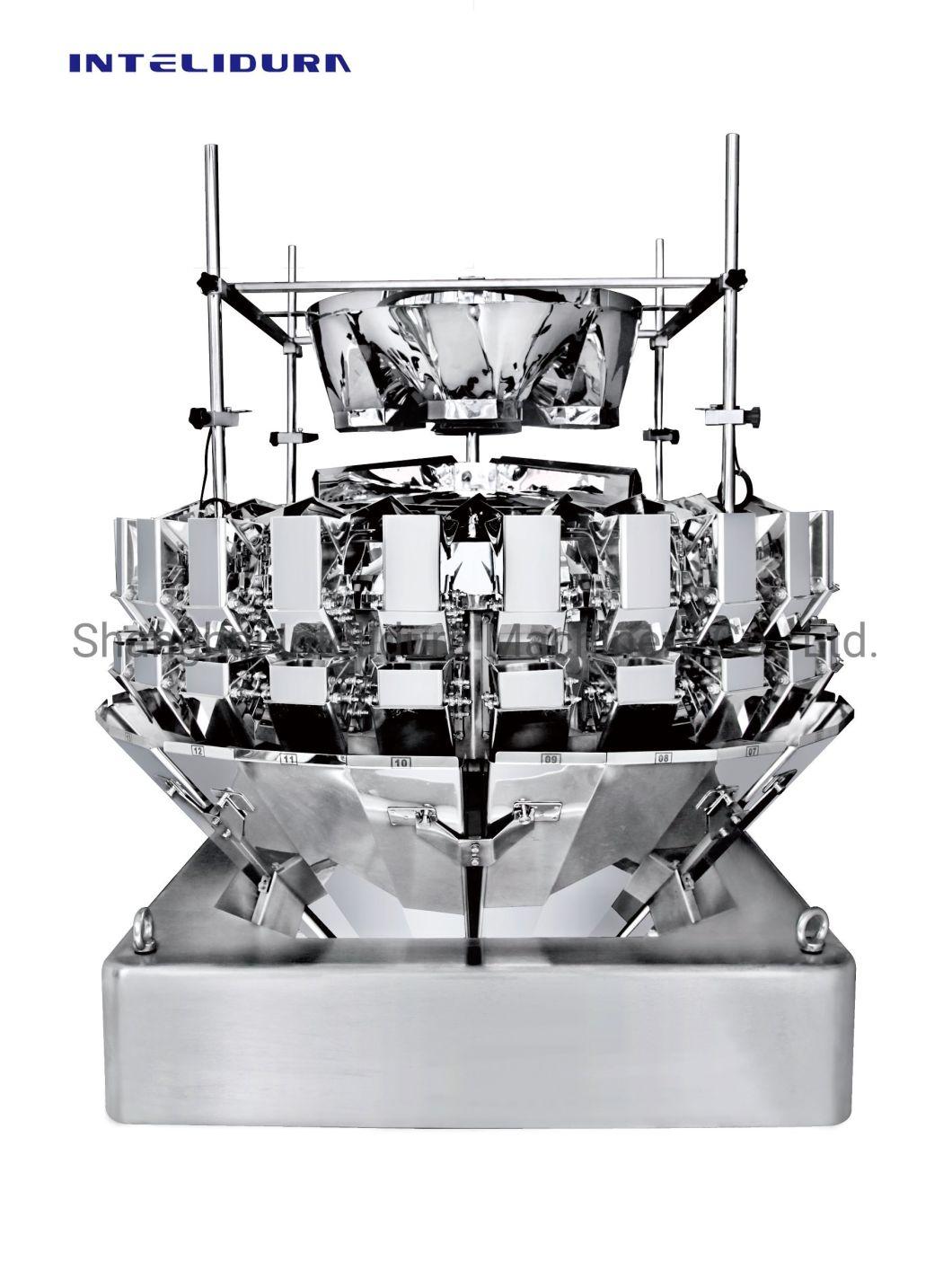

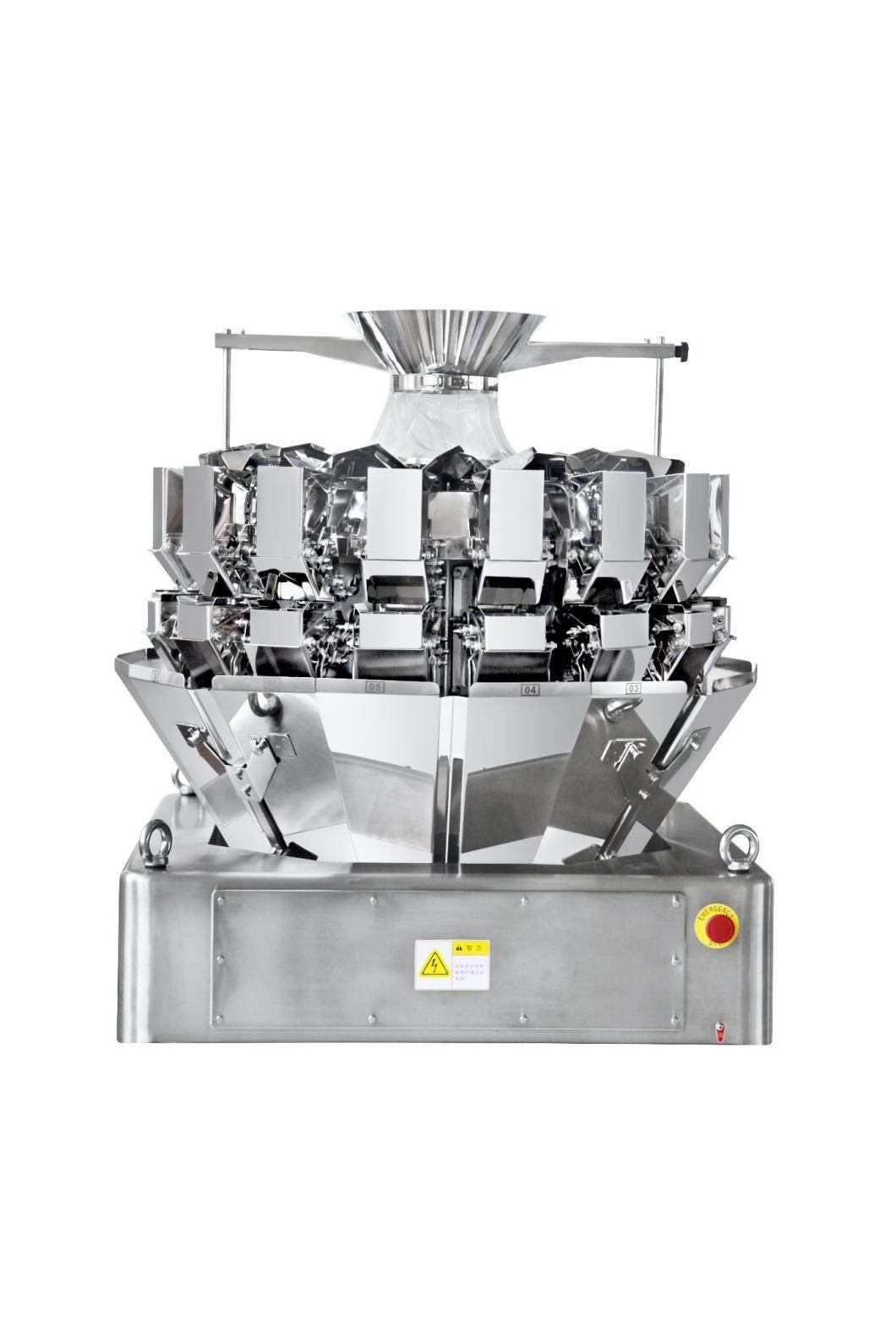

Advance Multi-head weigher Plus+

Application
It is widely used for weighing candy, chocolates, potato chips, plantain chips, seeds, nuts, jelly, Animal feed, petfood, Potato Chips, beans sticky products, frozen products etc.




Features

1. Multi language touch screen interface.
2. All stainless steel/aluminum made.
3. Auto-pause when there is a material shortage.
4. High speed mode up to 160 weights/Min, proportional mixing weighing technology
5. Help menu to understand each function and parameters.
6. High integrated modular design, technology CAN bus.
7. Modbus industry communicated protocol.

Configuration/Advantages

1. NMB or HBM ultra precision Load cells.
2. All machinery units are Inter-changeable, easy maintenance and reparation.
3. Resistant for Water spraying and humidity.
4. Auto vibration magnitude adjusting to adapt different products or weights.
5. Sequential hopper discharging to avoid congestions or blockage.
6. Overweight signal and Auto-rejection system.
7. Dysfunctional weighing head can be suspended to continue production.

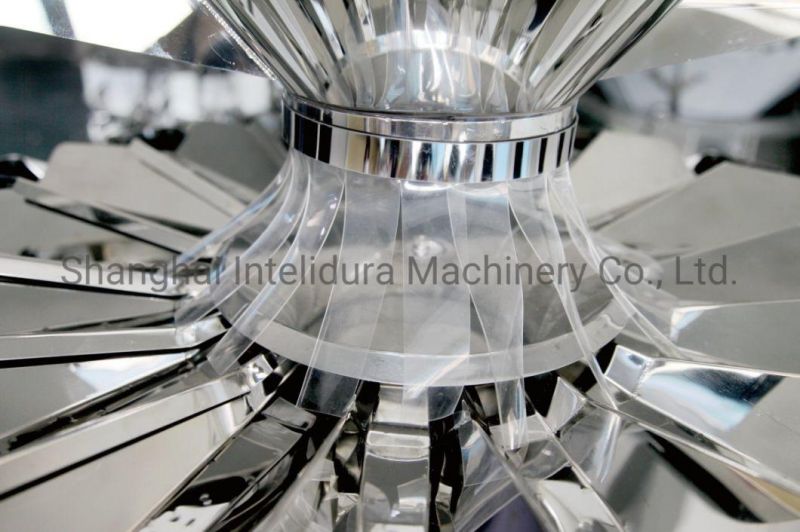

8. Corrugated hopper, SUS 316 optional.

Specification

Model	MHW-B16	MHW-B20
Application	High Speed High Precision	High speed High Precision
Weighing Range(g)	10-2000g	15-2000g
Precision(%)	0.5%	0.5%
Max. Speed(p/m)	160	180
Hopper Size(L)	1.6/2.5L	1.6/2.5L
Touch Screen	10''	10''
Drive type	Step Motor	Step Motor
Power Supply	220V/1PH/50/60HZ/16A	220V/1PH/50/60HZ/16A
Size Packaging(mm)	1250x1070x960mm	1950x1650x1620mm
Weight(kg)	850kg	850kg
