• Model NO.：XK315A1-1
• Application：Electronic Platform Scale and Weighing Scale
• Certification：OIML, Ce
• Customized：Customized
• Screen：6 Digit 20.2mm Red LED
• Material：Plastic Housing
• Power：6V 4ah Battery
• Transport Package：Standard Carton Packing
• Specification：256*165*130mm
• Trademark：CAISUN
• Origin：China
• HS Code：8423900010
• Production Capacity：30000PCS,Year

Basic Info.

Model NO. XK315A1-1 Application Electronic Platform Scale and Weighing Scale Certification OIML, Ce Customized Customized Screen 6 Digit 20.2mm Red LED Material Plastic Housing Power 6V 4ah Battery Transport Package Standard Carton Packing Specification 256*165*130mm Trademark CAISUN Origin China HS Code 8423900010 Production Capacity 30000PCS/Year

Product Description

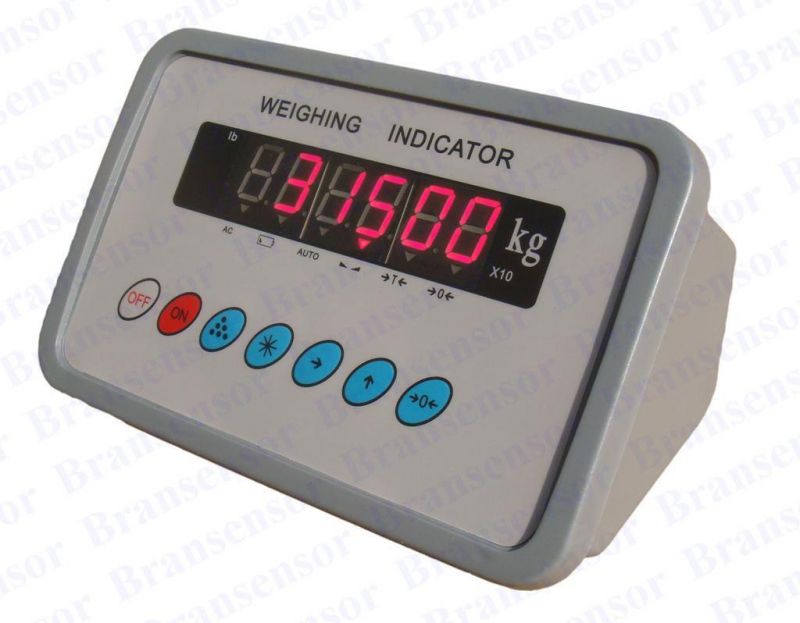

Plastic weight indicators for platform scales(XK315A1-1)


1.Basic information

Model:XK315A1-1
Plastic housing
6-digit 20.2mm red LED
Dimensions:256×165×130mm
Applications:Electronic platform scale, weighing scale, etc.
PACKAGE
Quantity:12 PCS per Carton
Dimension:42x60x60cm
Weight:About 22kg

2. Functions and Features

1.Operating temperature: 0ºC to 40ºC2.Storage temperature: -25ºC to 55ºC3.Relative humidity:≤ 85% non-condensing4.30 hours of full charge battery operation5.Drive up 4X350Ω or 8X700Ω load cell6.Manual/Automatic accumulation7.Programmable zero tracking8.Programmable digital filter9.Selectable kg and lb10.Accuracy can be increased ten times11.Animal weighing12.Hold function13.Counting function14.Printer 16. Power: 6V 4A battery

3. Optional

RS-232 serial interfaceRS485 serial interfaceTwo set point functionFour set point function4-20mA Analog current output function
Mechanical scale
Wireless connectionBlue tooth connection


This indicator could be used for weighing scales like electric platform scales, hopper scales or other weighing scales. We also could use it for force measurement and industry progress controlling. bransensor.en.made-in-china.com
