Anpt Smooth Plug Gauge
Xi'an TianRui Petroleum Machinery Equipment Co., Ltd.- Type：Smooth Plug Cauge
- Measurement Object：Outside Diameter
- Test Methods：Indicator Method
- Material：Steel
- Precision Gauge：Precision Gauge
- Certification：Mil-P-7105b
Base Info
- Model NO.：ANPT
- Usage：For Working, For Checking
- Shape：Hexagon
- Customized：Non-Customized
- Transport Package：Carton or Wooden Case
- Specification：1,2-14ANPT
- Trademark：TR Solids Control
- Origin：Xi′an, China
- HS Code：9017300000
- Production Capacity：10000PCS,Month
Description
Basic Info.
Model NO. ANPT Usage For Working, For Checking Shape Hexagon Customized Non-Customized Transport Package Carton or Wooden Case Specification 1/2-14ANPT Trademark TR Solids Control Origin Xi′an, China HS Code 9017300000 Production Capacity 10000PCS/MonthProduct Description

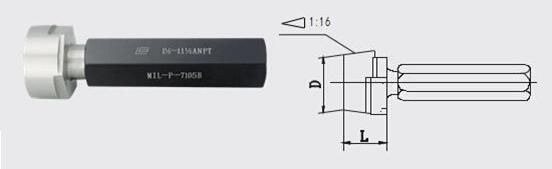

ANPT Smooth Plug Gauge
Features
The standard conforms to America Aeronautical National Form MIL-P-7105B
Specifications
Unit:mm
| Thread Size | D | L |
| 1/2-14ANPT | 17.636 | 17.5 |
| 3/4-14ANPT | 22.822 | 18.1 |
| 1-11 1/2ANPT | 28.822 | 21.5 |
| 1 1/4-11 1/2ANPT | 37.547 | 22.1 |
| 1 1/2-11 1/2ANPT | 43.616 | 22.1 |
| 2-11 1/2NPT | 55.629 | 22.5 |
