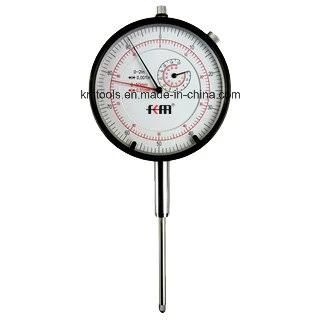

0~2in 0~50mm Dial Indicator Gauge Precision Measuring Tools
Deko Corporation- Type：Dial Indicator
- Material：Aluminum Alloy
- Measurement Object：Length
- Range：0~2in, 0~50mm
- Measure Method：Manual
- Precision Measuring Device：Precision Measuring Device
Base Info
- Model NO.：KM-112D-30-20
- Certification：DIN, GB, RoHS, ISO
- Customized：Customized
- Graduation：0.001in,0.01mm
- Diameter of Dial：3in
- Measurement：Inch,Metric
- Transport Package：ABS Box or Paper Box
- Specification：GB Standard
- Trademark：KM
- Origin：Shaanxi, China
- HS Code：9017300000
- Production Capacity：50000pieces,Month
Description
Basic Info.
Model NO. KM-112D-30-20 Certification DIN, GB, RoHS, ISO Customized Customized Graduation 0.001in/0.01mm Diameter of Dial 3in Measurement Inch/Metric Transport Package ABS Box or Paper Box Specification GB Standard Trademark KM Origin Shaanxi, China HS Code 9017300000 Production Capacity 50000pieces/MonthProduct Description
Feature:
1. Metric and Inch display
2. Jeweled bearing.
3. With adjustable tolerance marker and locking screw.
4. Easy to read and operate, high sensitivity and accuracy.
5. Various colors are available for dial and needle.
6. Flat back and with lug are optional.
Specification
| Order No. | Range | Graduation | Diameter of Dial |
| KM-112D-60-15 | 0~15mm/ 0~0.5in | 0.01mm/0.001in | 60mm |
| KM-112D-60-25 | 0~25mm/ 0~1in | 0.01mm/0.001in | 60mm |
| KM-112D-76-25 | 0~25mm/ 0~1in | 0.01mm/0.001in | 76mm |
| KM-112D-76-40 | 0~40mm/ 0~1.5in | 0.01mm/0.001in | 76mm |
| KM-112D-76-50 | 0~50mm/ 0~2in | 0.01mm/0.001in | 76mm |
| KM-112D-23-5 | 0~0.5in/ 0~12.7mm | 0.001in/0.01mm | 2.375in |
| KM-112D-23-10 | 0~1in/ 0~25mm | 0.001in/0.01mm | 2.375in |
| KM-112D-30-10 | 0~1in/ 0~25mm | 0.001in/0.01mm | 3in |
| KM-112D-30-15 | 0~1.5in/ 0~40mm | 0.001in/0.01mm | 3in |
| KM-112D-30-20 | 0~2in/ 0~50mm | 0.001in/0.01mm | 3in |
