• Model NO.：LP7510
• Application：Heavy Industrial
• Certification：CE
• Customized：Customized
• Display：6-Digit 20mm LED or LCD with Backlight
• Accuracy Class：OIML III
• Ad Convert：Σ-△, 24 Bit
• Input Signal Range：-5mv~20mv
• Resolving：Display 50000, Internal Code 2000000
• Minimum Resolution：1μV,E
• Supply Voltage：DC5V
• Sensor Interface：4-Wire (Optional: 6-Wire)
• Drive Capability：1~6 350Ω Analog Sensor(S)
• Power Supply：AC110~240V 50~60Hz or 6V,4ah Lead Acid Battery
• Operating Temperature：-10ºC ~ +40ºC
• Humidity：≤85%Rh
• Battery Life：30 Hours for Continuously Use
• Large Screen Interface：Serial RS232
• Communication Interface：RS232,RS485
• Transport Package：Carton
• Trademark：LOCOSC
• Origin：Zhejiang, China (Mainland)
• HS Code：9031809090
• Production Capacity：40000 Piece, Month

Basic Info.

Model NO. LP7510 Application Heavy Industrial Certification CE Customized Customized Display 6-Digit 20mm LED or LCD with Backlight Accuracy Class OIML III Ad Convert Σ-△, 24 Bit Input Signal Range -5mv~20mv Resolving Display 50000, Internal Code 2000000 Minimum Resolution 1μV/E Supply Voltage DC5V Sensor Interface 4-Wire (Optional: 6-Wire) Drive Capability 1~6 350Ω Analog Sensor(S) Power Supply AC110~240V 50~60Hz or 6V/4ah Lead Acid Battery Operating Temperature -10ºC ~ +40ºC Humidity ≤85%Rh Battery Life 30 Hours for Continuously Use Large Screen Interface Serial RS232 Communication Interface RS232/RS485 Transport Package Carton Trademark LOCOSC Origin Zhejiang, China (Mainland) HS Code 9031809090 Production Capacity 40000 Piece/ Month

Product Description

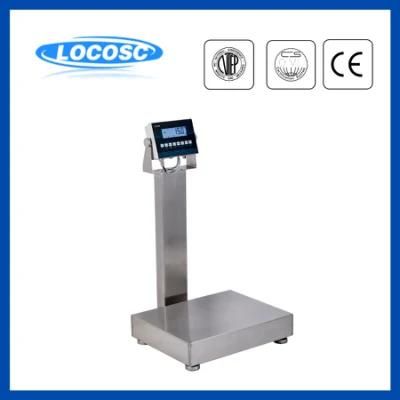

LOCOSC LP7510 Weighing Indicator

Packaging details: inner box, outside box and wood pallet.
Application for: bench scale, floor scale, hopper scale, pet scale, load cell, etc.

Technical parameters:

Display	6-digit 20mm LED digital tube or LCD with backlight
Accuracy class	OIML III
AD convert	Σ-△, 24 bit
Input signal range	-5mV~20mV
Resolving	Display 50000, internal code 2000000
Minimum resolution	1μV/e
Supply voltage	DC5V
Sensor interface	4-wire (optional: 6-wire)
Drive capability	1~6 350Ω analog sensor(s)
Power supply	AC110~240V 50~60Hz DC9V or built-in 6V/4Ah lead acid battery
Using environment	-10ºC ~ +40ºC, ≤85%RH
Battery life	30 hours for continuously use (with four 350Ω analog sensors)

Functions:
1. accumulate, counting, weighting, tare, zero, print;
2. animal weighing, hold, sorting, checking, limit alarming;
3. ten times greater precision;
4. under-voltage indication and under-power shutdown;
5. housing: carbon steel shot blasting (optional).

Options:
1. large screen interface: serial RS232;
2. communication interface: RS232/RS485, baud rate 600~9,600 (optional);
3. printing interface: shared with serial interface, can be connected to serial printer (optional: built-in/desktop/thermal printer);
4. relay output: four solid state relays (optional: sound and light alarm)
5. analog output: 4-20mA;
6. extensible interface: Modbus-RTU/TCP, Profibus-DP, USB, Ethernet, RF wireless module.
