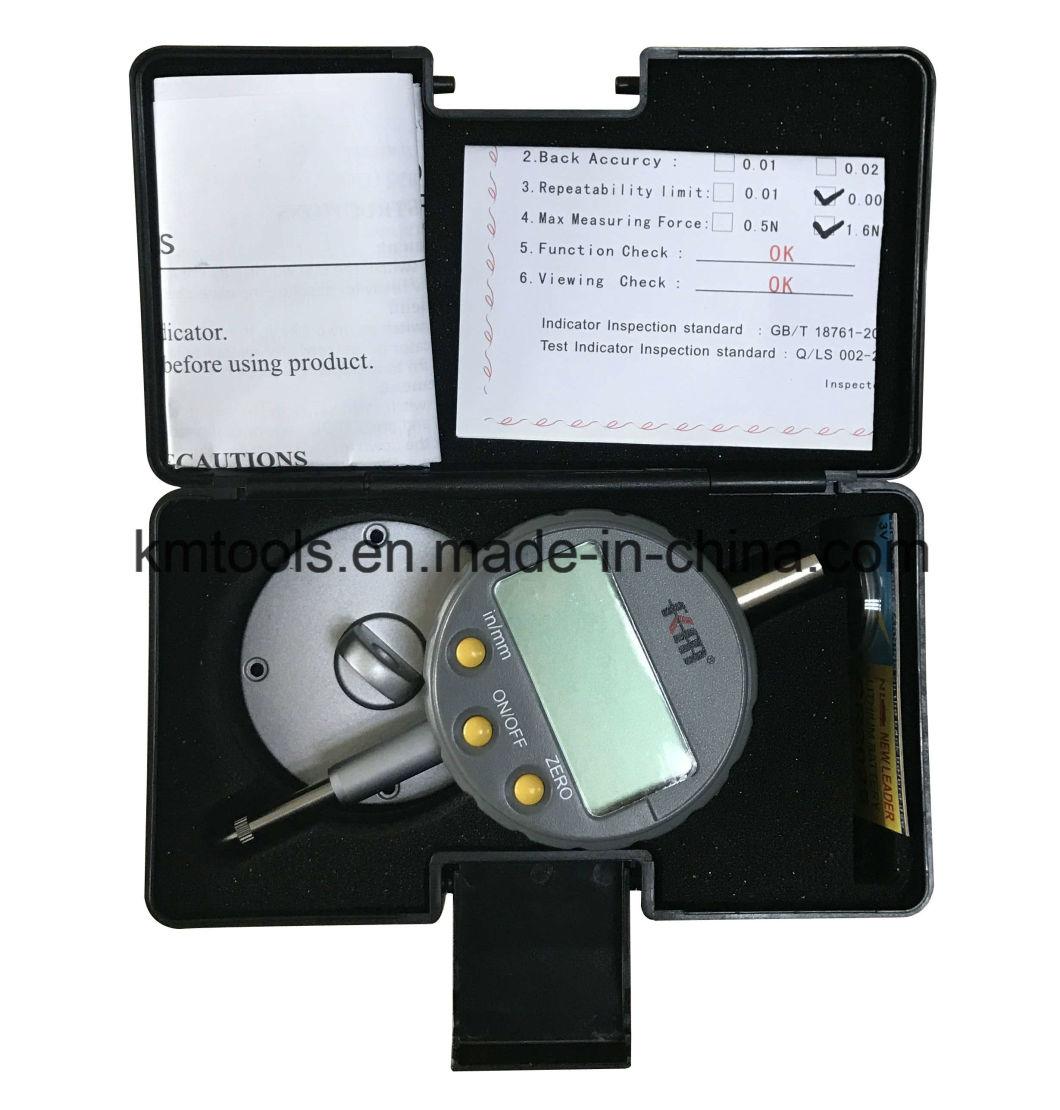

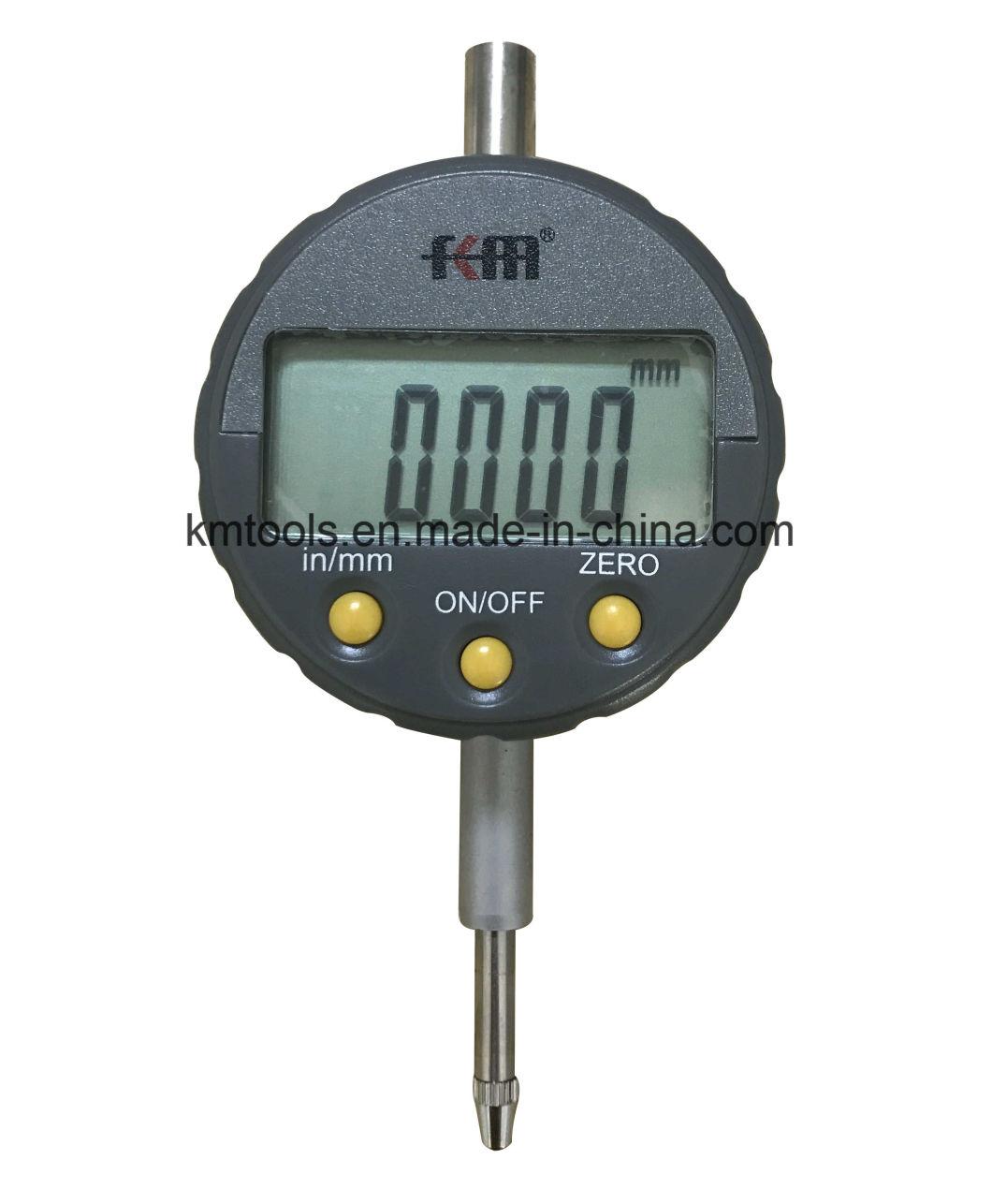

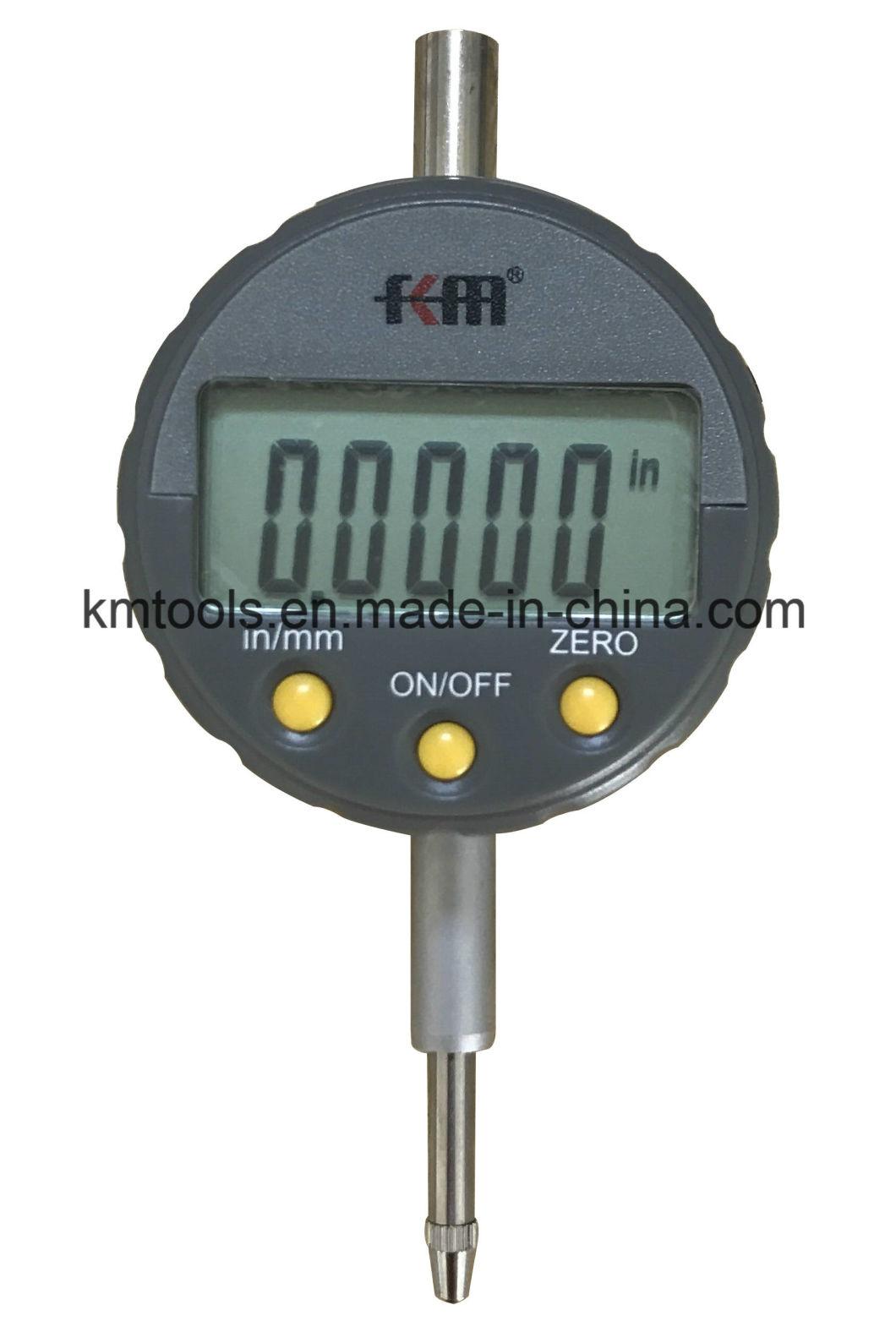

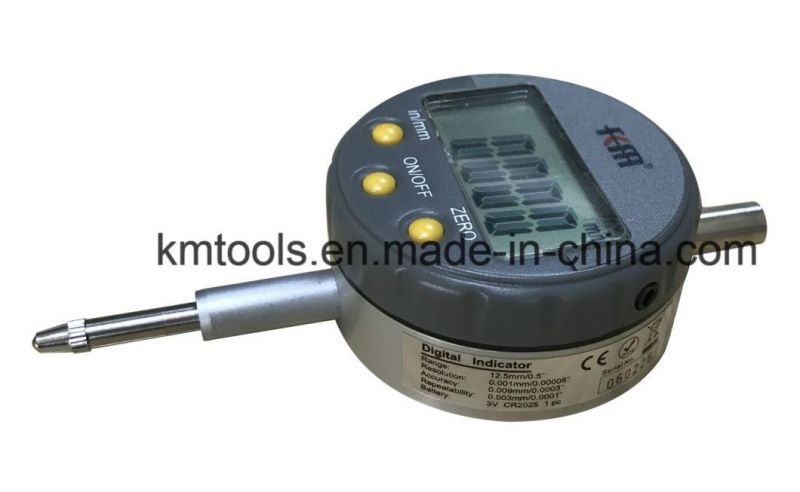

High Accuracy 0-12.7mm/0-0.5′′ Digital Micron Dial Indicator with Resolution 0.001mm/0.00005′′
Deko Corporation- Type：Digital Indicator
- Measurement Object：Length
- Range：0~12.7mm,0.5′′
- Resolution：0.001mm,0.00005′′
- Precision：0.009mm
- Measure Method：Manual
Base Info
- Model NO.：KM-233N-12.7
- Precision Measuring Device：Precision Measuring Device
- Certification：DIN, GB, RoHS, ISO
- Customized：Customized
- Max Measuring Force：1.6n
- Measurement：Metric,Inch
- Transport Package：ABS Box or Paper Box
- Specification：GB Standard
- Trademark：KM
- Origin：Shaanxi, China
- HS Code：9017300000
- Production Capacity：50000pieces,Month
Description
Basic Info.
Model NO. KM-233N-12.7 Precision Measuring Device Precision Measuring Device Certification DIN, GB, RoHS, ISO Customized Customized Max Measuring Force 1.6n Measurement Metric/Inch Transport Package ABS Box or Paper Box Specification GB Standard Trademark KM Origin Shaanxi, China HS Code 9017300000 Production Capacity 50000pieces/MonthProduct Description
Feature:
1.Large LCD for easy-reading.
2.in/mm:inch/metric conversion.
3.ON/OFF: power on and power off.
4.ZERO: zero setting.
5.Data output.
6.Fixed and moveable cap are optional.
7.Flat back and back with lug are optional.
8.Long battery life.
Specification:
| Order No. | Range | Resolution | Accuracy | Max Measuring Force | Function |
| KM-233F-12.7 | 0~12.7mm/0.5″ | 0.001mm/0.00005″ | ±0.005mm | 1.6N | in/mm,ON/OF,ZERO |
| KM-233N-12.7 | 0~12.7mm/0.5″ | 0.001mm/0.00005″ | ±0.009mm | 1.6N | in/mm,ON/OF,ZERO |
