• Model NO.：KM-2317-8
• Precision Measuring Device：Precision Measuring Device
• Certification：DIN, GB, RoHS, ISO
• Customized：Customized
• Measurement：Metric
• Transport Package：Aluminium Box
• Specification：GB Standard
• Trademark：KM
• Origin：Shaanxi, China
• HS Code：9017300000
• Production Capacity：50000pieces,Month

Basic Info.

Model NO. KM-2317-8 Precision Measuring Device Precision Measuring Device Certification DIN, GB, RoHS, ISO Customized Customized Measurement Metric Transport Package Aluminium Box Specification GB Standard Trademark KM Origin Shaanxi, China HS Code 9017300000 Production Capacity 50000pieces/Month

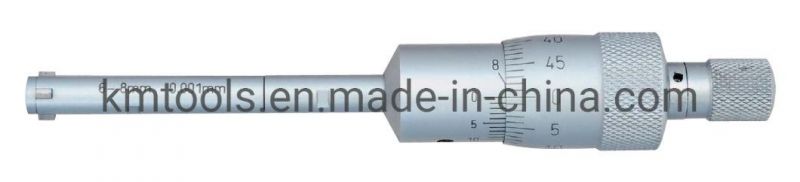

Product Description

Feature:
1. Graduation: 0.001mm(Metric);0.0001''(Inch).
2. Measurement can be taken closer to the bottom of the blind bore and can be taken into a deep hole with an extension rod.
3. Ratchet stop.
4. Range 6-12mm/0.275-0.5'': without carbide-tipped contact points.
5. Supplied in the storage case.


Specification:
Metric:

Order No.	Measuring Range	Accuracy	Graduation	Setting rings	L1	A	Extension rods
KM-2317-8	6~8mm	±0.004mm	0.001mm	φ6mm	53.5mm	0.5mm	100mm
KM-2317-10	8~10mm	±0.004mm	0.001mm	φ8mm	53.5mm	0.5mm	100mm
KM-2317-12	10~12mm	±0.004mm	0.001mm	φ10mm	53.5mm	0.5mm	100mm

Inch:

Order No.	Measuring Range	Accuracy	Graduation	Setting rings	L1	A	Extension rods
KM-2317-0.35	0.275~0.35″	±0.00016″	±0.0001″	φ0.275″	2.14″	0.02″	4″
KM-2317-0.425	0.35~0.425″	±0.00016″	±0.0001″	φ0.35″	2.14″	0.02″	4″
KM-2317-0.5	0.425~0.5″	±0.00016″	±0.0001″	φ0.5″	2.14″	0.02″	4″
