250-450mm Dial Bore Gauge with 0.01mm Graduation Dial Indicator Measuring Device
Deko Corporation- Type：Dial Bore Gauge
- Measurement Object：Inside Diameter
- Range：250-450mm
- Resolution：0.01mm
- Measure Method：Manual
- Precision Measuring Device：Precision Measuring Device
Base Info
- Model NO.：KM-DB450
- Certification：DIN, GB, RoHS, ISO
- Customized：Customized
- Measurement：Metric
- Measuring Depth：484mm
- Transport Package：Wooden Box
- Specification：GB Standard
- Trademark：KM
- Origin：Shaanxi, China
- HS Code：9017300000
- Production Capacity：50000pieces,Month
Description
Basic Info.
Model NO. KM-DB450 Certification DIN, GB, RoHS, ISO Customized Customized Measurement Metric Measuring Depth 484mm Transport Package Wooden Box Specification GB Standard Trademark KM Origin Shaanxi, China HS Code 9017300000 Production Capacity 50000pieces/MonthProduct Description
Feature:
1. For inside diameter measurement.
2. Stainless steel contacts hardened.

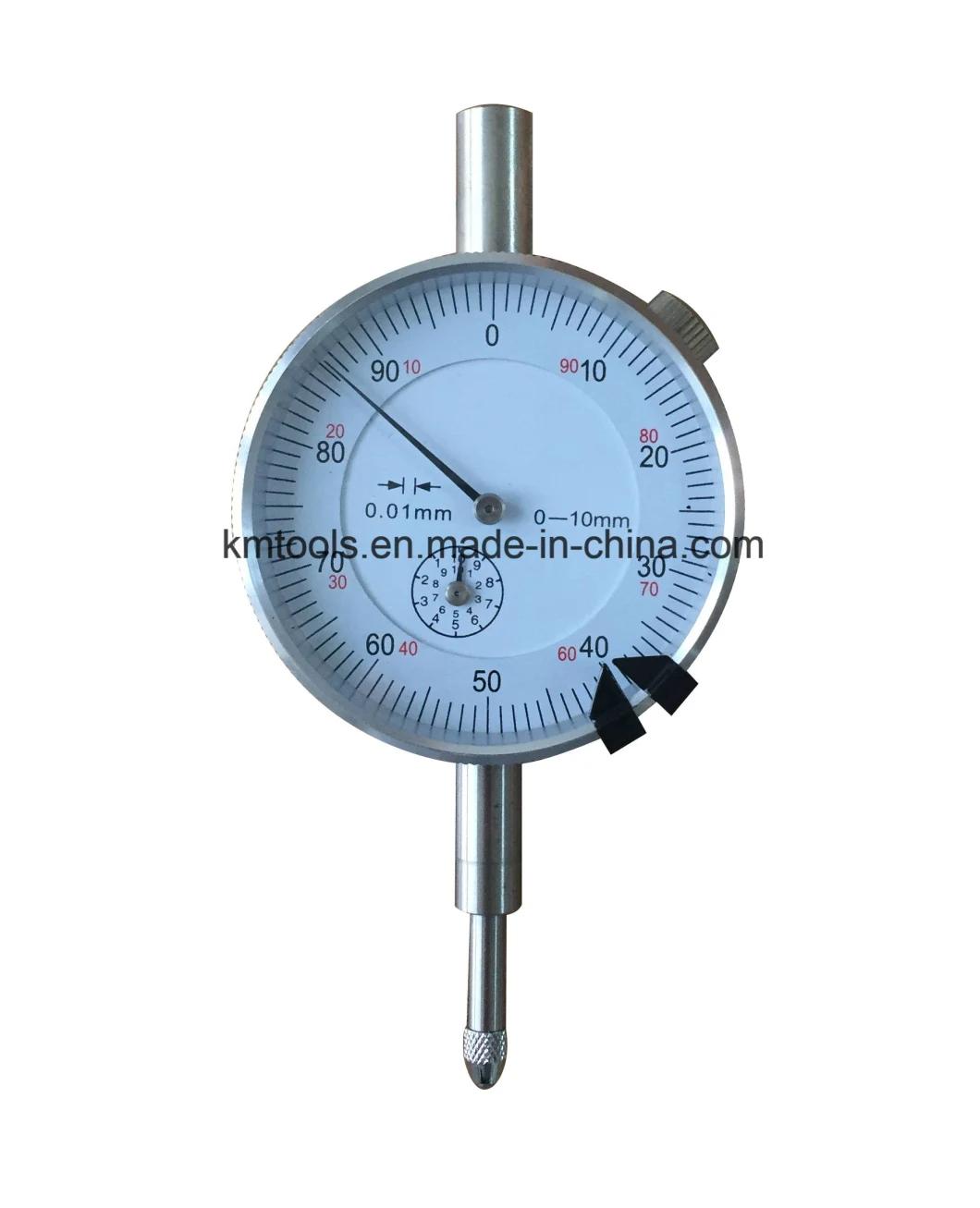

3. Supplied with 0.01mm or 0.001mm dial indicator.
Specification:
| Order No. | Measuring Range | Measuring Depth | Graduation |
| KM-DB10 | 6~10mm | 40mm | 0.01mm |
| KM-DB18 | 10~18mm | 100mm | 0.01mm |
| KM-DB35 | 18~35mm | 125mm | 0.01mm |
| KM-DB60 | 35~60mm | 137mm | 0.01mm |
| KM-DB150 | 50~150mm | 158mm | 0.01mm |
| KM-DB250 | 150~250mm | 366mm | 0.01mm |
| KM-DB450 | 250~450mm | 484mm | 0.01mm |
