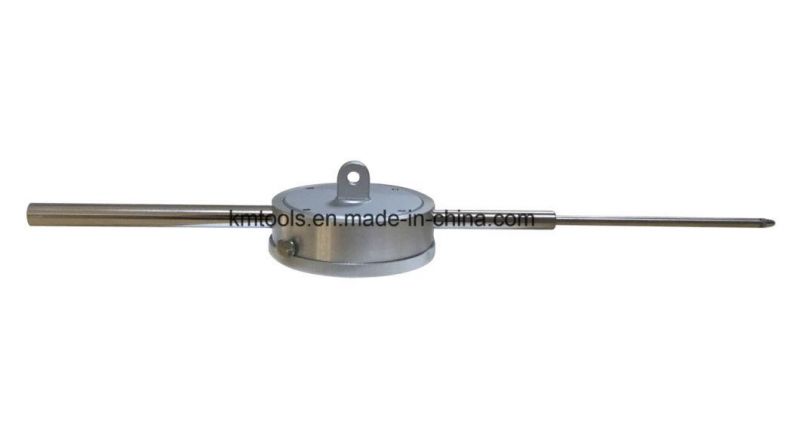

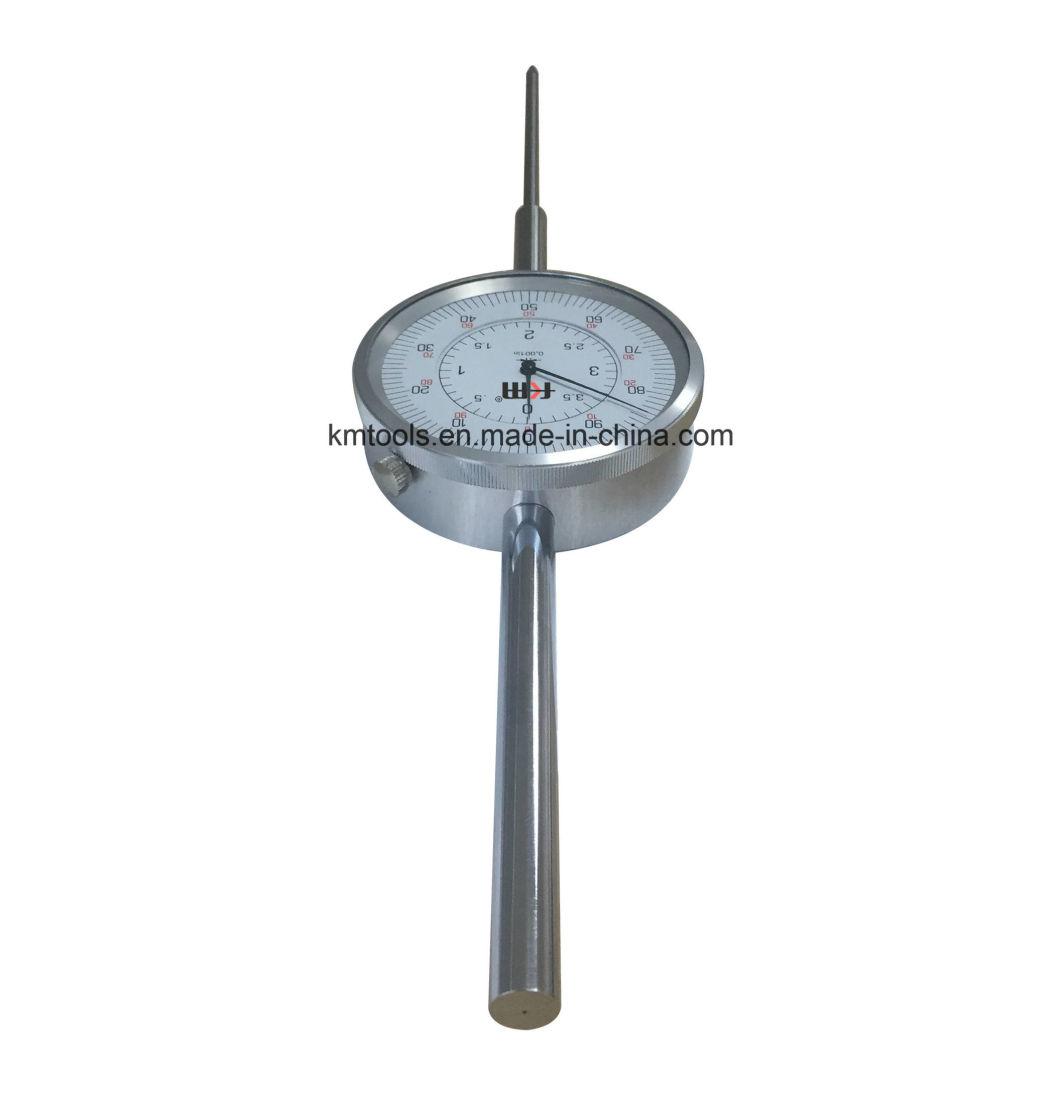

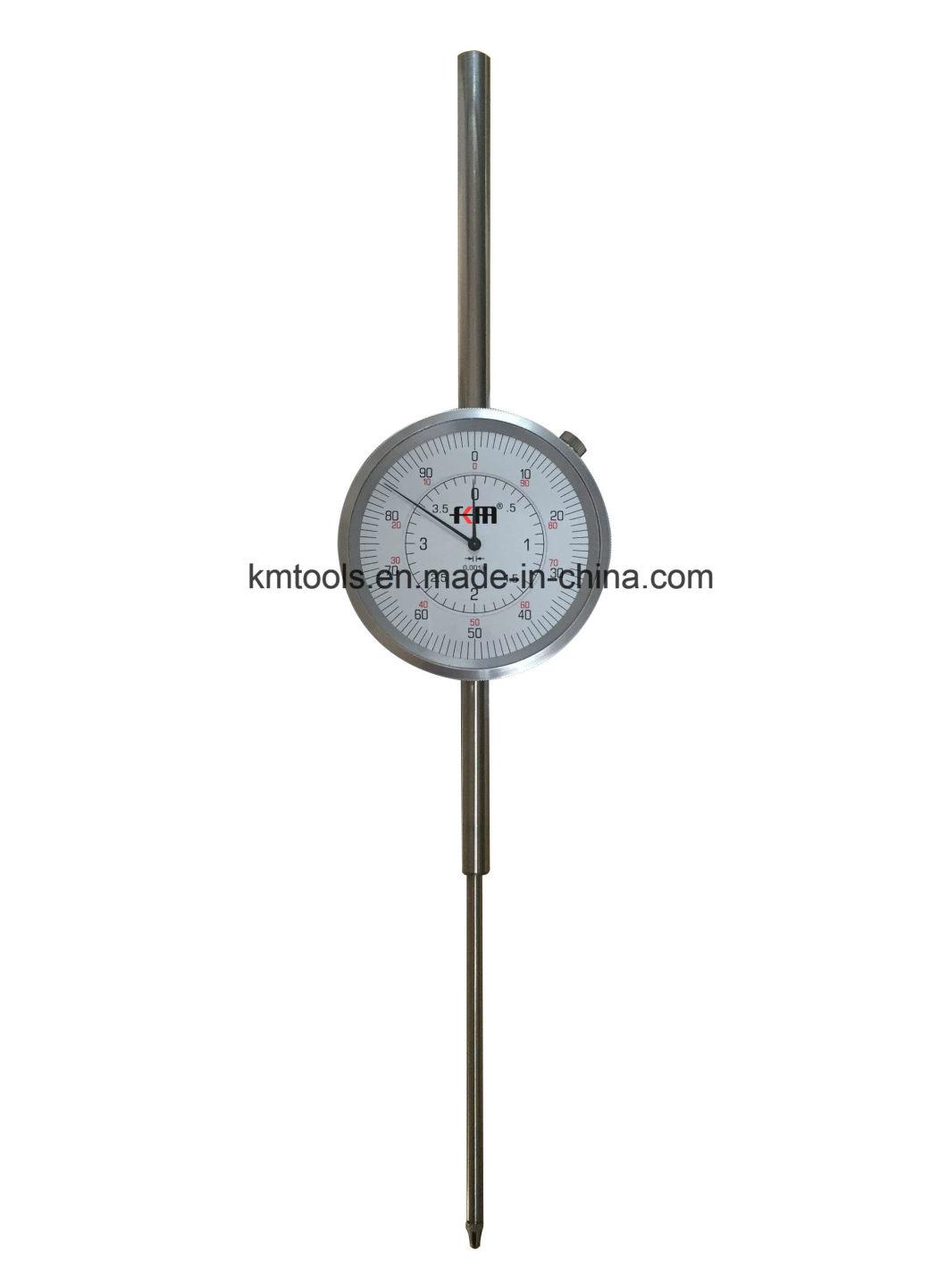

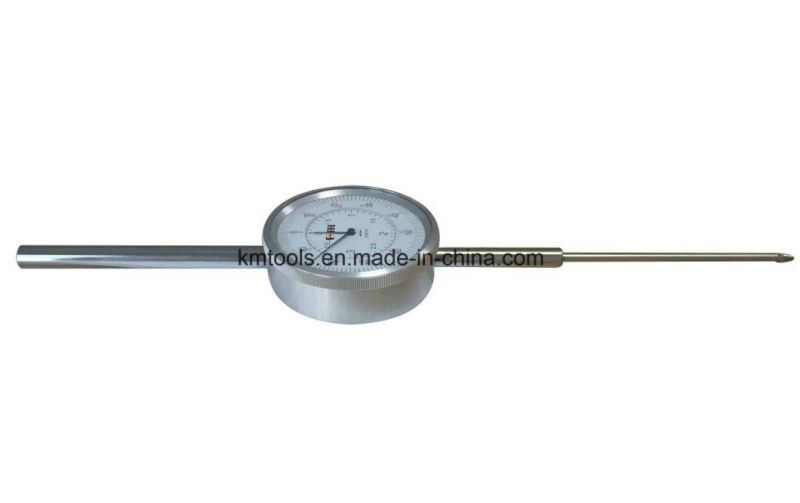

0-4′′ Inch Dial Indicator with Super Large Range with Double-Needle Coaxial
Deko Corporation- Type：Dial Indicator
- Material：Aluminum or Chromate-Plated Steel
- Measurement Object：Length
- Range：0-4′′
- Resolution：0.001′′
- Measure Method：Manual
Base Info
- Model NO.：KM-112-31-40
- Precision Measuring Device：Precision Measuring Device
- Certification：DIN, GB, RoHS, ISO
- Customized：Customized
- Measurement：Inch

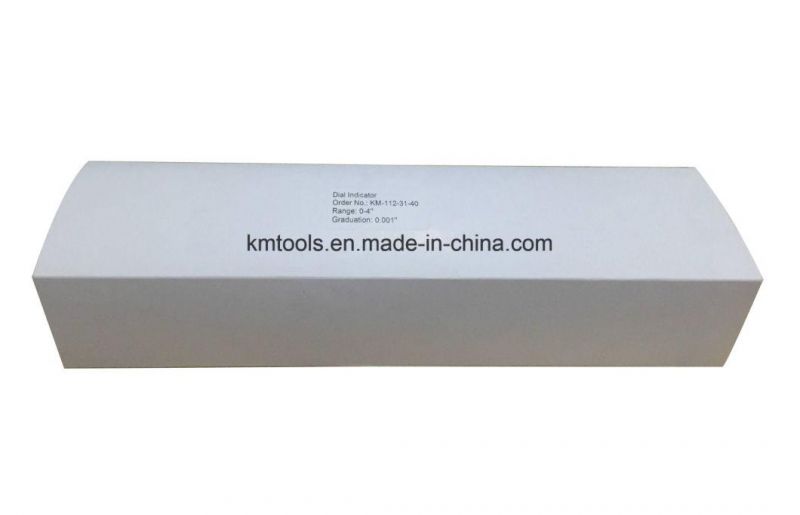

- Transport Package：Polyfoam+Paper Box
- Specification：ANSI Standard
- Trademark：KM
- Origin：Shaanxi, China
- HS Code：9017300000
- Production Capacity：50000pieces,Month
Description
Basic Info.
Model NO. KM-112-31-40 Precision Measuring Device Precision Measuring Device Certification DIN, GB, RoHS, ISO Customized Customized Measurement Inch Transport Package Polyfoam+Paper Box Specification ANSI Standard Trademark KM Origin Shaanxi, China HS Code 9017300000 Production Capacity 50000pieces/MonthProduct Description
Feature:
1. ANSI standard inch dial indicator.
2. With diameter of 3.15″.
3. Super scale double-needle coaxial indicators.
4.Jeweled bearing and shockproof.
5. In-out tolerance marker.
6. Easy to read and operate, high sensitivity and accuracy.
7. Made of aluminum or chromate-plated steel.
8. Flat back and back with lug are optional.
Specification:
| Order No. | Range | Graduation | Diameter of Dial |
| KM-112-31-30 | 0~3″ | 0.001″ | 3.15″ |
| KM-112-31-40 | 0~4″ | 0.001″ | 3.15″ |
