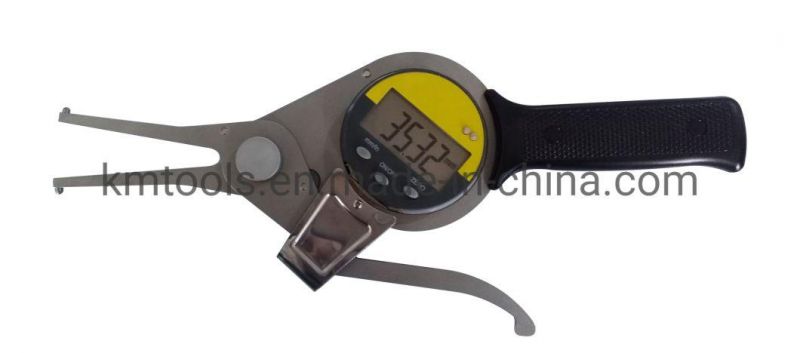

15-35mm/0.6-1.4′′ Digital Inside Caliper Gauge High Quality Tools
Deko Corporation- Type：Digital Inside Caliper
- Measurement Object：Inside Diameter
- Range：15~35mm,0.6~1.4′′
- Resolution：0.01mm,0.0005′′
- Measure Method：Manual
- Precision Measuring Device：Precision Measuring Device
Base Info
- Model NO.：KM-D501-35
- Certification：GB, RoHS, ISO
- Customized：Customized
- Measurement：Metric,Inch Conversion
- Transport Package：ABS Box
- Specification：GB Standard
- Trademark：KM
- Origin：Shaanxi, China
- HS Code：9017300000
- Production Capacity：50000pieces,Month
Description

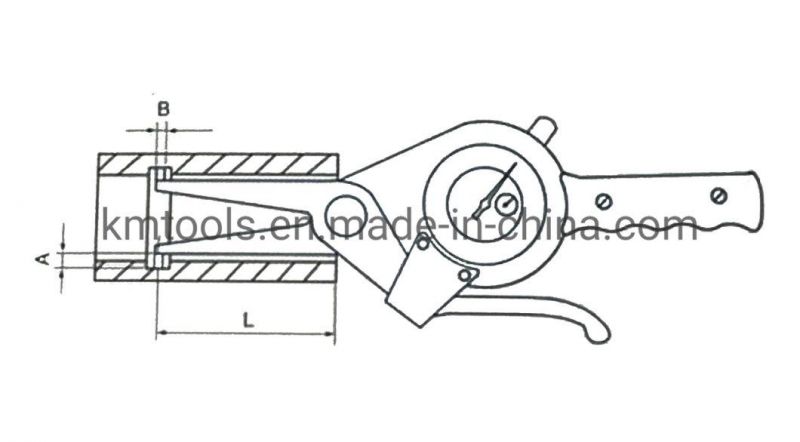

Outline DimensionA φB L KM-D501-35 15~35mm /0.6~1.4″ 0.01mm/0.0005″ 3 3 50 KM-D502-55 35~55mm /1.4~2.2″ 0.01mm/0.0005″ 6 3 80 KM-D503-75 55~75mm /2.2~3″ 0.01mm/0.0005″ 8 3 90 KM-D504-95 75~95mm /3~3.8″ 0.01mm/0.0005″ 8 3 100 KM-D505-115 95~115mm /3.8~4.5″ 0.01mm/0.0005″ 10 3.2 150 KM-D506-135 115~135mm/4.6~5.4″ 0.01mm/0.0005″ 10 3.2 150 KM-D507-155 135~155mm /5.4~6.2″ 0.01mm/0.0005″ 10 3.2 160 KM-D508-175 155~175mm /6.2~7″ 0.01mm/0.0005″ 10 3.2 160 KM-D509-195 175~195mm /7~7.8″ 0.01mm/0.0005″ 10 3.2 160 KM-D510-215 195~215mm /7.8~8.6″ 0.01mm/0.0005″ 10 3.2 160 KM-D511-235 215~235mm /8.6~9.4″ 0.01mm/0.0005″ 10 3.2 160 KM-D512-255 235~255mm /9.4~10″ 0.01mm/0.0005″ 10 3.2 160 KM-D513-275 255~275mm /10~11″ 0.01mm/0.0005″ 10 3.2 180 KM-D514-295 275~295mm /11~11.8″ 0.01mm/0.0005″ 10 3.2 200 KM-D515-315 295~315mm/11.8~12.6″ 0.01mm/0.0005″ 10 3.2 200
