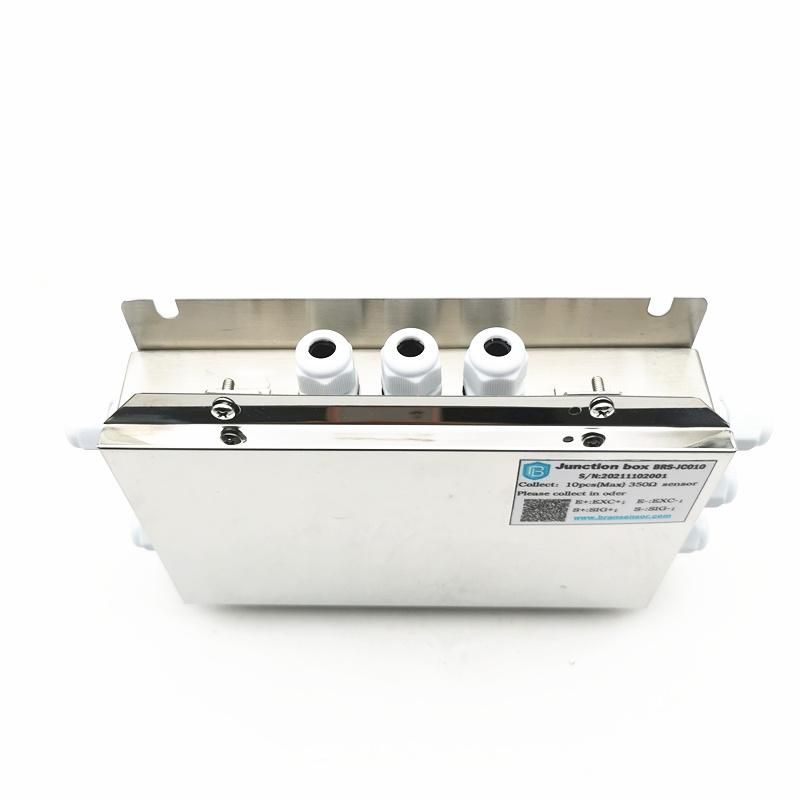

10 Channels Stainless Steel Load Cell Junction Box for Weighing Scale (BRS-JC010)

Hefei Brans Measuring And Controlling Technology Co., Ltd.
  • After-sales Service：1 Year Free Maintenance
  • Warranty：1 Year
  • Material：Stainless Steel
  • Potentiometer：USA Bourns
  • Channels：2, 4, 6, 8, 10, 12, 14 Channels
  • Application：Weighing Scales

Base Info

  • Model NO.：BRS-JC010
  • Terminals：Spring Clamp Screwless
  • Sealed Joints：Plastic Joints
  • Transport Package：Exporting Cartons
  • Specification：252*173*46mm
  • Trademark：BRANS
  • Origin：China
  • HS Code：8536300000
  • Production Capacity：100000pieces,Day

Description

NUMBERITEMDETAILS1Model bumberBRS-JC0102Connection versions2,4,6,8,10,12,143Material of housingStainless steel4Circuit Boardwith anti-fungal coating5PotentiometersBOURNS-3296, 100Kohms, 25-turn cermet6Connect TerminalsSpring clamp screwless, 12-28 AWG7Sealed JointsPlastic material joints8TrimmingIndividual cell, signal trim9EnclosureStainless Steel NEMA Type10Protection ClassIP6511Size252*173*46mm(L*W*H)12WarrantyOne-year limited warranty
10 Channels Stainless Steel Load Cell Junction Box for Weighing Scale (BRS-JC010)10 Channels Stainless Steel Load Cell Junction Box for Weighing Scale (BRS-JC010)10 Channels Stainless Steel Load Cell Junction Box for Weighing Scale (BRS-JC010)
10 Channels Stainless Steel Load Cell Junction Box for Weighing Scale (BRS-JC010)10 Channels Stainless Steel Load Cell Junction Box for Weighing Scale (BRS-JC010)10 Channels Stainless Steel Load Cell Junction Box for Weighing Scale (BRS-JC010)10 Channels Stainless Steel Load Cell Junction Box for Weighing Scale (BRS-JC010)10 Channels Stainless Steel Load Cell Junction Box for Weighing Scale (BRS-JC010)
5. Applications
Universal applications in weighing machinery, Process Weighing, weighing scales like Truck scales, tank and silo weighing systems, test & measurement and process automation and control sectors which Commonly used in multi-load cell weighing applications

6. Relevant industries: Weighing Machinery, Process Weighing, Process Automation + Control
   Test + Measurement

All of these junction boxes can be customized with Aluminium (A), polyester (P) or stainless steel (E) housing. Welcome to Brans and talk about it.
