• Scale Structure：Steel I Beam
• Operating Environment：Non Explosion Proof Loadometer
• Lightning Protection：With Lightning Protection
• Transport Package：Platforms Are Packed by Film or Color Strip
• Specification：30T
• Trademark：SIMEI
• Origin：China
• HS Code：9031809090
• Production Capacity：50000PCS,Year

Basic Info.

Scale Structure Steel I Beam Operating Environment Non Explosion Proof Loadometer Lightning Protection With Lightning Protection Transport Package Platforms Are Packed by Film or Color Strip Specification 30T Trademark SIMEI Origin China HS Code 9031809090 Production Capacity 50000PCS/Year

Product Description

Dimention Diagram :

A load cell is actually a device that converts a quality signal into a measurable electrical signal output.

The sensor should first consider the actual working environment of the sensor. This is the correct choice of the load cell, which is related to the normal operation of the sensor and its service life, and even the reliability and safety of the entire scale. On the basic concepts and evaluation methods of the main technical indicators of the load cell, there are qualitative differences between the old and new national standards.

Specification :

Accuracy class                                                                               C3

Rated output                                                               2.0±0.002mV/V

Temperature effect on zero                                       ±0.02%F. S/10ºC

Temperature effect on sensitity                                 ±0.02%F. S/10ºC

Creep (30 min)                                                                  ±0.02%F. S

Input resistance                                                                     760±10Ω

Output resistance                                                                     702±2Ω

Operating temperature range                                       -30ºC ~ +70ºC

Safe overload                                                                      150%F. S

Destructive load                                                                   300%F. S

Excitation recommend                                         4~12VDC, max 15VDC

Construction                                                                         Alloy steel

Protection class                                                                            IP68

Cable length                                                                                  20m





APLLICATION








Manufacture of us

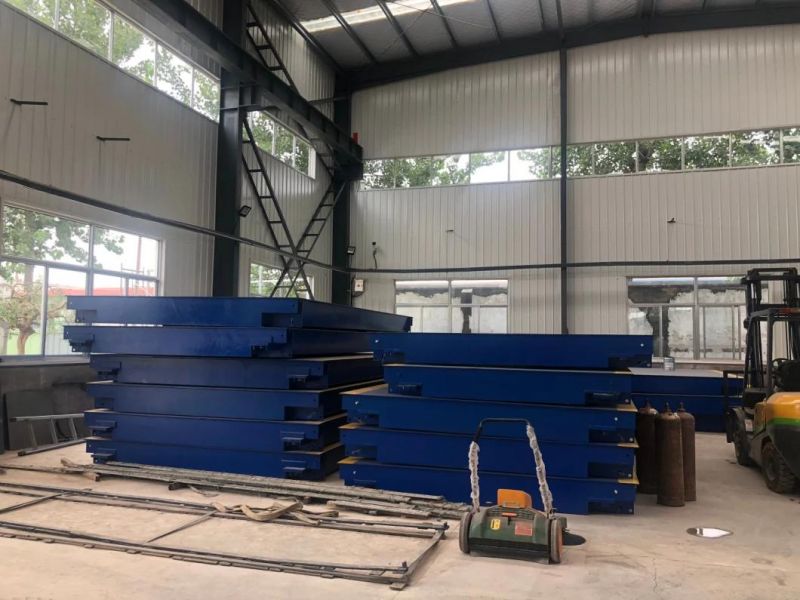

Qingdao SiMei Weighing Apparatus co.,Ltd  Which is a company specialized in weighing equipment for Scientific  research, development and production.according to ISO9001 quality system management, we equipped with advanced facilities., is located in beautiful city Qingdao, China. The company was founded in 2007, since its establishment, adhere to the truth-seeking innovation, excellence enterprise philosophy, after years of continuous accumulation and development, has become one of the domestic scale of professional weighing

We have established mature scales and distributing agents all over the country, and all the salesman and distributors have the ability of service and technical support. They are ready to provide the customer before and after sales service. Currently,our products have been exported to several  countries, and well sold in European, American, Asian, and African countries. The products are fully appraised by the customers.

FAQ

1.Do you calibrate scale before shipment?
Yes,we already calibrate scale and testing all part befor shipment,then it can use working directly after install.
2.How to install scale?
The detail install manual is prepared together with scale,
Also technical engineer can be visiting supervise install if you required.
3.Who should i contact for service(repair,calibration)?
You can contact through sales to feedback to keda technical center department to get prompt service for repair and calibration.
4.Warranty
One years for truck scale/weighbridge platform structure and component part.
5.Delivery Term
We accept EXW,FOB,CFR and CIF,etc.
6.Payment
1).T/T
2).L/C at sight
3).MIC Trade Assurance
4).Western Union

Why you choose us?  ----  IMPORTANT!!
 1. PROFESSIONAL EXPERIENCE
 2. WE PROVIDE TO YOU BEST QUALITY GUANRANTEED WITH COMPETITIVE PRICE
 3. PROFESSIONAL ADVANCED TECHNOLOGY FOR SCALES
4.100%HIGH PRECISION DETECTION BEFORE DELIVERY TO YOU
5.SPRAY 2 TIMES PAINT, ENVIRONMENTAL PROTECTION, AETHETIC DESIGN
6.SPECIAL SERVICE AND IN-TIME SERVICE BEFORE AND AFTER SALES
7.WARRANTY FOR ALL THE PROCUCTS AS LEAST 1 YEARS

For more details,please kindly contact us freely !
