• Model NO.：KM-2106-175
• Precision Measuring Device：Precision Measuring Device
• Certification：DIN, GB, RoHS, ISO
• Customized：Customized
• Measurement：Metric
• Transport Package：Wood Box
• Specification：GB Standard
• Trademark：KM
• Origin：Shaanxi, China
• HS Code：9017300000
• Production Capacity：50000pieces,Month

Basic Info.

Model NO. KM-2106-175 Precision Measuring Device Precision Measuring Device Certification DIN, GB, RoHS, ISO Customized Customized Measurement Metric Transport Package Wood Box Specification GB Standard Trademark KM Origin Shaanxi, China HS Code 9017300000 Production Capacity 50000pieces/Month

Product Description

Feature:
1.Graduation:0.01mm(Metric);0.0001″(Inch).
2.Carbide measuring faces.
3.Painted and fine cast frame.
4.Ratchet stop.
5.Quick and easy adjustment.

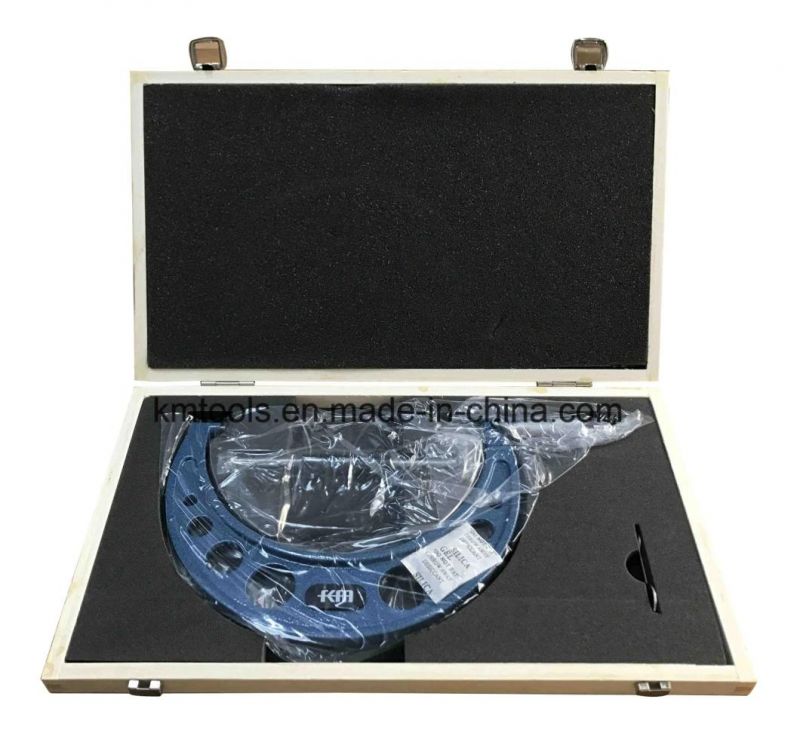

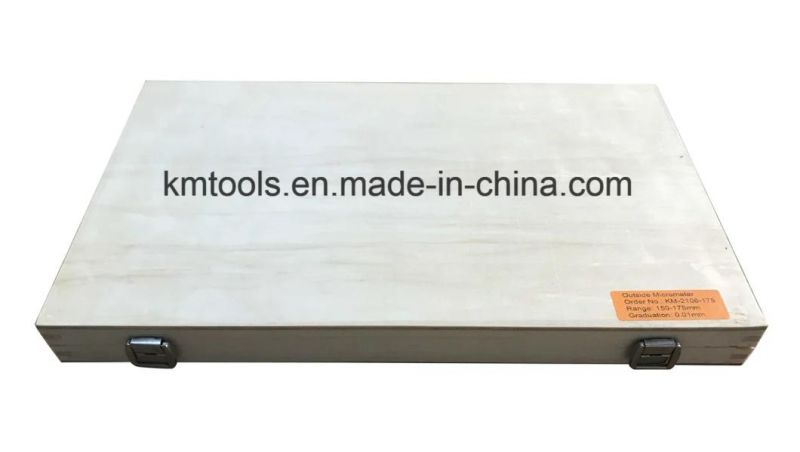

6.Supplied in the storage case.

Specification:
Metric:

Order No.	Measuring Range	Accuracy	Graduation
KM-2106-25	0~25mm	±0.004mm	0.01mm
KM-2106-50	25~50mm	±0.004mm	0.01mm
KM-2106-75	50~75mm	±0.005mm	0.01mm
KM-2106-100	75~100mm	±0.005mm	0.01mm
KM-2106-125	100~125mm	±0.006mm	0.01mm
KM-2106-150	125~150mm	±0.006mm	0.01mm
KM-2106-175	150~175mm	±0.007mm	0.01mm
KM-2106-200	175~200mm	±0.007mm	0.01mm
KM-2106-225	200~225mm	±0.008mm	0.01mm
KM-2106-250	225~250mm	±0.008mm	0.01mm
KM-2106-275	250~275mm	±0.009mm	0.01mm
KM-2106-300	275~300mm	±0.009mm	0.01mm

Inch:

Order No.	Measuring Range	Accuracy	Graduation
KM-2106-1	0-1″	±0.00016″	0.0001″
KM-2106-2	1-2″	±0.00016″	0.0001″
KM-2106-3	2-3″	±0.0002″	0.0001″
KM-2106-4	3-4″	±0.0002″	0.0001″
KM-2106-5	4-5″	±0.00024″	0.0001″
KM-2106-6	5-6″	±0.00024″	0.0001″
KM-2106-7	6-7″	±0.00028″	0.0001″
KM-2106-8	7-8″	±0.00028″	0.0001″
KM-2106-9	8-9″	±0.00032″	0.0001″
KM-2106-10	9-10″	±0.00032″	0.0001″
KM-2106-11	10-11″	±0.00036″	0.0001″
KM-2106-12	11-12″	±0.00036″	0.0001″
