• Model NO.：ME-IM-DIAL-CENT
• Accuracy：A
• Precision Measuring Device：Precision Measuring Device
• Customized：Non-Customized
• Transport Package：Box
• Specification：Weight (grams): 734.0000
• Trademark：Machine-DRO
• Origin：China

Basic Info.

Model NO. ME-IM-DIAL-CENT Accuracy A Precision Measuring Device Precision Measuring Device Customized Non-Customized Transport Package Box Specification Weight (grams): 734.0000 Trademark Machine-DRO Origin China

Product Description

Key Features

• Key Features

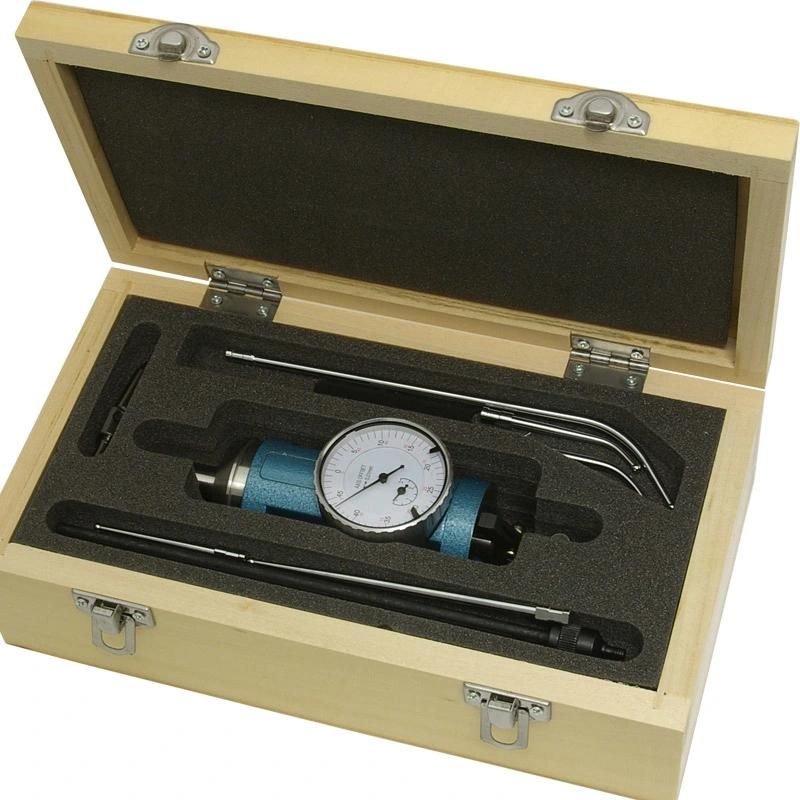

• Dial co-axial Centering Alignment Indicator Imperial
• Locate Workpiece Centre - Simple method of centering a workpiece, fixture or assembly
• Easy Operation - The outer body and indicator dial remains stationary while the center spindle with the feeler attached rotates. This allows the indicator dial to always face the operator
• Internal and External - Find the centre on internal or external diameters
• Hand or Motor Spindle Driven - The machine spindle can either be rotated by hand or using the motor up to a maximum of 500 rpm.
• Large Diameter Working Area - The combination of straight and offset feelers in different lengths allows a large work area to be covered
• Imperial Dial - The dial has a imperial scale used as a reference, when finding the center
• Included with the CO-AX Centering gauge - Main body with indicator dial, 3 off straight feelers, 3 off curved feelers, center locating feeler, spanner, retaining arm, storage case and instructions
• Dial diameter - 1 5/8 inch (40 mm)
• Body length - 4 5/8 inch (120 mm)
• Spindle length - 12/16 inch (20 mm)
• Spindle Diameter - 3/8 inch (9.53mm)
• Straight feeler - 1 5/8inch (40mm), 3 9/16inch (90 mm),5 11/16inch (144 mm)
• Curved feeler - 1 11/16inch (42 mm), 3 5/8inch (92mm), 5 5/8inch (142 mm)
•

  Please Note - The Images of the Metric unit is for example only, this is an Imperial Unit (The colour may also differ)
