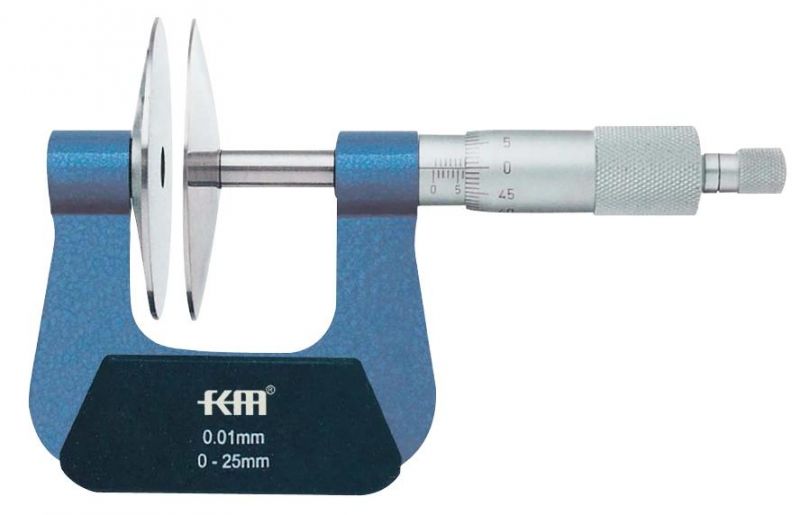

• Model NO.：KM-2257-25
• Precision Measuring Device：Precision Measuring Device
• Certification：DIN, GB, RoHS, ISO
• Customized：Customized
• Measurement：Metric
• Transport Package：ABS Box
• Specification：GB Standard
• Trademark：KM
• Origin：Shaanxi, China
• HS Code：9017300000
• Production Capacity：50000pieces,Month

Basic Info.

Model NO. KM-2257-25 Precision Measuring Device Precision Measuring Device Certification DIN, GB, RoHS, ISO Customized Customized Measurement Metric Transport Package ABS Box Specification GB Standard Trademark KM Origin Shaanxi, China HS Code 9017300000 Production Capacity 50000pieces/Month

Product Description

Feature:
1.Graduation:0.01mm(Metric);0.001″(Inch)..
2.Ratchet stop.
3.Non-rotating spindle.
4.Large disk measuring faces.
5.Disk diameter:60mm
6.Supplied in the storage case.

Specification:
Metric:

Order No.	Measuring Range	Accuracy	Graduation
KM-2257-25	0~25mm	±0.008mm	0.01mm
KM-2257-50	25~50mm	±0.008mm	0.01mm
KM-2257-75	50~75mm	±0.010mm	0.01mm
KM-2257-100	75~100mm	±0.010mm	0.01mm

Inch:

Order No.	Measuring Range	Accuracy	Graduation
KM-2257-1	0~1″	±0.00032″	0.001″
KM-2257-2	1~2″	±0.00032″	0.001″
KM-2257-3	2~3″	±0.00040″	0.001″
KM-2257-4	3~4″	±0.00040″	0.001″
