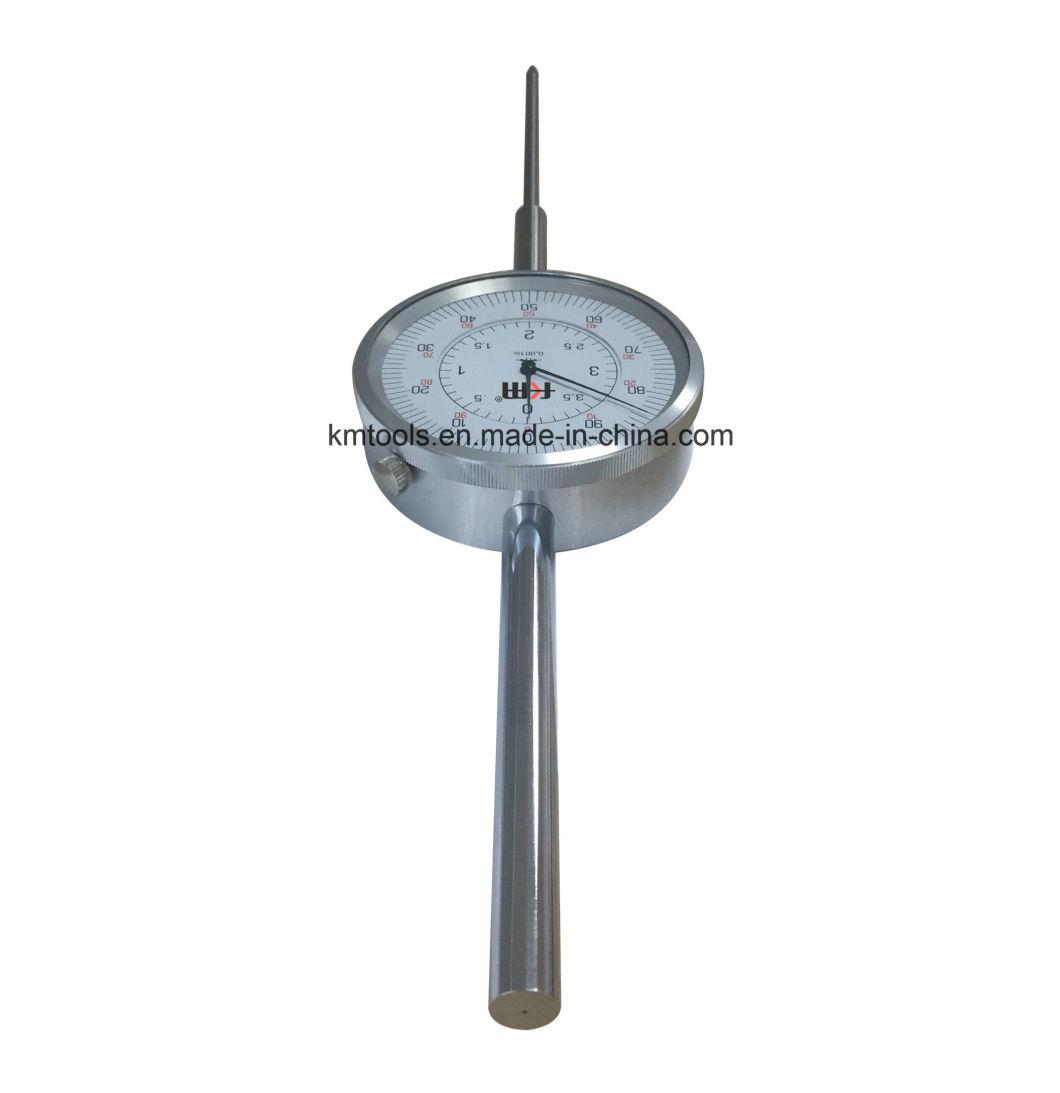

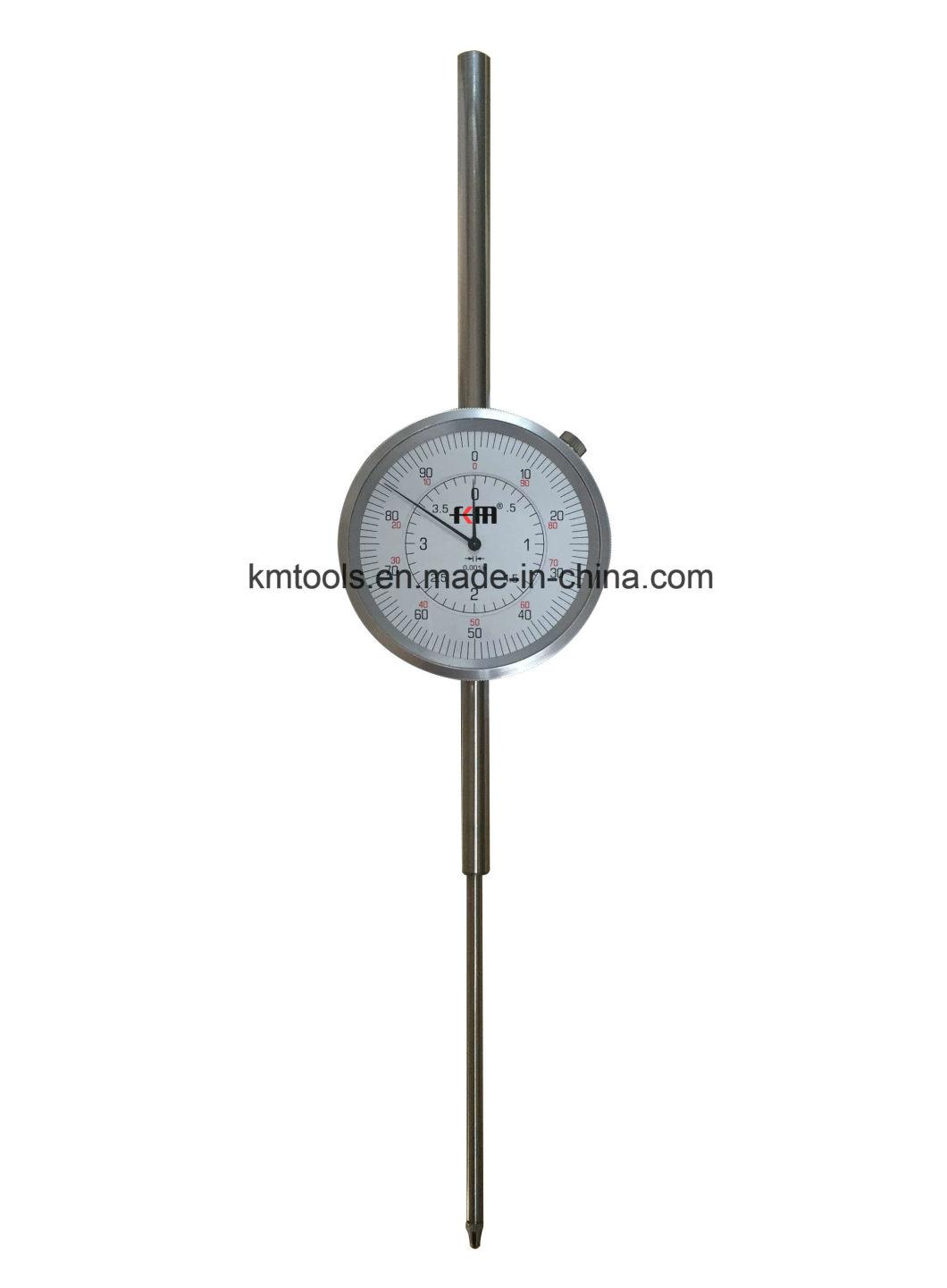

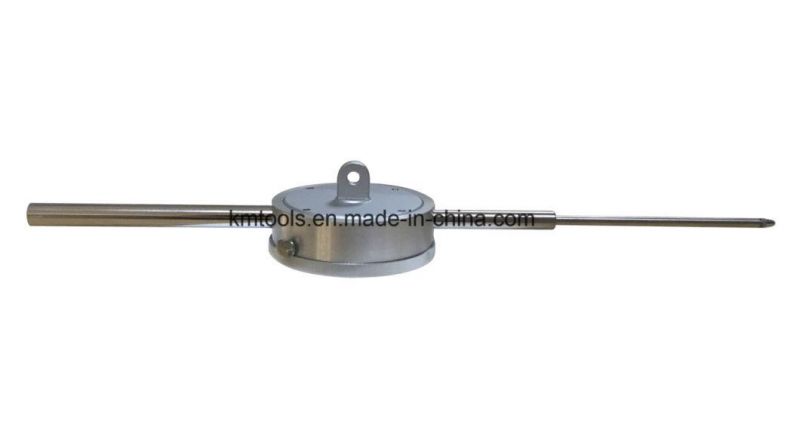

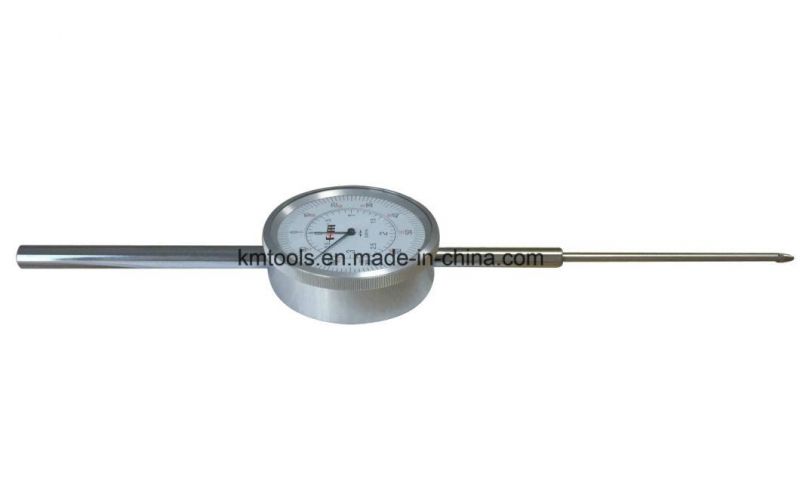

Custom Logo Dial Gauge Indicator High Quality Inch Dial Indicator
Deko Corporation- Type:Dial Indicator
- Material:Aluminum or Chromate-Plated Steel
- Measurement Object:Length
- Range:0-4′′
- Resolution:0.001′′
- Measure Method:Manual
Base Info
- Model NO.:KM-112-31-40
- Precision Measuring Device:Precision Measuring Device
- Certification:DIN, GB, RoHS, ISO
- Customized:Customized
- Measurement:Inch
- Transport Package:Paper Box
- Specification:GB Standard
- Trademark:KM
- Origin:Shaanxi, China
- HS Code:9017300000
- Production Capacity:50000pieces,Month
Description
Basic Info.
Model NO. KM-112-31-40 Precision Measuring Device Precision Measuring Device Certification DIN, GB, RoHS, ISO Customized Customized Measurement Inch Transport Package Paper Box Specification GB Standard Trademark KM Origin Shaanxi, China HS Code 9017300000 Production Capacity 50000pieces/MonthProduct Description
Feature:
1. ANSI standard inch dial indicator.
2. With diameter of 3.15″.
3. Super scale double-needle coaxial indicators.
4.Jeweled bearing and shockproof.
5. In-out tolerance marker.
6. Easy to read and operate, high sensitivity and accuracy.
7. Made of aluminum or chromate-plated steel.
8. Flat back and back with lug are optional.
Specification:
Order No. | Range | Graduation | Diameter of Dial |
KM-112-31-30 | 0~3″ | 0.001″ | 3.15″ |
KM-112-31-40 | 0~4″ | 0.001″ | 3.15″ |
