Angle Tilt Sensor/Inclinometer with Remote Display- Pendulum Type
Hangzhou Allendale Limited- Type:Angle Tilt Inclinometer
- Measurement Object:Tilt
- Range:0-360 Degrees
- Resolution:+,-0.1 Degrees
- Precision:+,- 0.2 Degrees
- Measure Method:Automatic
Base Info
- Model NO.:ME-AN-REM-PEN
- Accuracy:A
- Precision Measuring Device:Precision Measuring Device
- Customized:Non-Customized
- Transport Package:Box
- Specification:Weight (grams): 307.0000
- Trademark:Machine-DRO
- Origin:China
Description
https://allendalechina.en.made-in-china.com/company-Hangzhou-Allendale-Limited.html
Key Features
Key Features

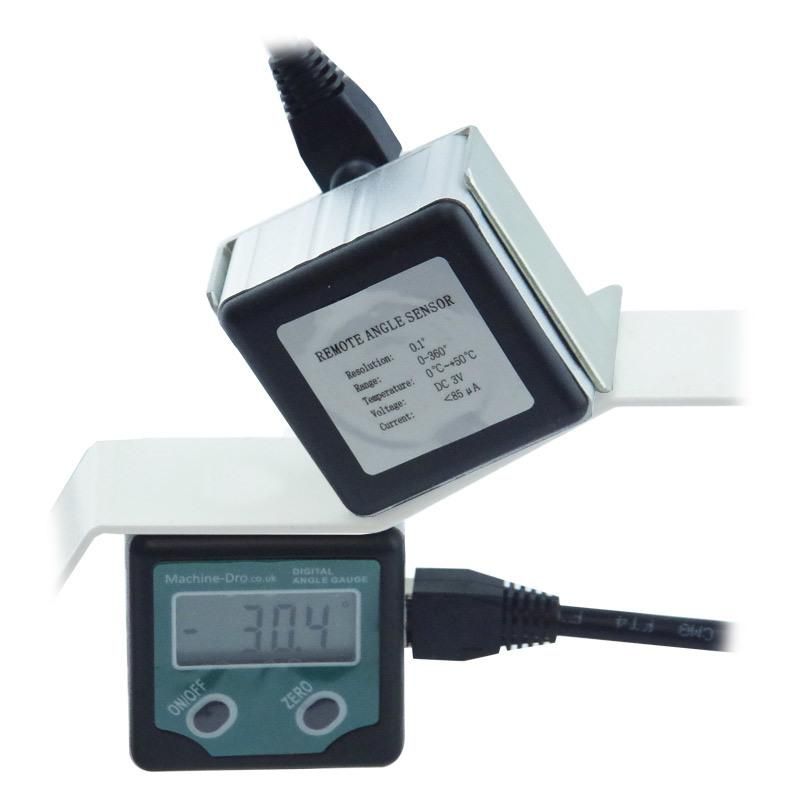

- Angle Tilt Sensor/Inclinometer with Remote Display - Pendulum type.
- Tilt/incline angle sensor with a remote LCD display with a resolution of 0.1 degrees.
- As the angle sensor is rotated a weighted internal pendulum, provides a reference and remote display calculates the angle.

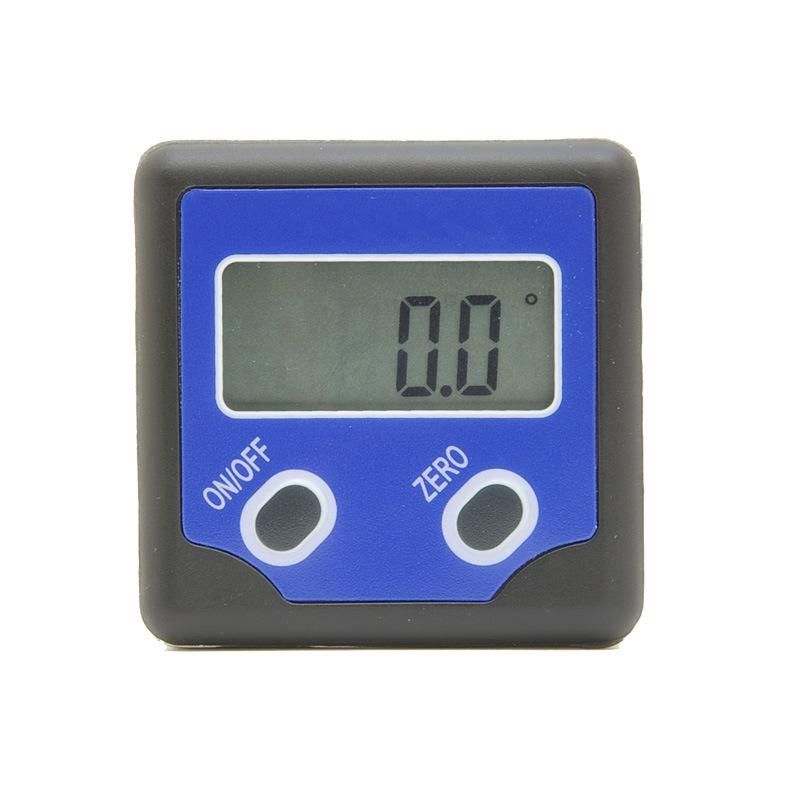

- The remote display has the on/off button and a zero function button allowing the display to be set to zero degrees in any position.
- The gauge is powered by a standard CR2032 battery located behind a twist lock compartment on the rear of the display.

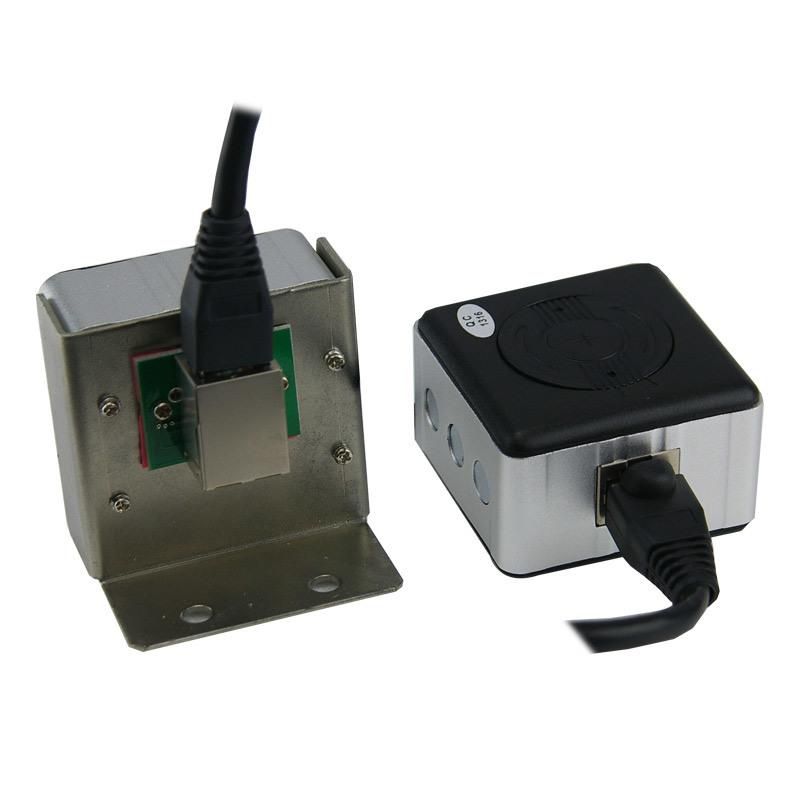

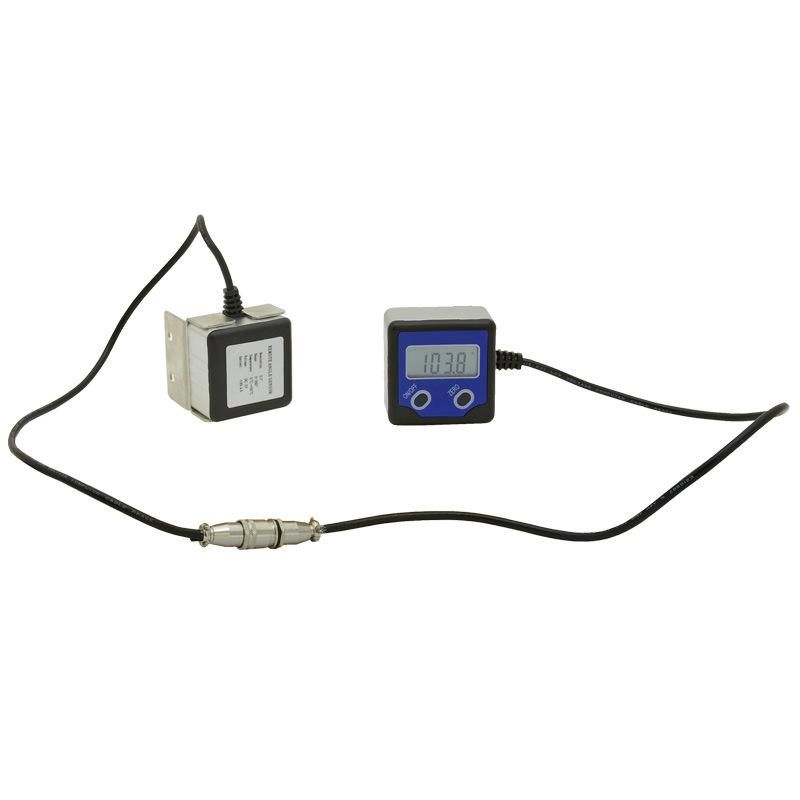

- The Display is linked to the angle sensor by a 910mm (36") cable. This is a standard standard Cat 5E Ethernet (RJ45) cable. Longer cables can be purchased separately.

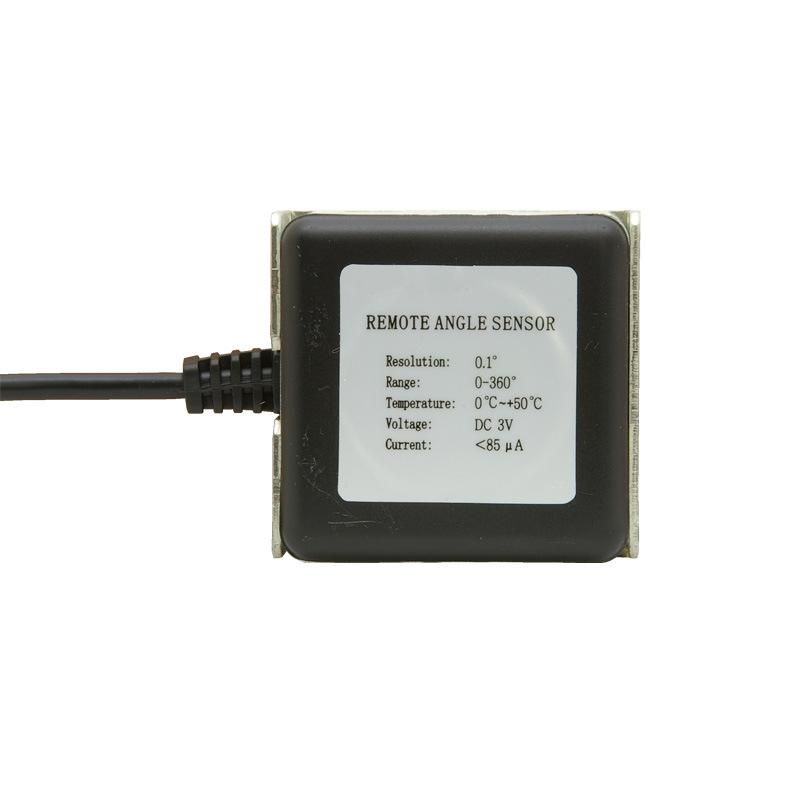

- This allows the display and angle sensor to be disconnected. The angle sensor has a mounting flange with two mounting holes.
- We would recommend that 5 meters is the maximum cable length when using the Angle Tilt Sensor/Inclinometer.
- Cables can be extended to 5 metres but please note that this must be a RJ45 Cat 5 lead that is screened. If not not there may be interference issues.
- Please Note - The sensor must not be subjected to harsh vibration. Protect sensor from coolant and moisture ingress.
- Applications Include - Dividing heads, Angle table, Telescopes, Tilting angle plates, Milling machine head angle, table saws etc.
- Included with the gauge - Remote LCD display, Angle sensor and 3.0V CR2032 Battery.
- Range: 0-360 degrees.
- Accuracy - +/- 0.1 degrees.
- LCD Display - 10mm character height.
