Stainless Steel Truck Scale Weighing Indicator (XK315A6GB(P))

Hefei Brans Measuring And Controlling Technology Co., Ltd.
  • Weighing：All Capacity
  • Accuracy：0.0001g
  • Display Type：LED
  • Display Digits：6 digits
  • Measure Method：Automatic
  • Shell Material：Plastic

Base Info

  • Model NO.：XK315A6GB(P)
  • Application：Electronic Platform Scale and Weighing Scale
  • Certification：OIML, Ce
  • Customized：Customized
  • Screen：6-Digit 20mm Green LED
  • Material：Plastic Housing
  • Power：6V 4ah Battery
  • Protection Class：IP65 Waterproof
  • Transport Package：Standard Carton Packing
  • Specification：355*250*270mm
  • Trademark：CAISUN
  • Origin：China
  • HS Code：8423900010
  • Production Capacity：30000PCS,Year

Description

Basic Info.

Model NO. XK315A6GB(P) Application Electronic Platform Scale and Weighing Scale Certification OIML, Ce Customized Customized Screen 6-Digit 20mm Green LED Material Plastic Housing Power 6V 4ah Battery Protection Class IP65 Waterproof Transport Package Standard Carton Packing Specification 355*250*270mm Trademark CAISUN Origin China HS Code 8423900010 Production Capacity 30000PCS/Year

Product Description

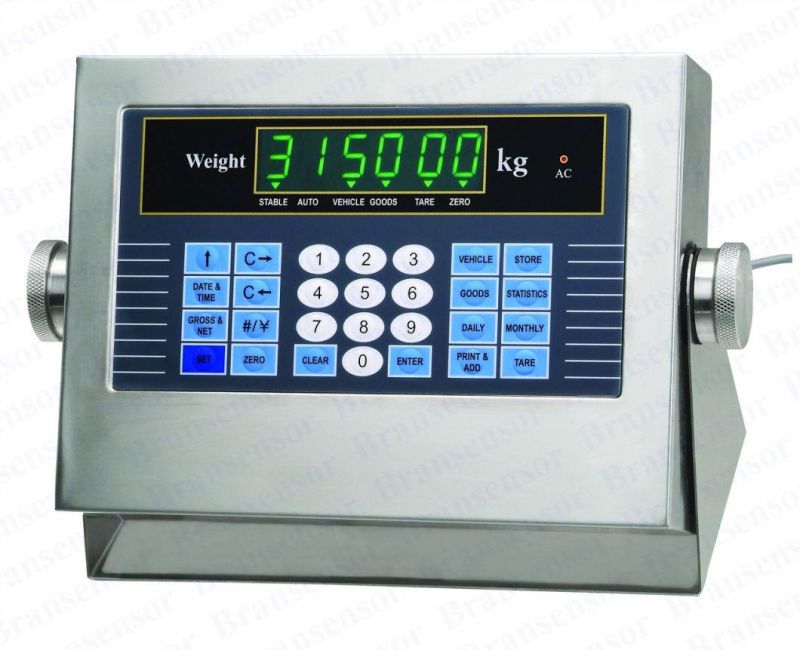

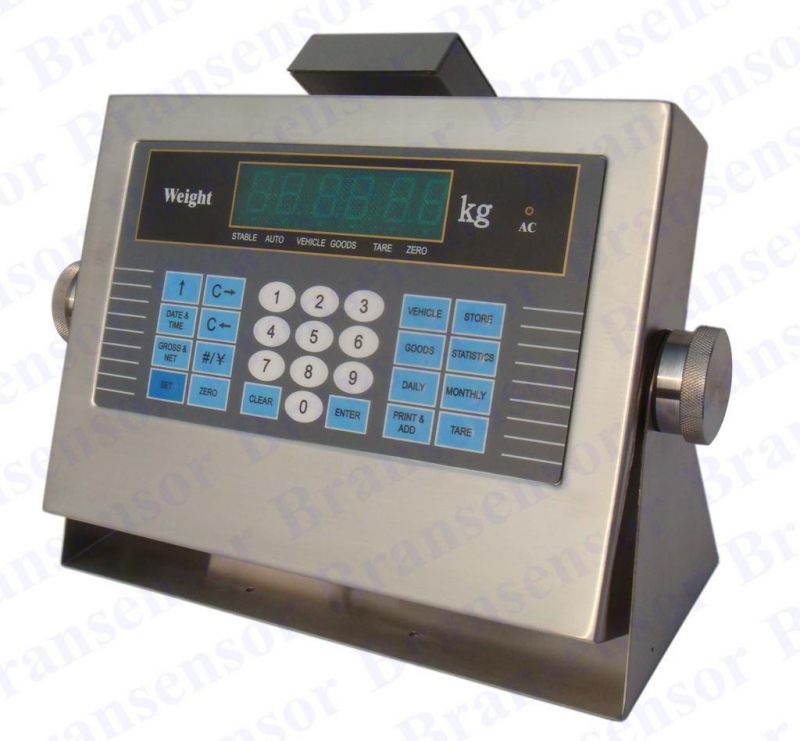

Stainless Steel truck scale weighing indicator(XK315A6GB(P))

Stainless Steel Truck Scale Weighing Indicator (XK315A6GB(P))Stainless Steel Truck Scale Weighing Indicator (XK315A6GB(P))

1.Basic information

Model:XK315A6GB
Available in stainless steel housing
Built micro printer
6-digit 20mm green LED
Dimensions:355×250×270mm
Applications:weighing platform,truck scale,etc.
PACKAGE
Quantity:4PCS per Carton
Dimension: 42x59x60cm
Weight:About 23kg

2. Functions and Features

1,Operating temperature: 0ºC to 40ºC2,Storage temperature: -25ºC to 55ºC3,Relative humidity:≤ 85% non-condensing4,Drive up 8X350Ω or 16X700Ω load cell
5,Indicator can be replaced without recalibration6,Four-point calibration7,Low battery indication and automatic power-off
8,Store and recall up to 10 unit prices9,Lock display when overload is greater 130%FS
10,Accuracy can be increased ten times
11,Real-time chock with programmable date andlock to stop work 12,Store and recall up to 200 vehicle numbersand tares13,Store and recall up to 1000  weighing records and statistical reports14,Classify statistics by vehicle and goods number15,Classify statistics by daily and monthly reports16,Selectable printing of fill-in form
17,Parallel interface to external 24-pin dot matrixprinter
18,RS232 serial interface
19,Optional RS485 serial interface
20,Selectable kg and t21,Optional micro printer 22.Power: 6V 4AH battery


This indicator could be used for weighing scales like electric platform scales, truck scales or other weighing scales. We also could use it for force measurement and industry progress controlling. bransensor.en.made-in-china.com
