• Model NO.：KM-2133-25
• Precision Measuring Device：Precision Measuring Device
• Certification：DIN, GB, RoHS, ISO
• Customized：Customized
• Protection Degree：IP65
• Measurement：Metric,Inch

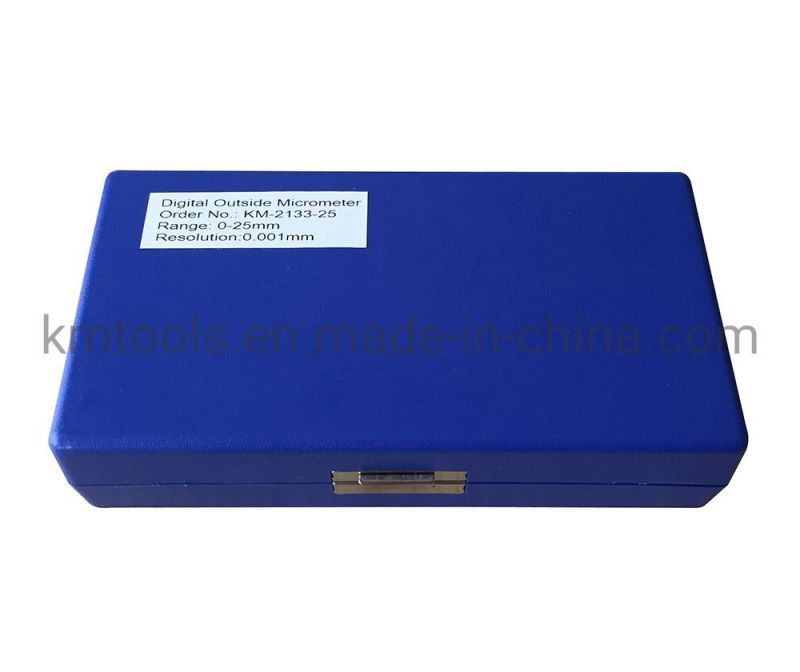

• Transport Package：ABS Box
• Specification：DIN Standard
• Trademark：KM
• Origin：Shaanxi, China
• HS Code：9017300000
• Production Capacity：50000pieces,Month

Basic Info.

Model NO. KM-2133-25 Precision Measuring Device Precision Measuring Device Certification DIN, GB, RoHS, ISO Customized Customized Protection Degree IP65 Measurement Metric/Inch Transport Package ABS Box Specification DIN Standard Trademark KM Origin Shaanxi, China HS Code 9017300000 Production Capacity 50000pieces/Month

Product Description

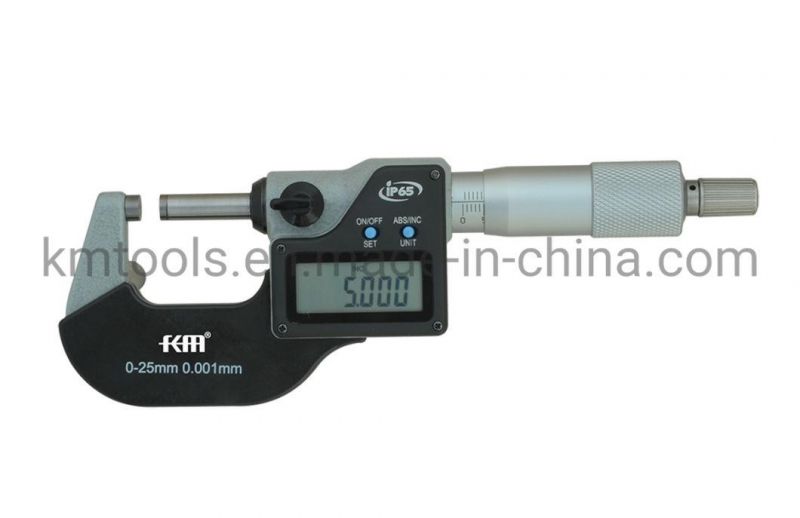

Feature:
1. Resolution:0.001mm(Metric);0.00005''(Inch).
2. LCD display.
3. Protection level:IP65(oil, water and dust proof).
4. Ratchet stop.
5.OFF/ON,SET,ABS/INC,UNIT(in/mm conversion) function keys.
6. Carbide measuring face.
7. SPC data output.
8. One SR44 battery.

Specification:
Metric:

Order No.	Measuring Range	Accuracy	Resolution
KM-2133-25	0-25mm	±0.002mm	0.001mm
KM-2133-50	25-50mm	±0.002mm	0.001mm
KM-2133-75	50-75mm	±0.003mm	0.001mm
KM-2133-100	75-100mm	±0.003mm	0.001mm
KM-2133-125	100-125mm	±0.003mm	0.001mm
KM-2133-150	125-150mm	±0.003mm	0.001mm
KM-2133-175	150-175mm	±0.004mm	0.001mm
KM-2133-200	175-200mm	±0.004mm	0.001mm
KM-2133-225	200-225mm	±0.004mm	0.001mm
KM-2133-250	225-250mm	±0.004mm	0.001mm
KM-2133-275	250-275mm	±0.005mm	0.001mm
KM-2133-300	275-300mm	±0.005mm	0.001mm

Inch:

Order No.	Measuring Range	Accuracy	Resolution
KM-2133-1	0-1″	±0.00008″	0.00005″
KM-2133-2	1-2″	±0.00008″	0.00005″
KM-2133-3	2-3″	±0.00012″	0.00005″
KM-2133-4	3-4″	±0.00012″	0.00005″
KM-2133-5	4-5″	±0.00012″	0.00005″
KM-2133-6	5-6″	±0.00012″	0.00005″
KM-2133-7	6-7″	±0.00016″	0.00005″
KM-2133-8	7-8″	±0.00016″	0.00005″
KM-2133-9	8-9″	±0.00016″	0.00005″
KM-2133-10	9-10″	±0.00016″	0.00005″
KM-2133-11	10-11″	±0.0002″	0.00005″
KM-2133-12	11-12″	±0.0002″	0.00005″
