• Model NO.：BST106-M10[GH]
• Measure Method：Automatic
• Shell Material：Plastic
• Application：Industrial
• Certification：CE
• Customized：Non-Customized
• Size：7" and 10"
• Power Supply：DC24V
• Di：9
• Do：18
• Ao：2
• COM&COM1：RS232
• COM2：RS485
• Product Name：4-Scale Packing Controller
• Transport Package：1PCS,Box, 18box,Carton
• Specification：227*163*36mm
• Trademark：Supmeter
• Origin：China
• HS Code：8537109090
• Production Capacity：5000PCS,Day

Basic Info.

Model NO. BST106-M10[GH] Measure Method Automatic Shell Material Plastic Application Industrial Certification CE Customized Non-Customized Size 7" and 10" Power Supply DC24V Di 9 Do 18 Ao 2 COM&COM1 RS232 COM2 RS485 Product Name 4-Scale Packing Controller Transport Package 1PCS/Box, 18box/Carton Specification 227*163*36mm Trademark Supmeter Origin China HS Code 8537109090 Production Capacity 5000PCS/Day

Product Description

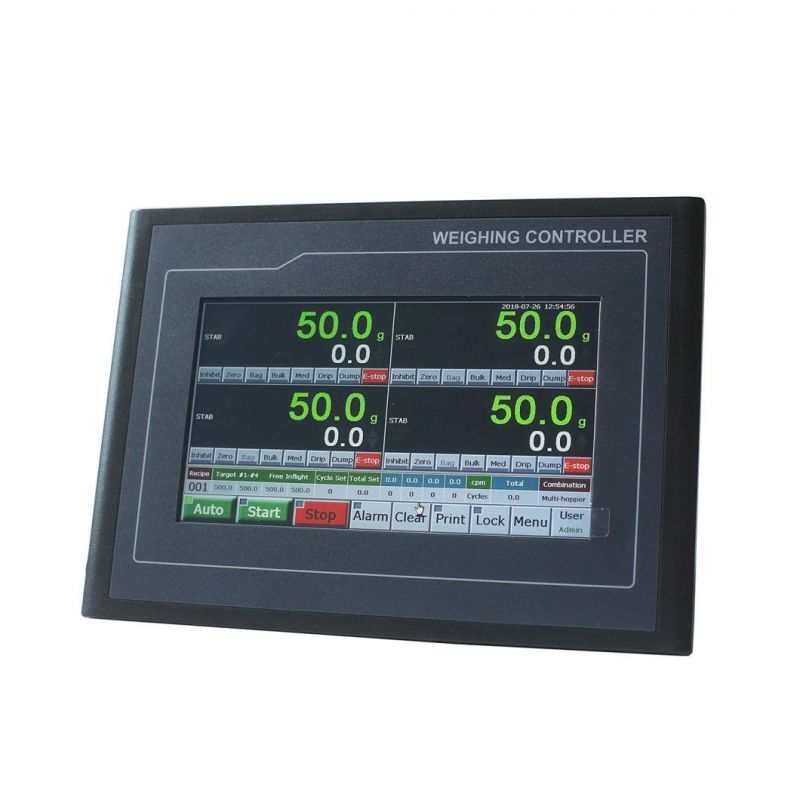

SUPMETER RS485 Modbus Four Scales Weighing Indicator Controller For Packing Machinery, BST106-M10[GH]
For: Ration Packing Scale [4-Bucket Scale]
[Respective/Combination Packing]
 Suitable for Ration Packing Scale. Optional Application Modes: 1-Bucket Scale, 2-Bucket Scale, 3-Bucket Scale and 4-Bucket Scale. Optional Packing Modes: Combination[Multi-bucket Packing], Combination[Single-bucket Packing] and Respective[Single-bucket Packing].

 Main Features:

² Suitable for Increment Ration Packing Scale. Optional Application Modes: Single-scale, Double-scale, Three-scale and Four-scale. Optional Packing Modes: Combination[Multi-hopper Packing], Combination[Single-hopper Packing] and Respective[Single-hopper Packing].

² EMC design with high anti-jamming capability, suitable for industrial environment.

² Cortex-A8 CPU with 600MHz Clock, 128M RAM and 128M Flash.

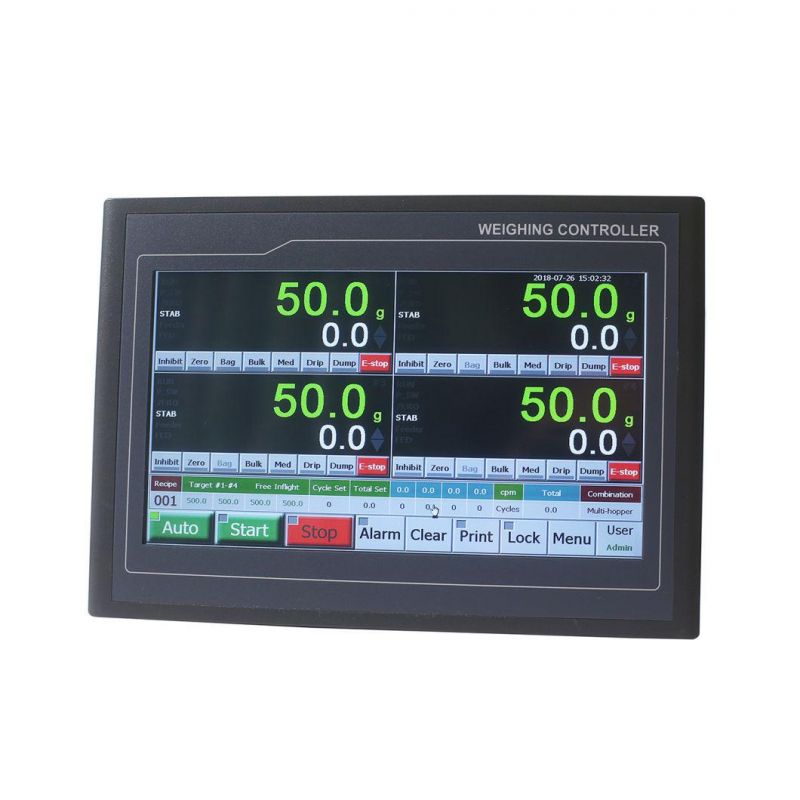

² 7"/10.2" Ultralight and ultrathin TFT touch screen with embedded weighing/control module.

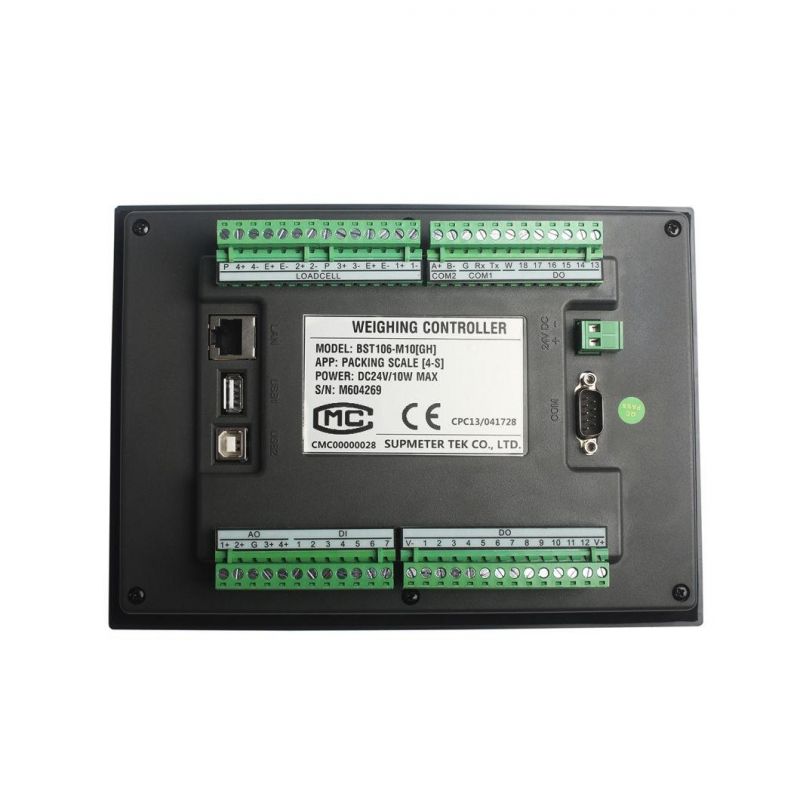

² Loadcell Interface

l 4 Loadcell ports. Max. Connection Quantity: 4×4 Loadcells (350Ω).

l 24-bit High-precision and high-speed ∑-A/D conversion module with 1/1,000,000 internal resolution and sampling frequency 800Hz.

l Special anti-vibration digital filtering algorithm for ensuring the weighing stability and accuracy when there is strong vibration on the load receptor, and the rapid response capability when the weight signal changes.

² I/O Interface

l 7 Definable normally open switch inputs [DI] and 18 definable normally open transistor switch outputs [DO].

l Optional 'High/Medium/Low Speed Feed' DOs for feeding control. Optional Low-speed Feeding Modes: Continuous Feeding Mode and Inching Feeding Mode.

l 4 Definable analog signal AO[0~10V] for weight signal output or 'High/Medium/Low Speed Feed' control.

² Digital Communication Interface

l COM1[RS232]&COM2[RS485] for connecting Host IPC/PLC and LED Remote Display.

l COM[RS232] for connecting RS232 Serial Printer.

l USB1 for connecting USB mouse, downloading HMI software from U-disk and copying data to U-disk.

² Software Function

l Manual Screen-locking/Screen-unlocking, Auto Screen-locking, Digital Setting&Calibration and I/O Testing functions available.

l Initial Zero Adjustment after Power-on, Auto Zero Tracking, Zero Fine Adjustment and Zero Calibration functions available.

l Load Calibration and Loss Calibration functions available.

l 100 Recipes for packing control.

l Optional 'Fall Value Auto Correction' function.

l Optional 'Auto Pause for Deviation Alarm' and 'Auto Re-feed' functions.

l Optional 'Target Batch Control' function [With Target Batch Count or Target Batch Weight finished, the packing process will stop automatically].

l The present Batch Record can be printed automatically and manually.

l Historical Batch Records, Totalizing Reports and Recipes can be queried and printed.

l With the multitasking mode, the weighing&control process will not be interrupted by parameter setting and the other operations.
