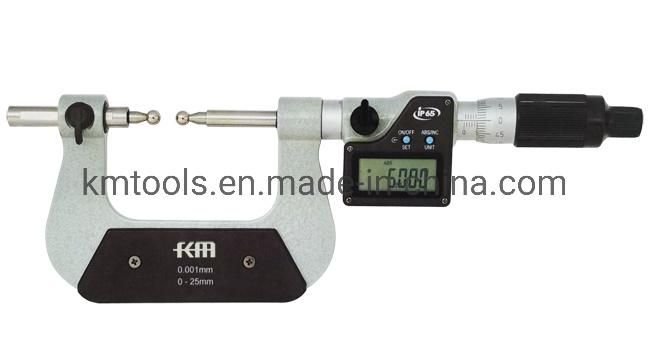

• Model NO.：KM-2274-25
• Graduation：0.001mm
• Measurement：Metric
• Transport Package：ABS Box or Wooden Case
• Specification：GB Standard
• Trademark：KM
• Origin：Shaanxi, China
• HS Code：9017300000
• Production Capacity：50000pieces,Month

Basic Info.

Model NO. KM-2274-25 Graduation 0.001mm Measurement Metric Transport Package ABS Box or Wooden Case Specification GB Standard Trademark KM Origin Shaanxi, China HS Code 9017300000 Production Capacity 50000pieces/Month

Product Description

Feature:
1.Resolution:0.001mm(Metric);0.00005″(Inch).
2.Large LCD for easy reading.
3.Ratchet stop.
4.Interchangeable ball tips for various gear modules(0.6-3.5) are available.
5.IP65 water/dust protection. Criterion:DIN40050/IEC529.
6.Supplied in the storage case.

Specification:
Metric:

Order No.	Measuring Range	Accuracy	Graduation
KM-2274-25	0~25mm	±0.002mm	0.001mm
KM-2274-50	25~50mm	±0.002mm	0.001mm
KM-2274-75	50~75mm	±0.003mm	0.001mm
KM-2274-100	75~100mm	±0.003mm	0.001mm
KM-2274-125	100~125mm	±0.003mm	0.001mm
KM-2274-150	125~150mm	±0.003mm	0.001mm
KM-2274-175	150~175mm	±0.004mm	0.001mm

Inch:

Order No.	Measuring Range	Accuracy	Graduation
KM-2274-1	0~1″	±0.00008″	0.00005″
KM-2274-2	1~2″	±0.00008″	0.00005″
KM-2274-3	2~3″	±0.00012″	0.00005″
KM-2274-4	3~4″	±0.00012″	0.00005″
KM-2274-5	4~5″	±0.00012″	0.00005″
KM-2274-6	5~6″	±0.00012″	0.00005″
KM-2274-7	6~7″	±0.00016″	0.00005″
