• Model NO.：XK315A2-6
• Application：Electronic Platform Scale and Weighing Scale
• Certification：OIML, Ce
• Customized：Customized
• Screen：6 Digit 25.4mm LCD
• Material：Stainless Steel Housing
• Power：6V 4ah Battery
• Transport Package：Standard Carton Packing
• Specification：110*95*48mm
• Trademark：CAISUN
• Origin：China
• HS Code：9026209090
• Production Capacity：30000PCS,Year

Basic Info.

Model NO. XK315A2-6 Application Electronic Platform Scale and Weighing Scale Certification OIML, Ce Customized Customized Screen 6 Digit 25.4mm LCD Material Stainless Steel Housing Power 6V 4ah Battery Transport Package Standard Carton Packing Specification 110*95*48mm Trademark CAISUN Origin China HS Code 9026209090 Production Capacity 30000PCS/Year

Product Description

Brans OIML weighing indicator  for weighing scales(XK315A2-6)



1.Basic information

Model:XK315A2-6
plastic housing
Dimensions:110*95*48mm
Applications:electronic plaform scale and weighing scale,etc.
PACKAGE
Quantity:12 PCS per Carton
Dimension:48x59x60cm
Weight:About 5kg

2. Functions and Features

1. 10 V/m immunity to radiated electromagnetic fields
2. 6-digit 25.4mm LCD
3. Drive up to 4 x 350Ω or 8 x 700Ω load cell
4. 5 V load cell excitation voltage
5. Connection to 4-wire or 6-wire load cell
6. 1,000,000 internal ADC counts
7. Quick recalibration due to change of environment
8. Manual and automatic weight accumulation
9. Automatic zero tracking
10. RS-232C/RS-485 interface with continuous data output or command protocol
11. RS-232C serial printer interface
12. High resolution (×10) display
13. HI/OK/LO set point
14. Low battery warning
15. Power: 6V 4A battery

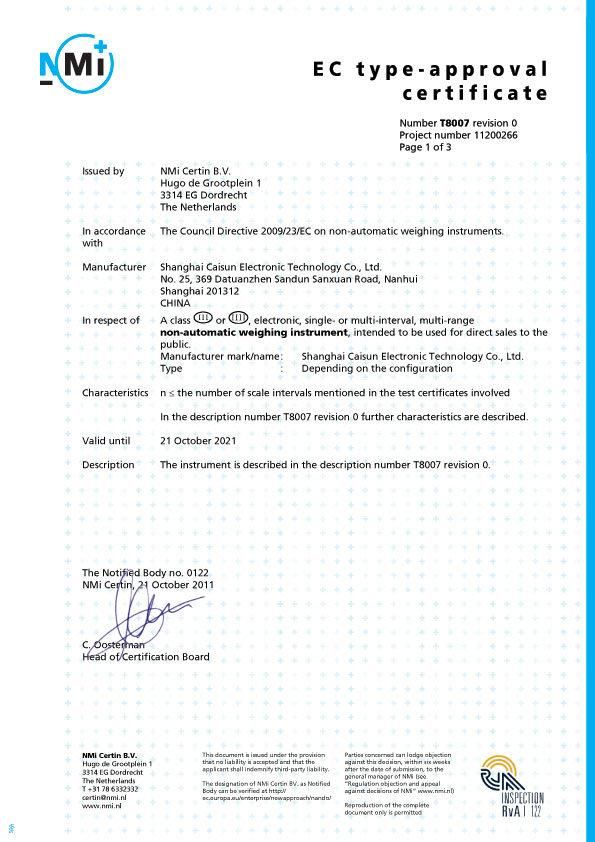

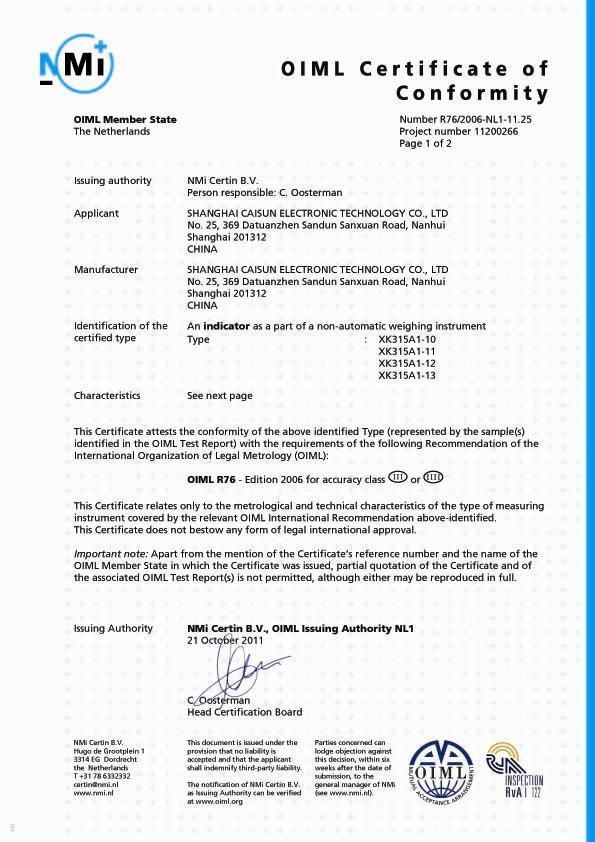

3. certificates

OIML AND CE



This indicator could be used for weighing scales like electric platform scales, hopper scales or other weighing scales. We also could use it for force measurement and industry progress controlling. bransensor.en.made-in-china.com
