• Model NO.：LP7518
• Certification：Ce,OIML
• Customized：Customized
• Transport Package：Carton
• Trademark：LOCOSC
• Origin：Zhejiang, China (Mainland)
• HS Code：9031809090
• Production Capacity：10000 PCS,Year

Basic Info.

Model NO. LP7518 Certification Ce,OIML Customized Customized Transport Package Carton Trademark LOCOSC Origin Zhejiang, China (Mainland) HS Code 9031809090 Production Capacity 10000 PCS/Year

Product Description

Weighing Indicator Counting indicator Price indicator



1 Instruction

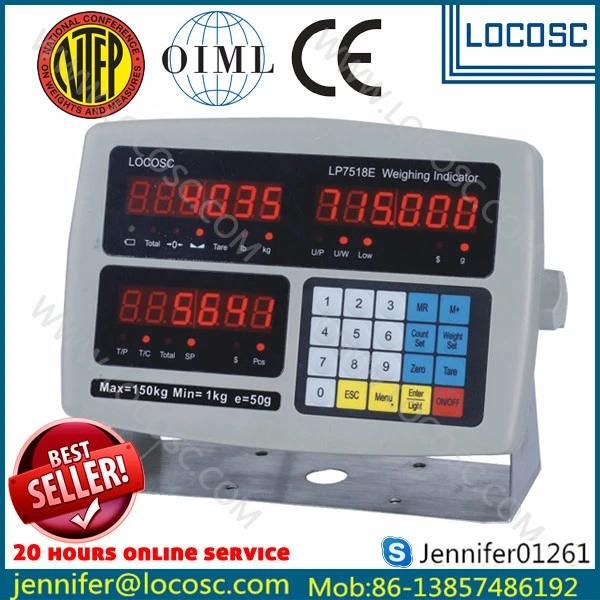

LP7518 is a economical weighing indicator which specially designed for bench scale. It has friendly display interface, simplicity of operation, stable performance, affordable power saving effort.



1.1 Main function

• Basic Weighing function
• Count / price function
• Total function
• Piece weight /unit price memory function
• Piece weight /unit price call function
• Battery voltage instructions
• Power Saving function
• Setting value output function
• RS232C/RS-485 serial communicate interface (Match model)



1.2 Technical parameter

• Load cell excitation voltage:+3.3VDC
• A/D switching rate: 10times/second
• Input signal range: 0~12.8mV
• Load capacity:Maximum connect 4 load cell of 350Ω
• Unit of weight: kg,lb
• number of verification intervals: 3000e
• Optional parameters: 1/2/5/10/20/50
• Display: LCD/LED
• Keypad: 10 number keys,10 function keys
• communication interface: RS232C/RS485;
• Many baud rate can be chosen:600/1200/2400/4800/9600/19200
• Operation temperature: -10~40°C
• Storage temperature: -20~+60°C
• Power supply: 4V/4Ah battery;AC220V/50Hz.
