6-8mm Electronic Digital Three Point Internal Micrometer with IP54 Protection Degree

Deko Corporation
  • Warranty：One Year
  • Type：Micrometer
  • Measurement Object：Inside Diameter
  • Range：6-8mm
  • Resolution：0.001mm
  • Precision：0.004mm

Base Info

  • Model NO.：KM-2335-8
  • Measure Method：Manual
  • Precision Measuring Device：Precision Measuring Device
  • Certification：DIN, GB, RoHS, ISO
  • Customized：Customized
  • Measurement：Metric,Inch
  • Protection Degree：IP54
  • Transport Package：Aluminium Box
  • Specification：DIN Standard
  • Trademark：KM
  • Origin：Shaanxi, China
  • HS Code：9017300000
  • Production Capacity：50000pieces,Month

Description

Basic Info.

Model NO. KM-2335-8 Measure Method Manual Precision Measuring Device Precision Measuring Device Certification DIN, GB, RoHS, ISO Customized Customized Measurement Metric/Inch Protection Degree IP54 Transport Package Aluminium Box Specification DIN Standard Trademark KM Origin Shaanxi, China HS Code 9017300000 Production Capacity 50000pieces/Month

Product Description

Feature:
1. Resolution:0.001mm.
2. Measurement can be taken closer to the bottom of the blind bore,
    and can be taken into a deep hole with a extension rod.
3. Highly durable because of carbide-tipped contact points.
4. Ratchet stop.
5. Criterion:DIN40050/IEC529.
6. RS232 data output.
    Connecting cable:P1102(Optional).
7. Protection degree:IP54

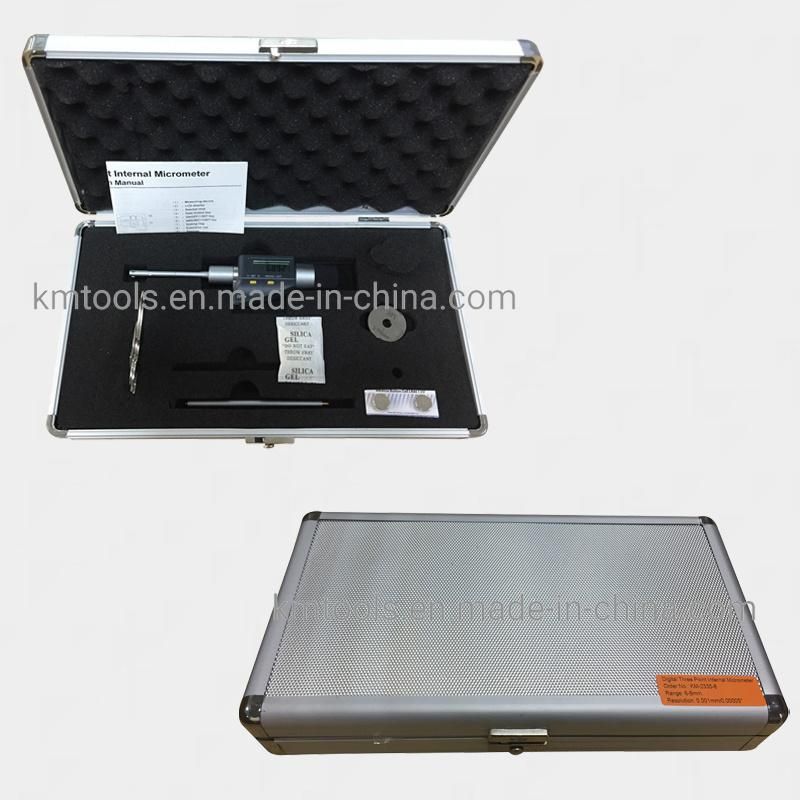

8. Supplied in the storage case.

Specification:
Order No.RangeAccuracyResolutionSetting ringsL1AExtension rods
KM-2335-86~8mm±0.004mm0.001mmφ6mm54.5mm1.5mm100mm
KM-2335-108~10mm±0.004mm0.001mmΦ8mm54.5mm1.5mm100mm
KM-2335-1210~12mm±0.004mm0.001mmΦ10mm54.5mm1.5mm100mm
KM-2335-1612~16mm±0.004mm0.001mmΦ16mm80mm0.5mm150mm
KM-2335-2016~20mm±0.004mm0.001mmΦ16mm80mm0.5mm150mm
KM-2335-2520~25mm±0.004mm0.001mmΦ25mm90mm0.5mm150mm
KM-2335-3025~30mm±0.004mm0.001mmΦ25mm90mm0.5mm150mm
KM-2335-4030~40mm±0.004mm0.001mmΦ40mm97mm0.5mm150mm
KM-2335-5040~50mm±0.005mm0.001mmΦ40mm97mm0.5mm150mm
KM-2335-6350-63mm±0.005mm0.001mmφ62mm114mm0.5mm150mm
KM-2335-7562-75mm±0.005mm0.001mmφ62mm114mm0.5mm150mm
KM-2335-8875-88mm±0.005mm0.001mmΦ87mm114mm0.5mm150mm
KM-2335-10087-100mm±0.005mm0.001mmΦ87mm114mm0.5mm150mm

6-8mm Electronic Digital Three Point Internal Micrometer with IP54 Protection Degree6-8mm Electronic Digital Three Point Internal Micrometer with IP54 Protection Degree6-8mm Electronic Digital Three Point Internal Micrometer with IP54 Protection Degree6-8mm Electronic Digital Three Point Internal Micrometer with IP54 Protection Degree
6-8mm Electronic Digital Three Point Internal Micrometer with IP54 Protection Degree
6-8mm Electronic Digital Three Point Internal Micrometer with IP54 Protection Degree
6-8mm Electronic Digital Three Point Internal Micrometer with IP54 Protection Degree6-8mm Electronic Digital Three Point Internal Micrometer with IP54 Protection Degree6-8mm Electronic Digital Three Point Internal Micrometer with IP54 Protection Degree1) Who are we?
    Deko Corporation mainly dedicate to the development, manufacture and marketing of KM brand
    precision measuring tools in China mainland.

2) What products do we carry?
    Dial indicators, micrometers, calipers, bore gauges, height gauges,
    dial thickness gauges, depth gauges, bevel protractors, gauge, blocks,level,etc.

3) What are the terms of trade?
    We support FOB, C&F, CIF, EXW.

4) What are the forms of payment?
    We accept T/T, L/C, D/A, D/P, Paypal, Western Union.

5) Do we accept customization?
    Yes, OEM is available.

6) How about after-sales service?
    One year warranty for all kinds of products.
    If you find any defective accessories when receive goods, we will ship you news parts or
    new product to replace. As an experienced manufacturer, we have very strict calibration
    and inspection team, you can rest assured of our product quality.
