Set of Dial Indicator and Magnetic Stand with Fine Adjustment
Deko Corporation- Type：Dial Indicator
- Measurement Object：Length
- Range：0-10mm
- Resolution：0.01mm
- Measure Method：Manual
- Precision Measuring Device：Precision Measuring Device
Base Info
- Model NO.：KM-112-60-10&KM-602-01
- Certification：DIN, GB, RoHS, ISO
- Customized：Customized
- Measurement：Metric

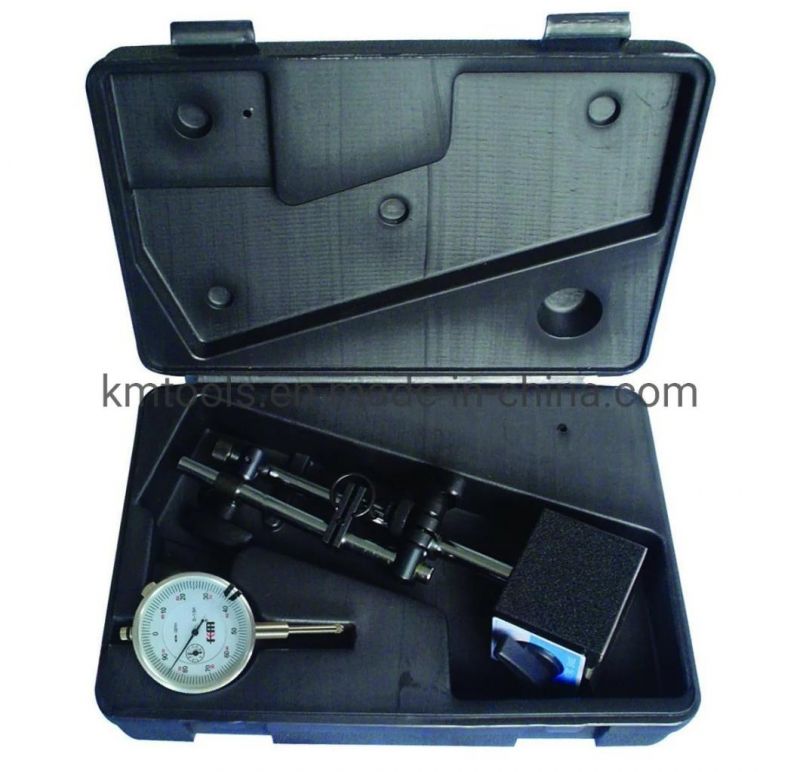

- Transport Package：ABS Box
- Specification：GB Standard
- Trademark：KM
- Origin：Shaanxi, China
- HS Code：9017300000
- Production Capacity：50000pieces,Month
Description
Basic Info.
Model NO. KM-112-60-10&KM-602-01 Certification DIN, GB, RoHS, ISO Customized Customized Measurement Metric Transport Package ABS Box Specification GB Standard Trademark KM Origin Shaanxi, China HS Code 9017300000 Production Capacity 50000pieces/MonthProduct Description

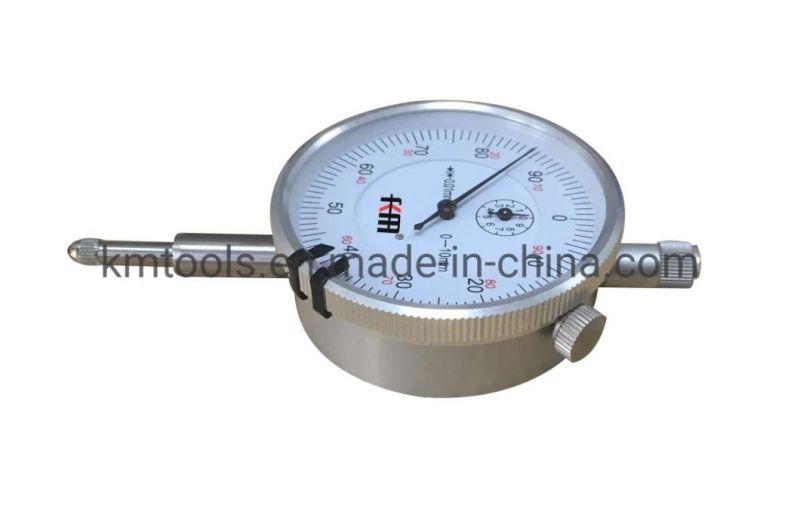

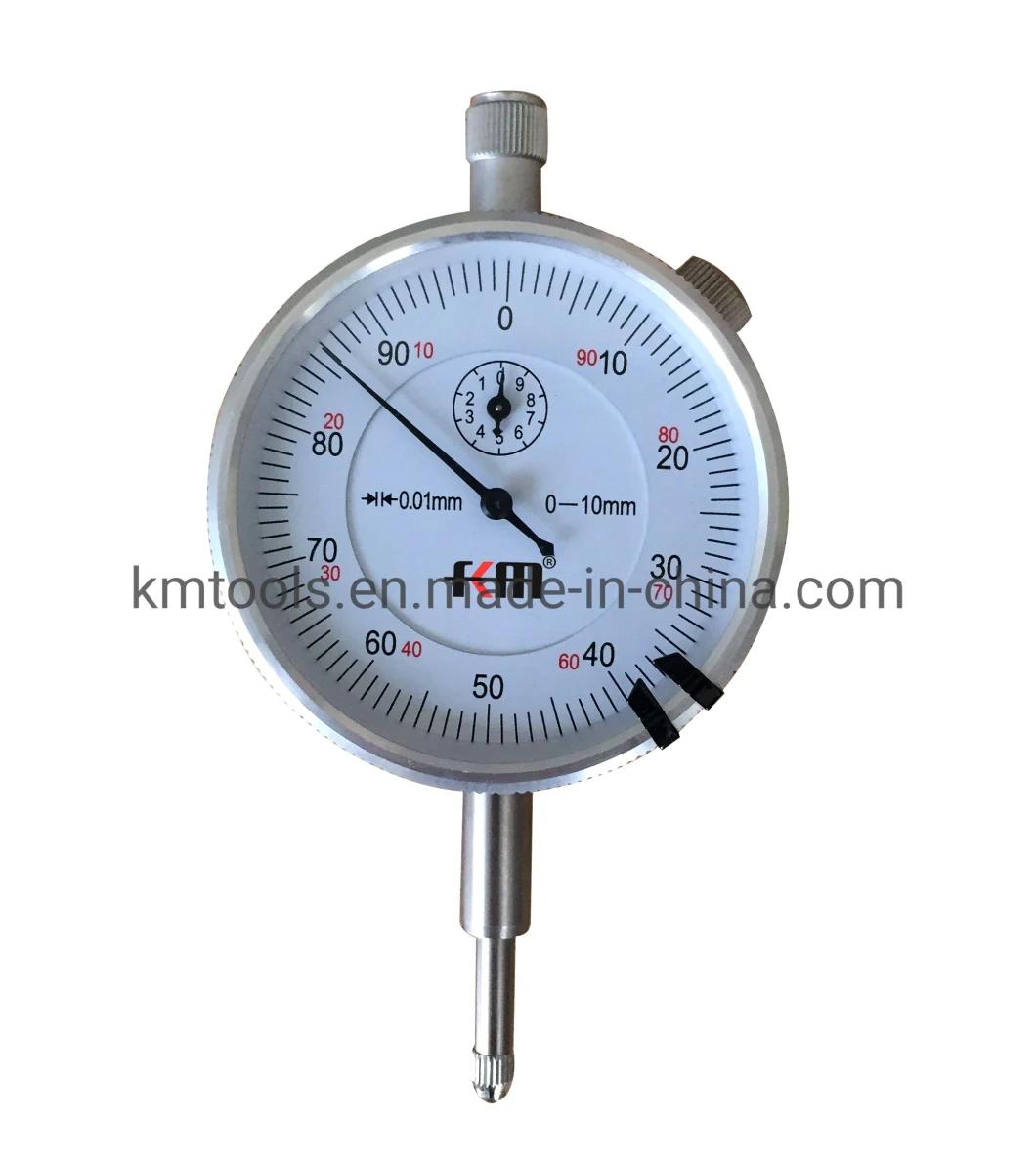

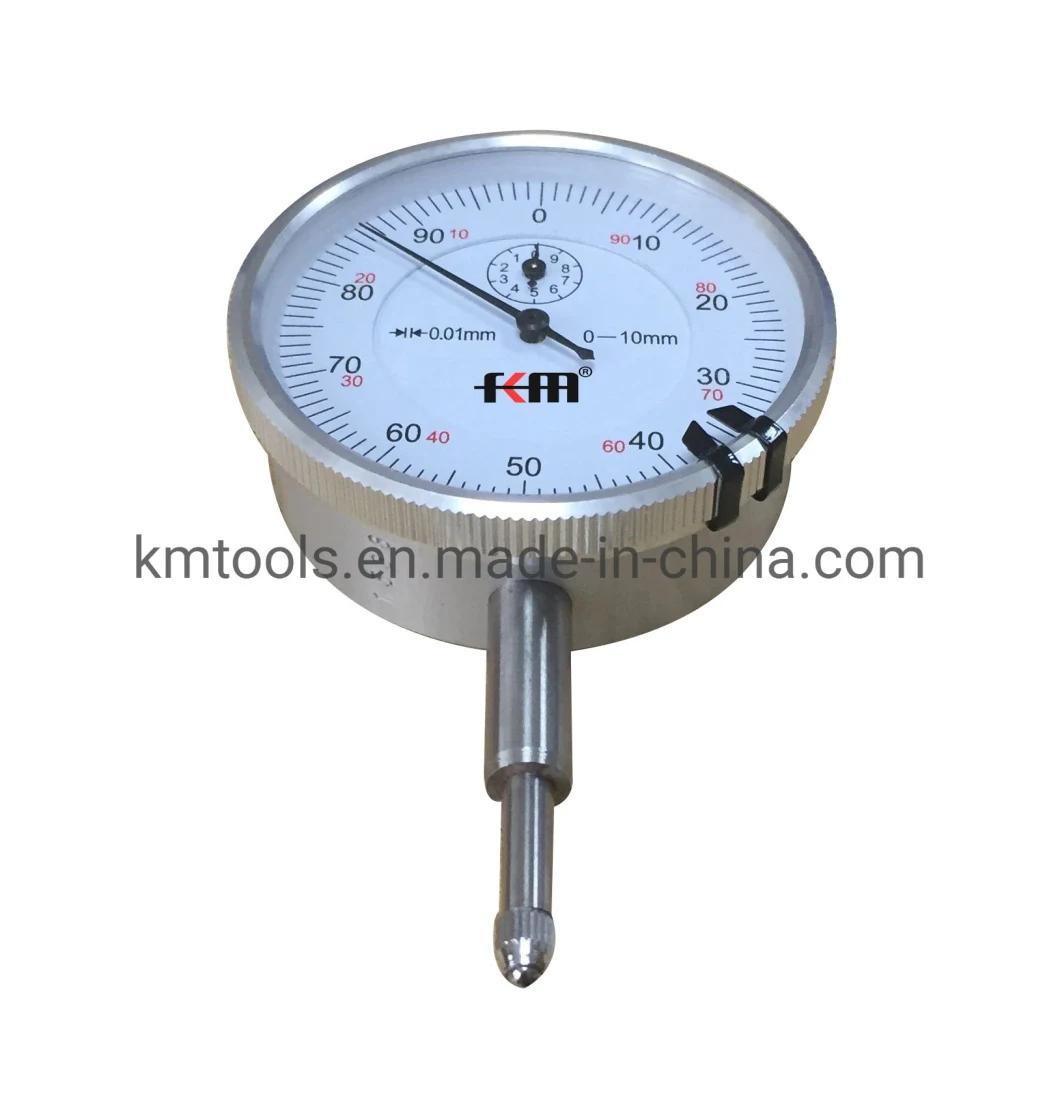

Feature of Dial Indicator:
1. Jeweled bearing.
2. With adjustable tolerance marker and locking screw.
3. Easy to read and operate, high sensitivity and accuracy.
4. Various colors are available for dial and needle.
5. Flat back and with lug are optional.

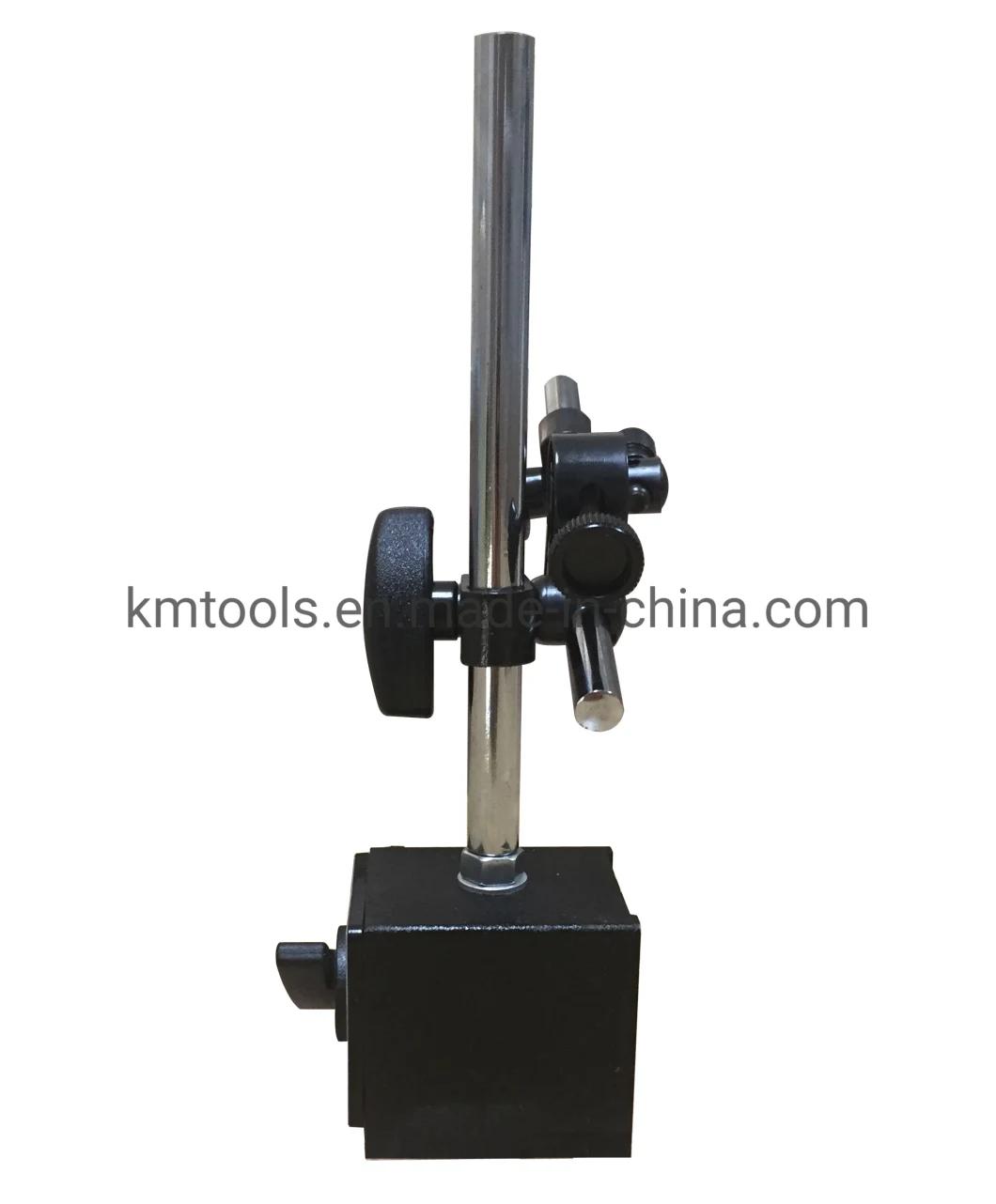

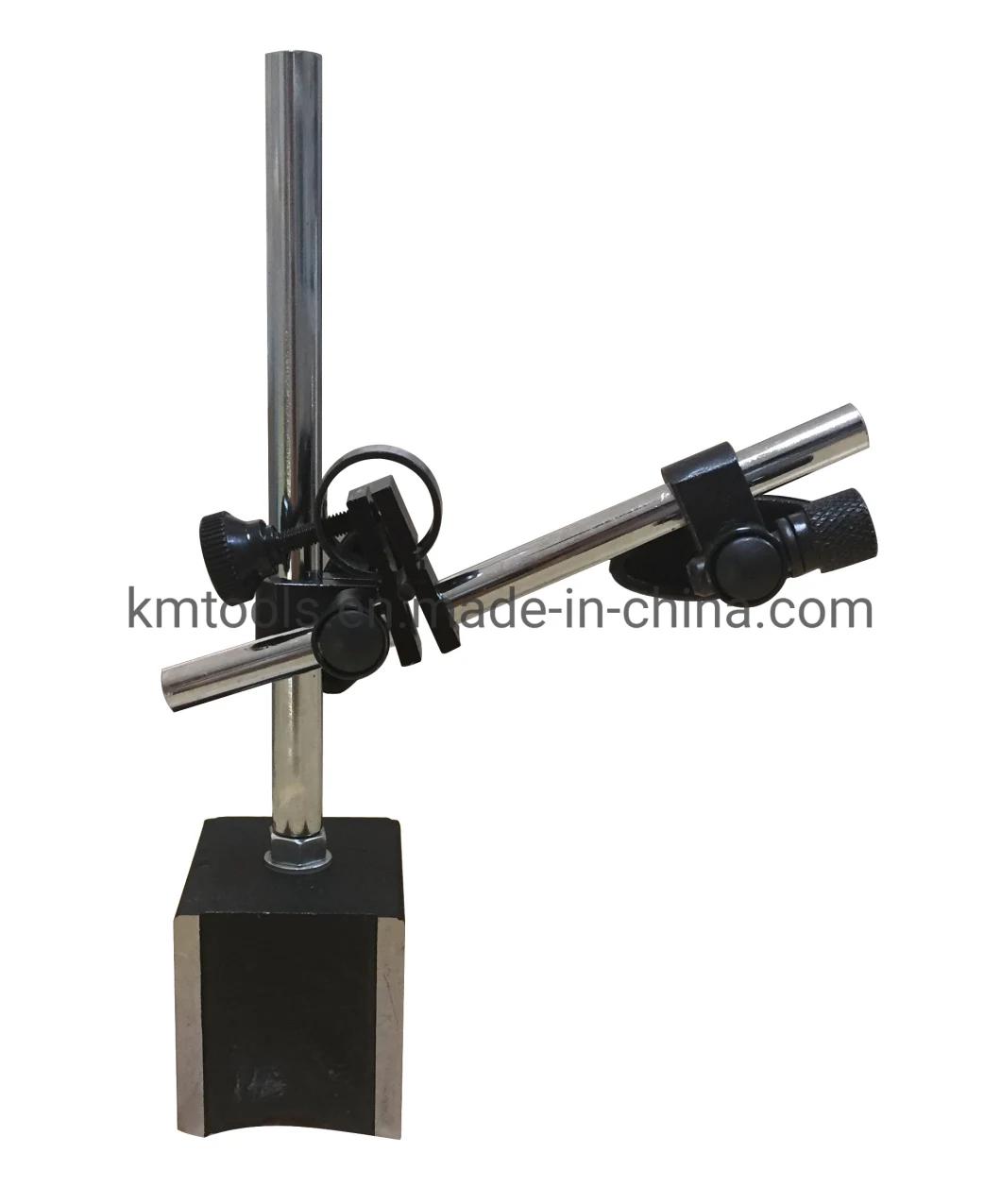

Feature of Magnetic Stand:
1. Branch stem with fine adjustment.
2. Magnetic base with ON/OFF switch.
3. Clamp hole:8&6.5mm(optional: hole 3/8''&5/32'')
4. For dial indicators with lug back or plain back.
5. Main stem:φ12x176mm.
6. Branch stem: φ10x150mm.
7. Tapped hole:M8X1.25mm.
8. Weight:1.45kg.
Specification of Dial Indicator:
| Order No. | Range | Graduation | Diameter of Dial |
| KM-112-55-3 | 0~3mm | 0.01mm | 55mm |
| KM-112-55-5 | 0~5mm | 0.01mm | 55mm |
| KM-112-55-10 | 0~10mm | 0.01mm | 55mm |
| KM-112-55M-3 | 0~3mm | 0.01mm | 55mm |
| KM-112-55M-5 | 0~5mm | 0.01mm | 55mm |
| KM-112-55M-10 | 0~10mm | 0.01mm | 55mm |
| KM-112-57-5 | 0~5mm | 0.01mm | 57mm |
| KM-112-57-10 | 0~10mm | 0.01mm | 57mm |
| KM-112-60-3 | 0~3mm | 0.01mm | 60mm |
| KM-112-60-5 | 0~5mm | 0.01mm | 60mm |
| KM-112-60-10 | 0~10mm | 0.01mm | 60mm |
| KM-112-60Q-3 | 0~3mm | 0.01mm | 60mm |
| KM-112-60Q-5 | 0~5mm | 0.01mm | 60mm |
| KM-112-60Q-10 | 0~10mm | 0.01mm | 60mm |
| KM-112-60F-3 | 0~3mm | 0.01mm | 60mm |
| KM-112-60F-5 | 0~5mm | 0.01mm | 60mm |
| KM-112-60F-10 | 0~10mm | 0.01mm | 60mm |
| KM-112-60X-3 | 0~3mm | 0.01mm | 60mm |
| KM-112-60X-5 | 0~5mm | 0.01mm | 60mm |
| KM-112-60X-10 | 0~10mm | 0.01mm | 60mm |
| KM-112-60H-10 | 0~10mm | 0.01mm | 60mm |
| KM-112-60T-10 | 0~10mm | 0.01mm | 60mm |
Specification of Magnetic Stand:
| Order No. | Magnetic Force | Applicable Holding Stem Dia. | Base(L×W×H) | Remarks |
| KM-602-01 | 60kg | ø 8mm, ø 6.5mm / 3/8'', 5/32'' | 58×50×55mm | With fine adjustment |
| KM-602-02 | 80kg | ø 8mm, ø 6.5mm / 3/8'', 5/32'' | 60×50×55mm | With fine adjustment |
