• Model NO.：LP7561
• Application：Heavy Industrial
• Certification：CE
• Customized：Customized
• Type：Weighing Indicator
• Rated Load：100000kg
• Power Supply：AC110V,220V (AC±10%)
• Display：6 Digits 20mm LED or LCD
• Input Sensitivity：0.5μV,D
• Zero Tracking：0.5 D,S
• Excitation：DC5V
• Operating Temperature：-10ºC ~ +40ºC (14ºF~104ºF)
• Input Voltage：-30mv~30mv
• Transport Package：Carton
• Specification：330*187*75 mm
• Trademark：LOCOSC
• Origin：Zhejiang, China (Mainland)
• HS Code：9031809090
• Production Capacity：5000 Sets,Month

Basic Info.

Model NO. LP7561 Application Heavy Industrial Certification CE Customized Customized Type Weighing Indicator Rated Load 100000kg Power Supply AC110V/220V (AC±10%) Display 6 Digits 20mm LED or LCD Input Sensitivity 0.5μV/D Zero Tracking 0.5 D/S Excitation DC5V Operating Temperature -10ºC ~ +40ºC (14ºF~104ºF) Input Voltage -30mv~30mv Transport Package Carton Specification 330*187*75 mm Trademark LOCOSC Origin Zhejiang, China (Mainland) HS Code 9031809090 Production Capacity 5000 Sets/Month

Product Description

Description---------------------------------------------------------------------------------

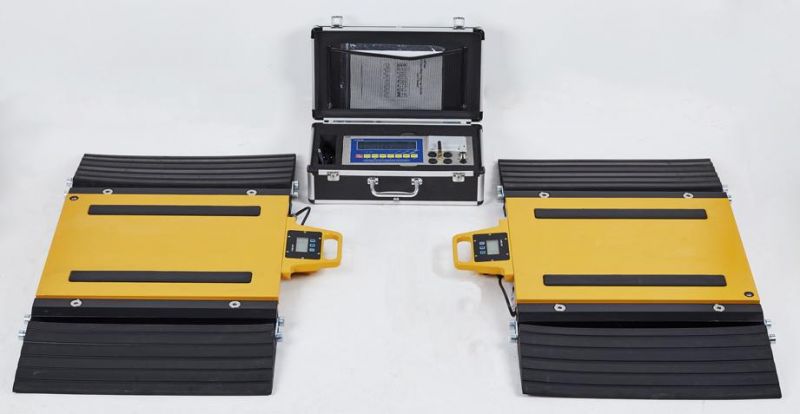

New, highly featured axle indicators give the range and flexibility to produce the weighing system to suit your application. Packaging details: inner box, outside box and wood pallet.





Specification-------------------------------------------------------------------------------


Input sensitivity	0.5μV/D
Load cell excitation	DC5V, maximum connect with 24 pcs of 350Ω load cell
Zero calibration	-30mV ~ 30mV
AD internal resolution	1/2000000
AD external resolution	1/15000
AD coversion rate	60 times/sec
Span calibration	Full digital calibration
Display	LCD (6 digits, H=20mm)
Operating temperature	-10ºC ~ +40ºC (14ºF ~ 104ºF)
Power supply	AC 110V~240V, DC 6V/4Ah, 700mA
Dimension	200mm* 75mm* 185mm
Weight	1.8kg

Feature---------------------------------------------------------------------------------------

1. high resolution axle indicator;
2. it can connect with 1/2/3/4 weighing pads;
3. 6-wire or 4-wire loadcell support, maxim 24pcs of load cells;
4. serial port RS232;
5. PC command mode;
6. stainless steel bracket.
