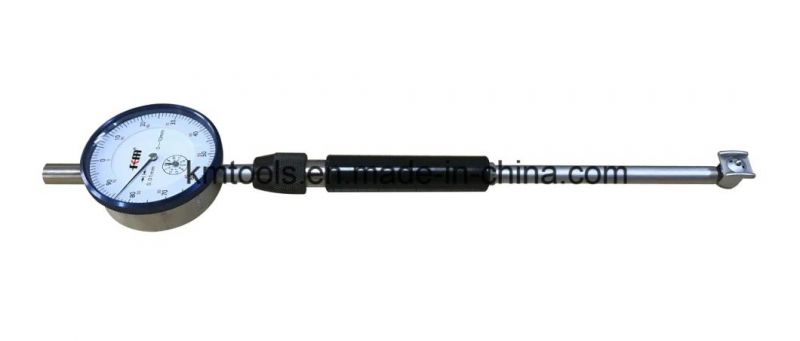

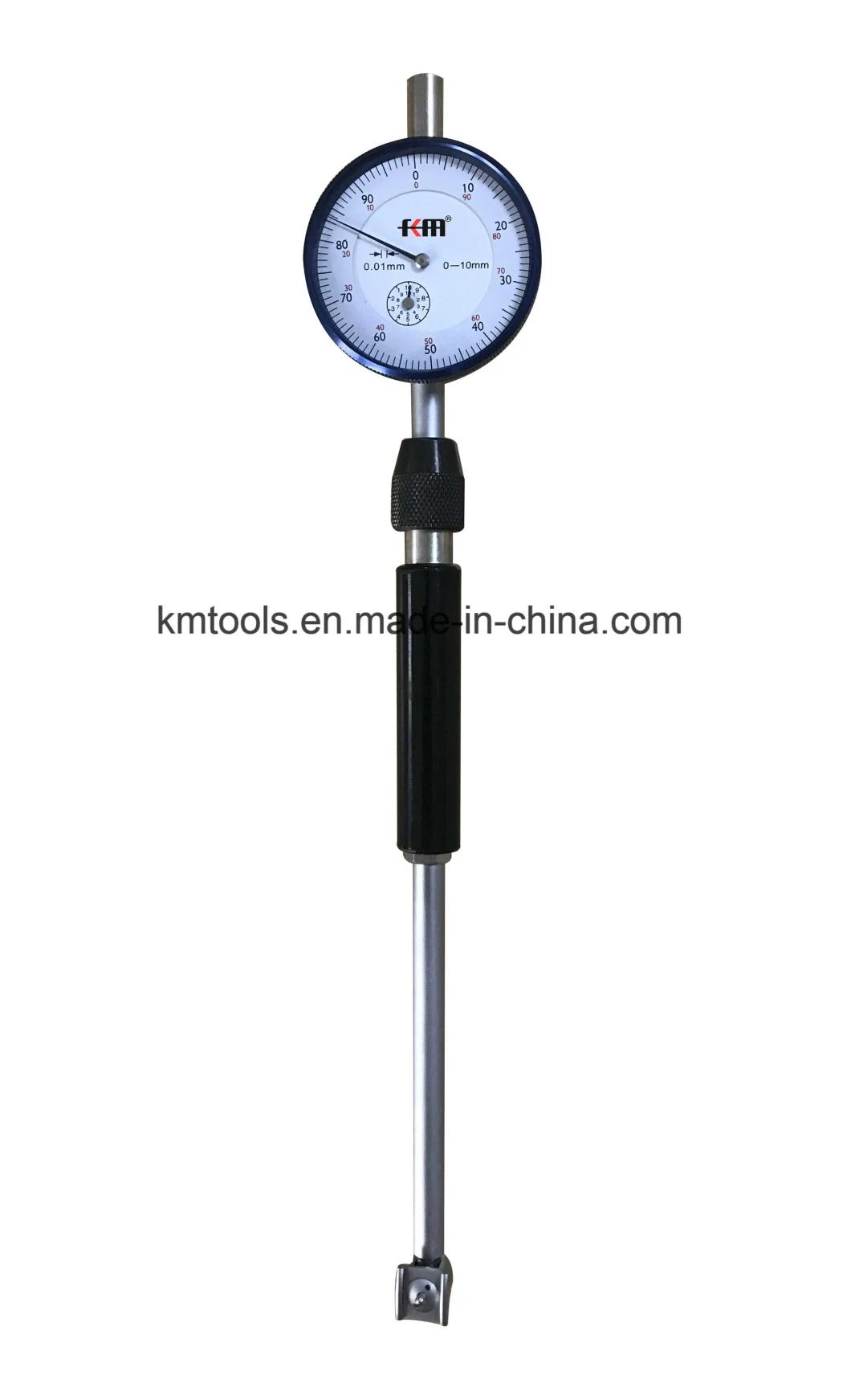

High Quality 18-35mm Inner Diameter Dial Indicator Bore Gauge for 0.01mm
Deko Corporation- Type：Dial Bore Gauge
- Measurement Object：Inside Diameter
- Range：18-35mm
- Resolution：0.01mm
- Measure Method：Manual
- Precision Measuring Device：Precision Measuring Device
Base Info
- Model NO.：KM-DB35
- Certification：DIN, GB, RoHS, ISO
- Customized：Customized
- Measuring Depth：125mm

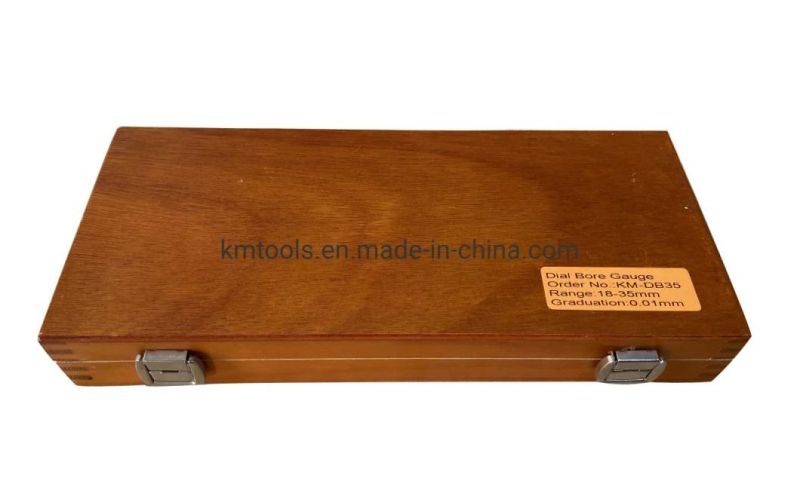

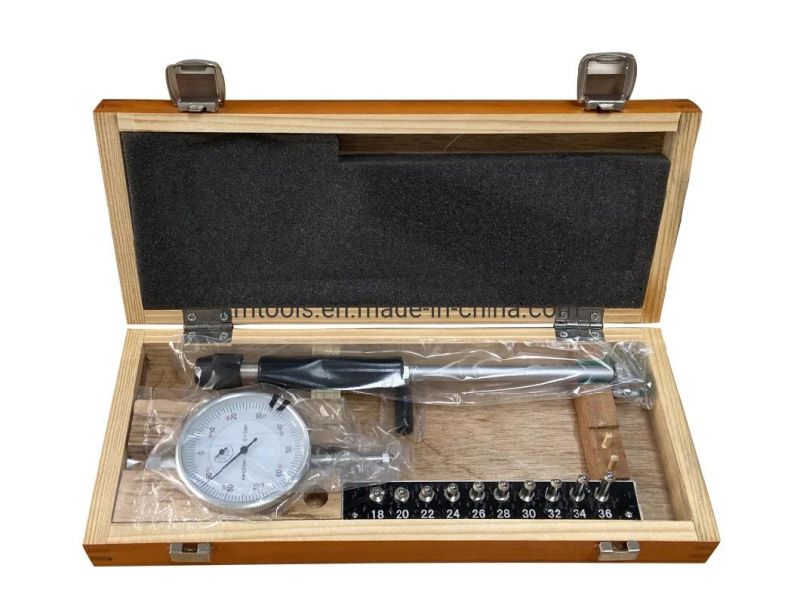

- Transport Package：ABS Box or Wood Box
- Specification：GB Standard
- Trademark：KM
- Origin：Shaanxi, China
- HS Code：9017300000
- Production Capacity：50000pieces,Month
Description
Basic Info.
Model NO. KM-DB35 Certification DIN, GB, RoHS, ISO Customized Customized Measuring Depth 125mm Transport Package ABS Box or Wood Box Specification GB Standard Trademark KM Origin Shaanxi, China HS Code 9017300000 Production Capacity 50000pieces/MonthProduct Description
Feature:
1. For internal measurement.
2. Stainless steel contacts hardened.
3. Supplied with 0.01mm or 0.001mm dial indicator.
Specification:
| Order No. | Measuring Range | Measuring Depth | Graduation |
| KM-DB10 | 6~10mm | 40mm | 0.01mm |
| KM-DB18 | 10~18mm | 100mm | 0.01mm |
| KM-DB35 | 18~35mm | 125mm | 0.01mm |
| KM-DB60 | 35~60mm | 137mm | 0.01mm |
| KM-DB150 | 50~150mm | 158mm | 0.01mm |
| KM-DB250 | 150~250mm | 366mm | 0.01mm |
| KM-DB450 | 250~450mm | 484mm | 0.01mm |
