Mini Digital Crane Scale (OCS-SF)

Hefei Brans Measuring And Controlling Technology Co., Ltd.
  • Accuracy：0.01kg
  • Working Type：Hanging Hook
  • Reading Type：Scale Body Display
  • Material：Steel
  • Measure Method：Automatic
  • Display Type：5 Wires

Base Info

  • Model NO.：OCS-SF
  • Environment：Room Temperature
  • Sensor Type：Resistance Strain
  • Data Stabilization Treatment：Static Type
  • Customized：Customized
  • Capacity：30kg to 300kg
  • Type：Waterproof Crane Scale
  • Unit：N, Lb, Kg
  • Transport Package：Woden Case
  • Specification：300*170mm
  • Trademark：BRANS
  • Origin：China
  • HS Code：84238930
  • Production Capacity：50900PCS,Year

Description

Basic Info.

Model NO. OCS-SF Environment Room Temperature Sensor Type Resistance Strain Data Stabilization Treatment Static Type Customized Customized Capacity 30kg to 300kg Type Waterproof Crane Scale Unit N, Lb, Kg Transport Package Woden Case Specification 300*170mm Trademark BRANS Origin China HS Code 84238930 Production Capacity 50900PCS/Year

Product Description

  1. Name: High accuracy digital crane scale

  2. Type: OCS-SF series

  3. Material:Alloy steel load cells with steel shell

  4. Capacity: 30kg to 300kg

  5. Features:

    (1)Rotating hook: 360°safe rotated hook, convenient to use.

    (2)Enclosure: NEMA 12/IP54 powder coated Die-Casting Plastic, very light, easy to bring.

    (3) Multi-weighing units: Kg, lb, N are selectable, kg are default unit.

    (4) Multi-function operation: Tare, Zero, Auto zero tracking, Total, Hold, Overload warning and record, Battery Operated with low battery indication, Automatic turn off , power-saving function, parameter setting and calibration through infrared remote controller.

    (5) Gravity regulation: Tare    ;Zero;Auto zero tracking;Total;Hold; Overload warning,ope

    (6) Multi options: RS-232-continuous or on demand data output, user-selectable.

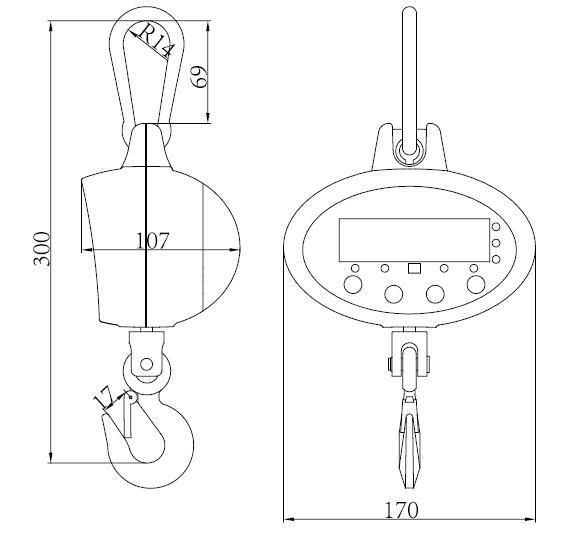

6. Design
Mini Digital Crane Scale (OCS-SF)Mini Digital Crane Scale (OCS-SF)

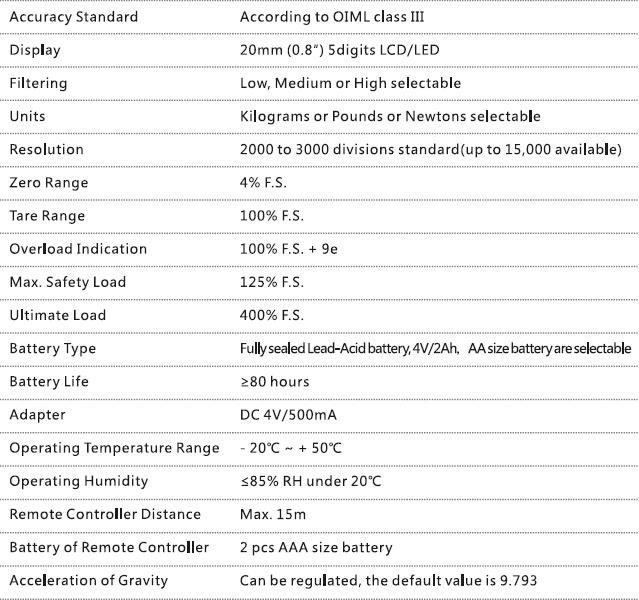

7. Datasheet

Mini Digital Crane Scale (OCS-SF)

Brans could supply you various small or big capacity crane scales. And we also could make new design or manufacture according to your own design. Dynamometer, dyna-link or crane testing scales are OK for us.
