Dial Co-Axial Centering Alignment Indicator Metric
Hangzhou Allendale Limited- Type:Dial Indicator
- Measurement Object:Length
- Resolution:0.01mm
- Precision:0.01mm
- Measure Method:Manual
- Accuracy:A
Base Info
- Model NO.:ME-DIAL-CENT
- Precision Measuring Device:Precision Measuring Device
- Customized:Non-Customized
- Transport Package:Box
- Specification:Weight (grams): 777.0000
- Trademark:Machine-DRO
- Origin:China
Description
Basic Info.
Model NO. ME-DIAL-CENT Precision Measuring Device Precision Measuring Device Customized Non-Customized Transport Package Box Specification Weight (grams): 777.0000 Trademark Machine-DRO Origin ChinaProduct Description
Key Features- Locate Workpiece Centre - Simple method of centering a workpiece, fixture or assembly
- Internal and External - Find the centre on internal or external diameters
- Easy Operation - The outer body and indicator dial remains stationary while the center spindle with the feeler attached rotates
- This allows the indicator dial to always face the operator. A retaining arm is included to hold the head in a convenient position
- Large Diameter Working Area - The combination of straight and offset feelers in different lengths allows a large work area to be covered
- Metric Dial - The dial has a metric scale used as a reference, when finding the center
- Hand or Motor Spindle Driven - The machine spindle can either be rotated by hand or using the motor up to a maximum of 500 rpm

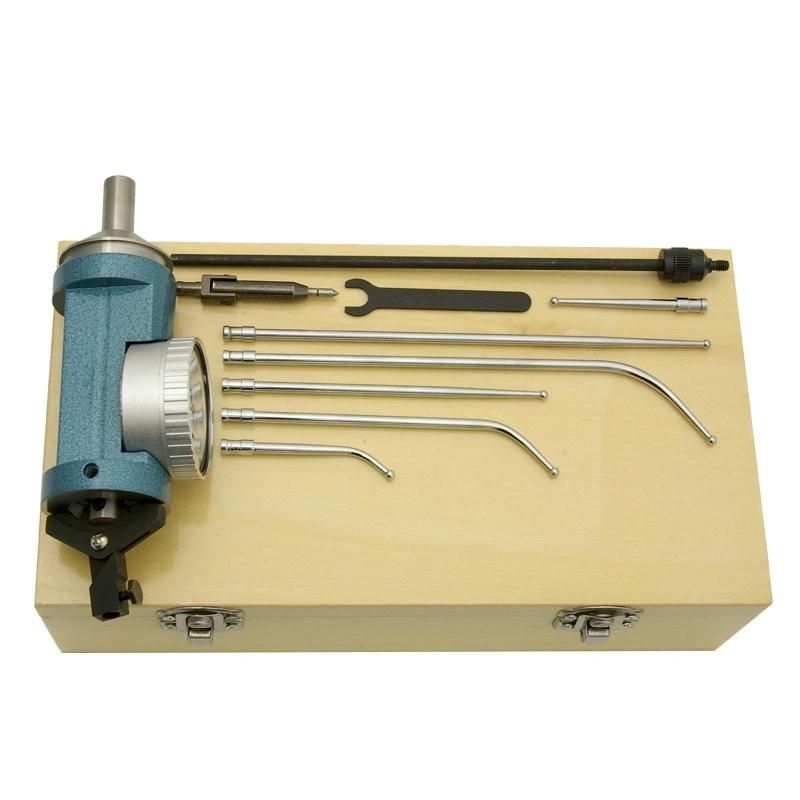

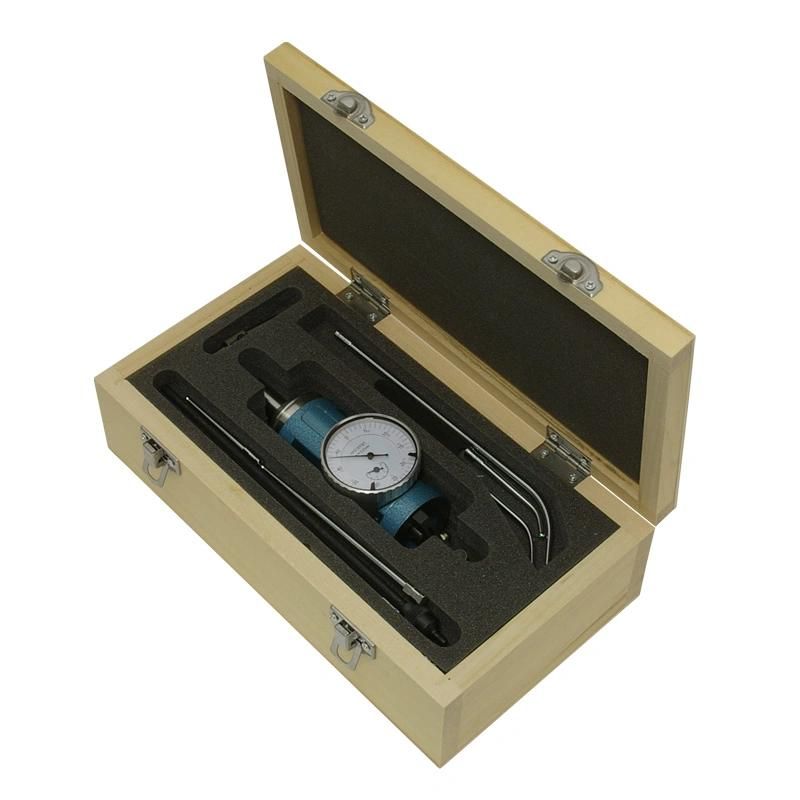

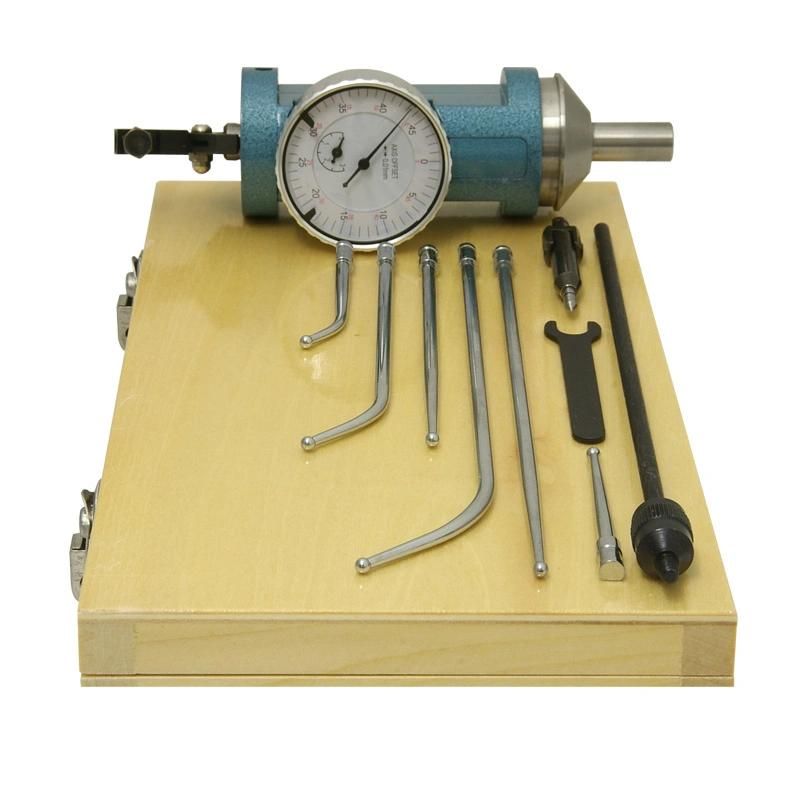

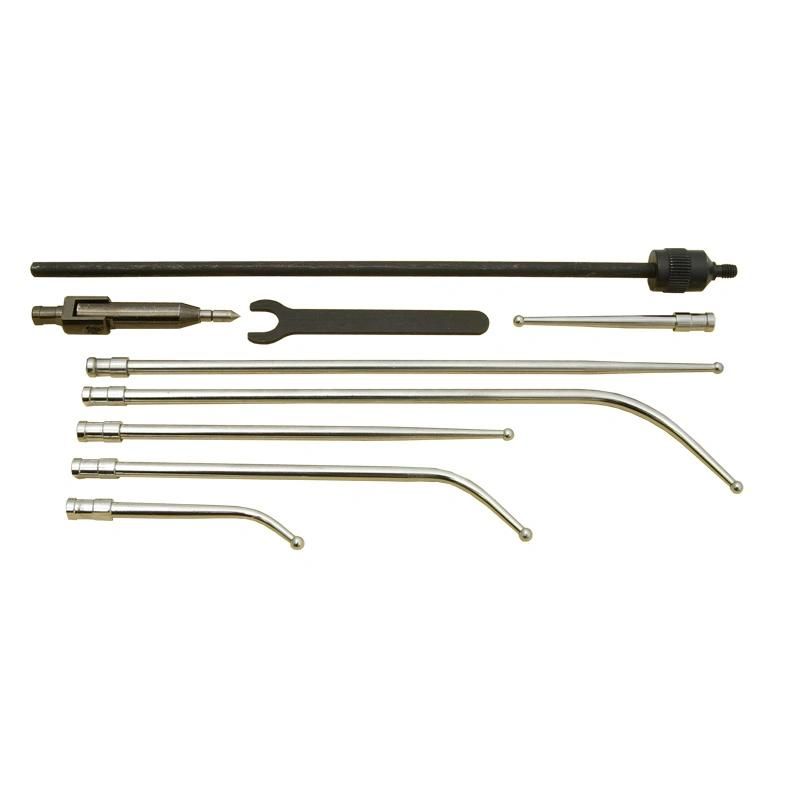

- Included with the CO-AX Centering gauge - Main body with indicator dial, 3 off straight feelers, 3 off curved feelers, center locating feeler, spanner, retaining arm, storage case and instructions
- Dial diameter - 40mm (1 5/8inch)
- Body length - 120mm (4 5/8 inch)
- Spindle length - 20mm (12/16 inch)
- Spindle Diameter - 10mm
- Straight feeler - 40mm (1 9/16inch), 90mm (3 9/16inch), 144mm (5 11/16inch)
- Curved feeler - 42mm (1 11/16inch), 92mm (3 5/8inch), 142mm (5 5/8inch)
