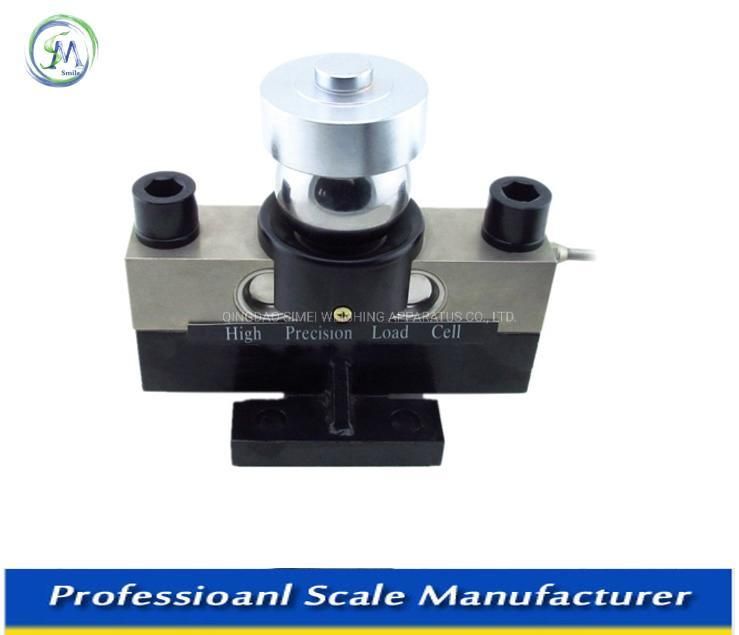

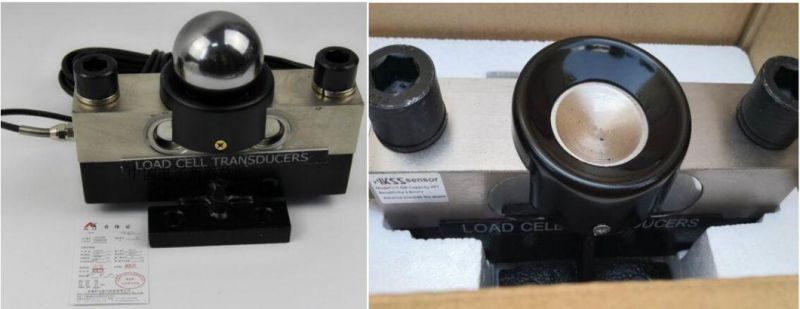

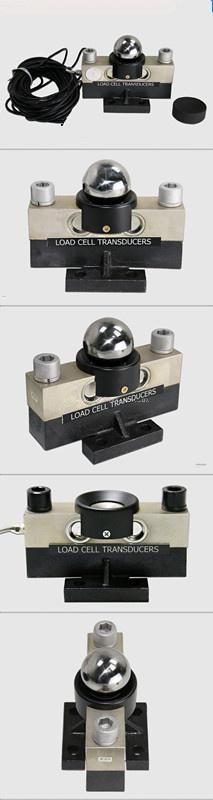

Keli OIML QS Weighbridge Load Cell for Truck Scale

QINGDAO SIMEI WEIGHING APPARATUS CO., LTD.
  • Structure:Mechanical and Electrical Scale
  • Display Type:LED
  • Sensor:Digital Scale
  • Installation:Weighbridge
  • Automation:Non Automation
  • The Weighing Method:Dynamic Weighbridge

Base Info

  • Model NO.:DCS
  • Scale Structure:Steel I Beam
  • Operating Environment:Non Explosion Proof Loadometer
  • Lightning Protection:With Lightning Protection
  • Transport Package:Platforms Are Packed by Film or Color Strip
  • Specification:30T
  • Trademark:SIMEI
  • Origin:China
  • HS Code:9031809090
  • Production Capacity:50000PCS,Year

Description

Basic Info.

Model NO. DCS Scale Structure Steel I Beam Operating Environment Non Explosion Proof Loadometer Lightning Protection With Lightning Protection Transport Package Platforms Are Packed by Film or Color Strip Specification 30T Trademark SIMEI Origin China HS Code 9031809090 Production Capacity 50000PCS/Year

Product Description

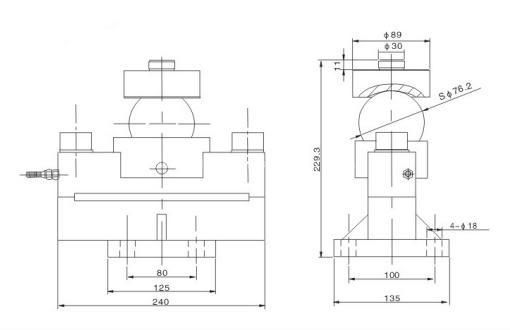

Dimention Diagram :

Keli OIML QS Weighbridge Load Cell for Truck Scale


A load cell is actually a device that converts a quality signal into a measurable electrical signal output.

The sensor should first consider the actual working environment of the sensor. This is the correct choice of the load cell, which is related to the normal operation of the sensor and its service life, and even the reliability and safety of the entire scale. On the basic concepts and evaluation methods of the main technical indicators of the load cell, there are qualitative differences between the old and new national standards.

Keli OIML QS Weighbridge Load Cell for Truck Scale


Specification :
Accuracy class                                                                               C3
Rated output                                                               2.0±0.002mV/V
Temperature effect on zero                                       ±0.02%F. S/10ºC
Temperature effect on sensitity                                 ±0.02%F. S/10ºC
Creep (30 min)                                                                  ±0.02%F. S
 Input resistance                                                                     760±10Ω
       Output resistance                                                                     702±2Ω
Operating temperature range                                       -30ºC ~ +70ºC
Safe overload                                                                      150%F. S
Destructive load                                                                   300%F. S
     Excitation recommend                                         4~12VDC, max 15VDC
Construction                                                                         Alloy steel
Protection class                                                                            IP68
Cable length                                                                                  20m



Keli OIML QS Weighbridge Load Cell for Truck Scale   Keli OIML QS Weighbridge Load Cell for Truck Scale

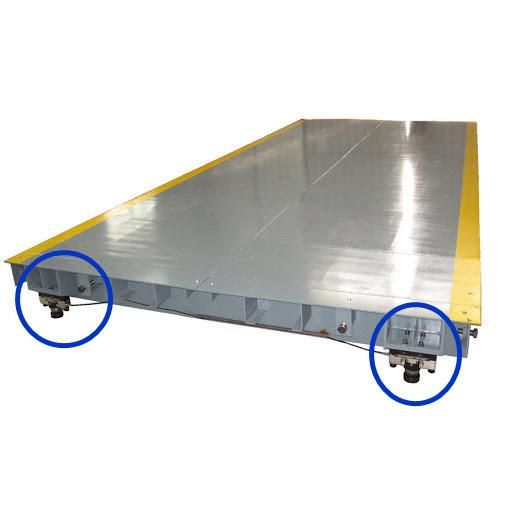

APLLICATION

Keli OIML QS Weighbridge Load Cell for Truck Scale

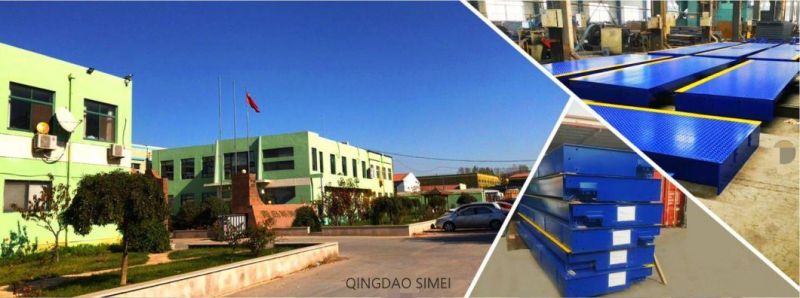

Company profile :
