• Model NO.：dexu1101
• Measure Method：Automatic
• Accuracy：A
• Precision Measuring Device：Precision Measuring Device
• Certification：CE, ISO
• Customized：Customized
• Transport Package：Seaworth Packaging
• Trademark：DEXU
• Origin：Qingdao
• HS Code：4710000
• Production Capacity：50000set

Basic Info.

Model NO. dexu1101 Measure Method Automatic Accuracy A Precision Measuring Device Precision Measuring Device Certification CE, ISO Customized Customized Transport Package Seaworth Packaging Trademark DEXU Origin Qingdao HS Code 4710000 Production Capacity 50000set

Product Description

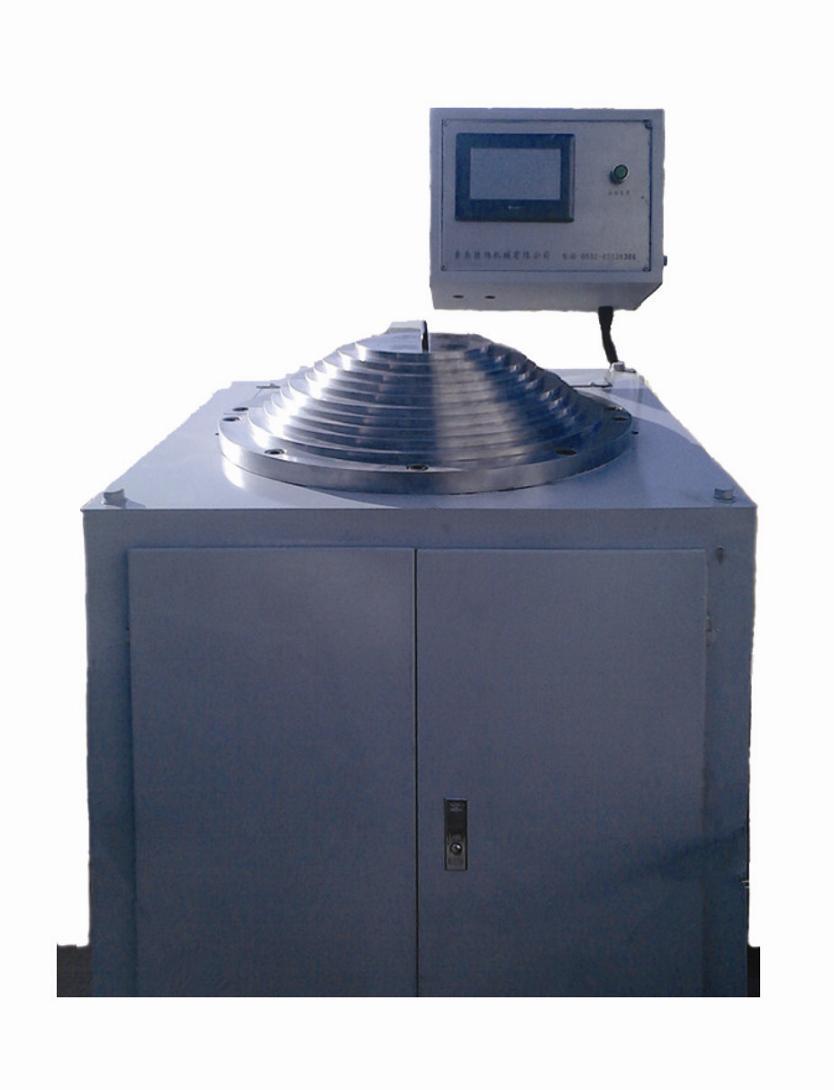

Steel wire Bead circumference measuring instrument
 The equipment is used for testing the bead wire from coil winding whether meet the requirements of accurate measurement equipment. When the bead winding machine adjust specifications or working for some time, need to use this machine to test the accuracy of the bead around the plate . The device can automatically measure the inside diameter of each bead or perimeter, by comparing with the standard data to determine whether it is qualified, while also being able to store down the measurement data. The machine equipped with human-machine interface , easy operation and the data setting is very convenient and intuitive.

Main technical parameters:
  1 , wire circle inside diameter measurement accuracy ± 0.1MM.
  2 , wire circle inside circumference measurement accuracy ± 0.3MM.
  3 , the wire bead inside diameter Repeatability accuracy : ± 0.1MM / 10 times
  4 , the measurement time : 3-5 seconds / time
  5, bead measurement data is automatically saved , saved data contains : ( 1 ) testing dates ( 2 ) bead size ( 3 ) set data ( 4 ) Measured diameter ( 5 ) measured the circumference
  6, PLC will be automatically saved test data, saving datas of 200 groups , the amount of data exceeds 200 groups automatically updated

Steel wire Bead circumference measuring instrument
1.Auto.measure equipment
2.Easy to operate
3.Easy maintenance
4.ISO9001
