• Model NO.：DEXU5030
• Measure Method：Automatic
• Accuracy：A
• Precision Measuring Device：Precision Measuring Device
• Certification：CE, ISO
• Customized：Customized
• Transport Package：Wooden Case
• Trademark：DEXU
• Origin：Qingdao
• HS Code：4710000
• Production Capacity：50000set

Basic Info.

Model NO. DEXU5030 Measure Method Automatic Accuracy A Precision Measuring Device Precision Measuring Device Certification CE, ISO Customized Customized Transport Package Wooden Case Trademark DEXU Origin Qingdao HS Code 4710000 Production Capacity 50000set

Product Description

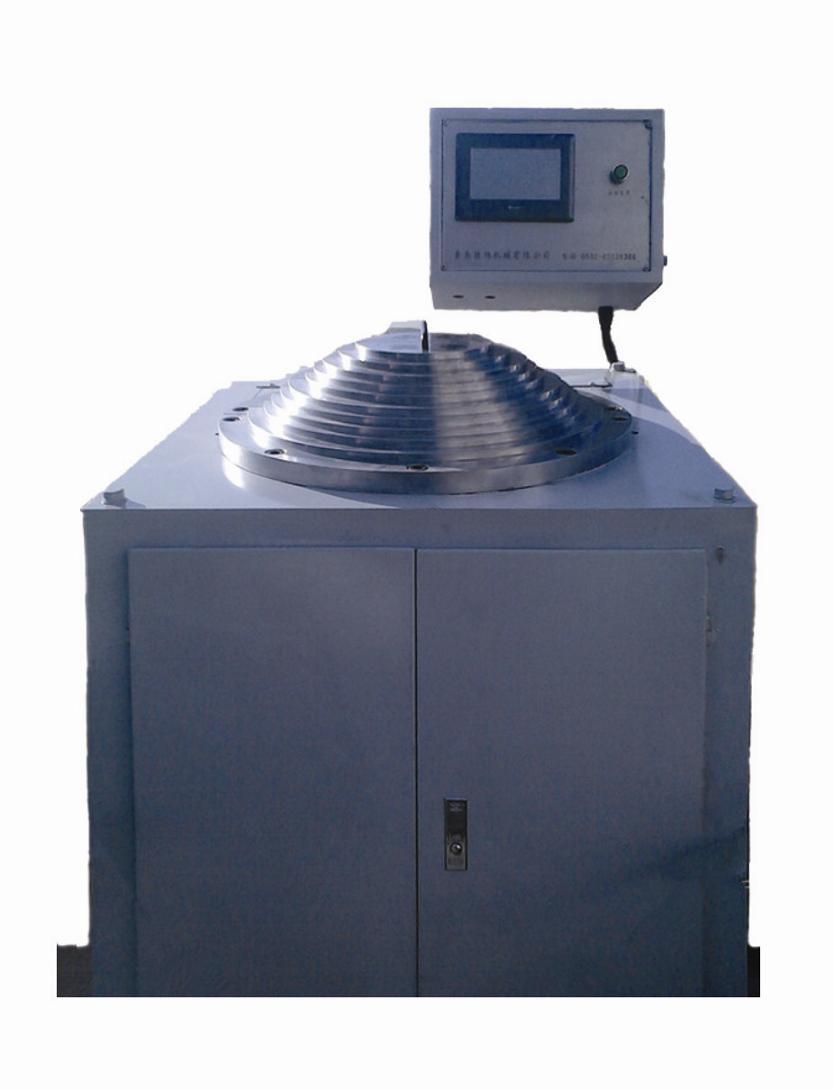

Steel wire Bead circumference measuring instrument
The equipment is used for testing the bead wire from coil winding whether meet the requirements of accurate measurement equipment. When the bead winding machine adjust specifications or working for some time, need to use this machine to test the accuracy of the bead around the plate . The device can automatically measure the inside diameter of each bead or perimeter, by comparing with the standard data to determine whether it is qualified, while also being able to store down the measurement data. The machine equipped with human-machine interface , easy operation and the data setting is very convenient and intuitive.

Main technical parameters:
  1 , wire circle inside diameter measurement accuracy ± 0.1MM.
  2 , wire circle inside circumference measurement accuracy ± 0.3MM.
  3 , the wire bead inside diameter Repeatability accuracy : ± 0.1MM / 10 times
  4 , the measurement time : 3-5 seconds / time
  5, bead measurement data is automatically saved , saved data contains : ( 1 ) testing dates ( 2 )  bead size ( 3 ) set data ( 4 ) Measured diameter ( 5 ) measured the circumference
  6, PLC will be automatically saved test data, saving datas of 200 groups , the amount of data exceeds 200 groups automatically updated

Steel wire Bead circumference measuring instrument
1.Auto.measure equipment
2.Easy to operate
3.Easy maintenance
4.ISO9001

Patent for the machine



Company information


QINGDAO DEXU MACHINERY CO., LTD.  Located in the machinery manufacture base of QINGDAO City,we have more than 20 years experience of R&D and sales, pass of ISO 9000 management system & CE quality certification. As one of the leading machinery manufacturers such as:Foundry equipment,Shot/Sand blasting machine,dust collect equipment,engineer machine,,filling machine.Based on the professional technical team, we undertake the design and construction of the whole production line .Professional skills welcome to cooperate with friends all over the world!





FAQ
a.What is your parts going to be blasted?
It is better you tell us the parts going to be blasted, then we can select the suitable machine for you.
b.What is the max and min dimension of your parts?
Yes, if you can let us know the dimension, we can design proper shot blasting machine size for you to reduce the investment money.
c.How many pieces of your parts blasted per day in 8 hours?
Yes, according to your productivity requirement, we design suitable capacity machine for you.
d.What is the lead time of our shot blasting machine?
For small machines, usually we have stock in factory.
Big machines, the lead time is usually 45 to 60 days.
e.Are the machine tested before shipping?
Yes, all of our machines are tested before shipment.
f.What's your quality guarantee?
Quality guarantee time is one year.
g.Are you able to give Installation and commissioning overseas ? How long will it take?
Yes, we supply overseas service, but customer needs to pay for the engineers flight tickets.
Small machine usually takes 2 to 4 days.
Big machine usually takes 20-25 days.
