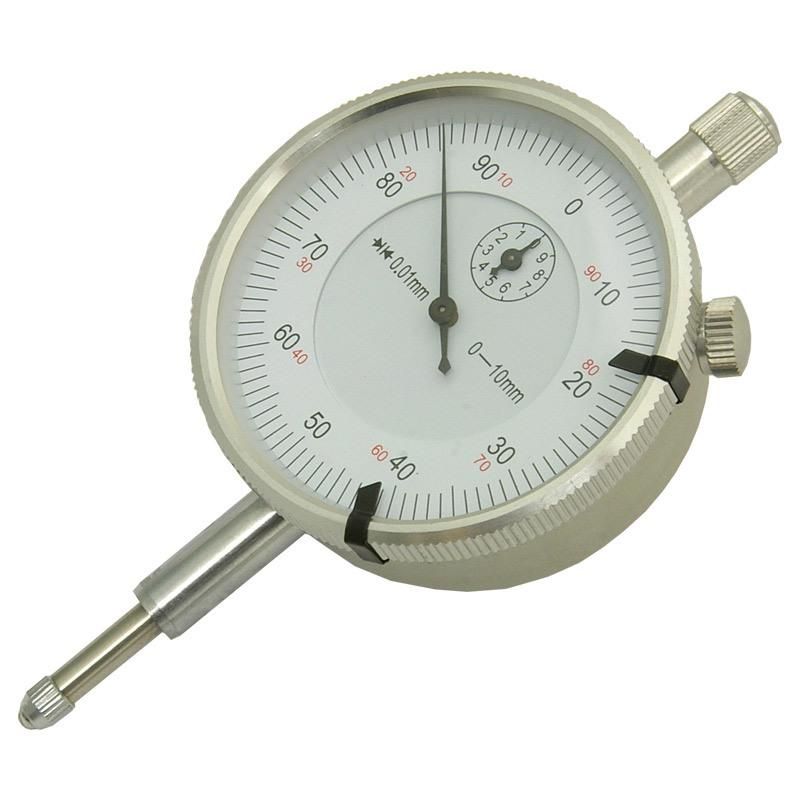

0-10mm Range Metric Dial Indicator Gauge
Hangzhou Allendale Limited- Type：Dial Indicator
- Material：Stainless Steel
- Measurement Object：Length
- Range：0-10mm.
- Resolution：0.01mm
- Precision：0.01mm
Base Info
- Model NO.：ME-DIAL-GAU-10
- Measure Method：Manual
- Accuracy：A
- Precision Measuring Device：Precision Measuring Device
- Customized：Non-Customized

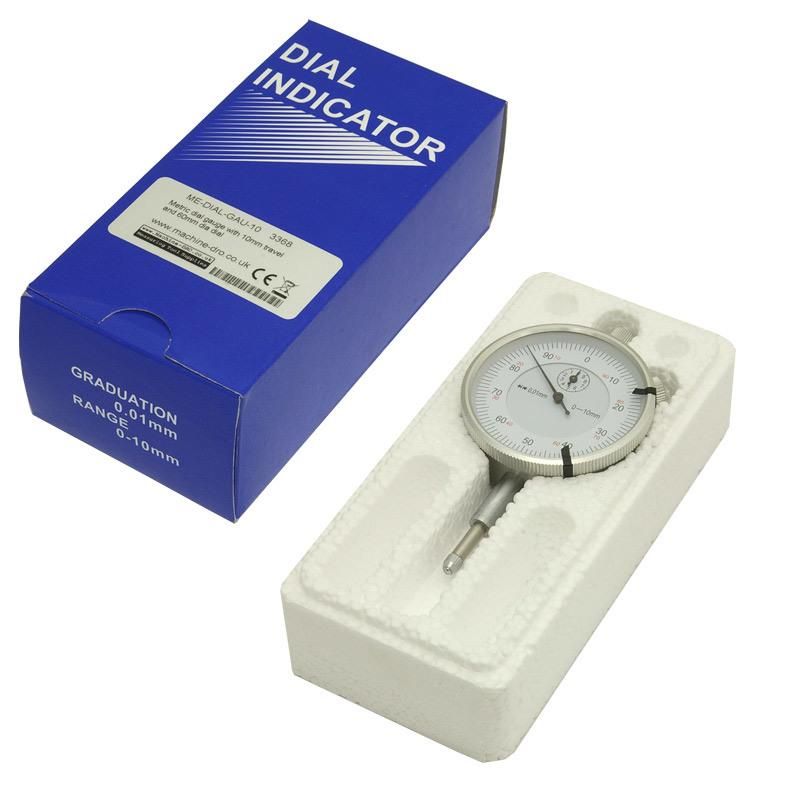

- Transport Package：Box
- Specification：Weight (grams): 160.0000
- Trademark：Machine-DRO
- Origin：China
Description
Basic Info.
Model NO. ME-DIAL-GAU-10 Measure Method Manual Accuracy A Precision Measuring Device Precision Measuring Device Customized Non-Customized Transport Package Box Specification Weight (grams): 160.0000 Trademark Machine-DRO Origin ChinaProduct Description
Key Features- 0-10mm Measuring Range - Plunger travel of 10mm, with removable contact tip

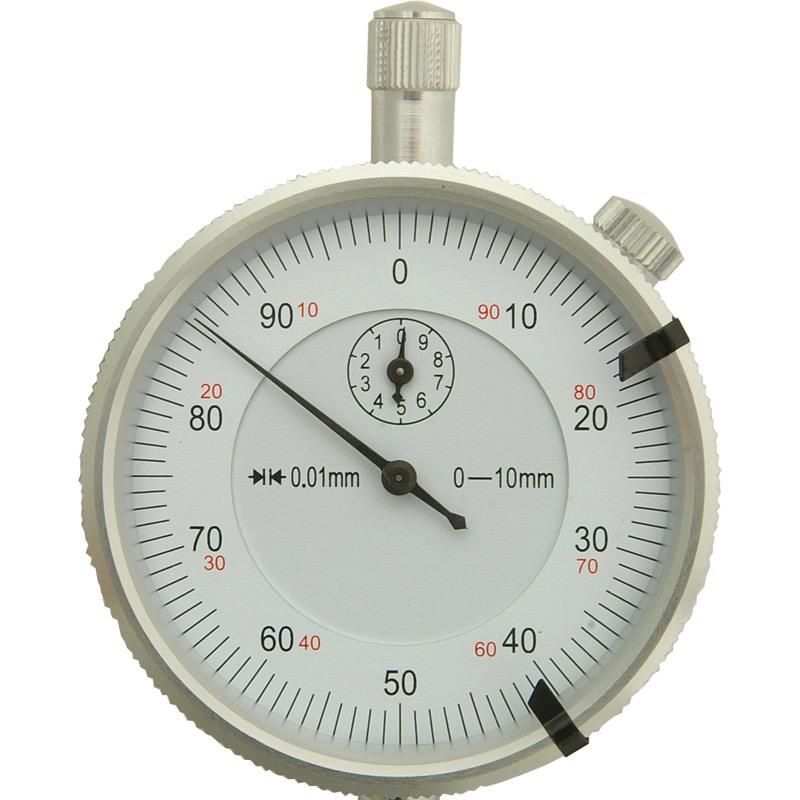

- Large Diameter Dial - 52mm diameter dial with clear 0.01mm graduations.
- Adjustable Dial - Adjustable dial face for zero setting with lock and tolerance pointers

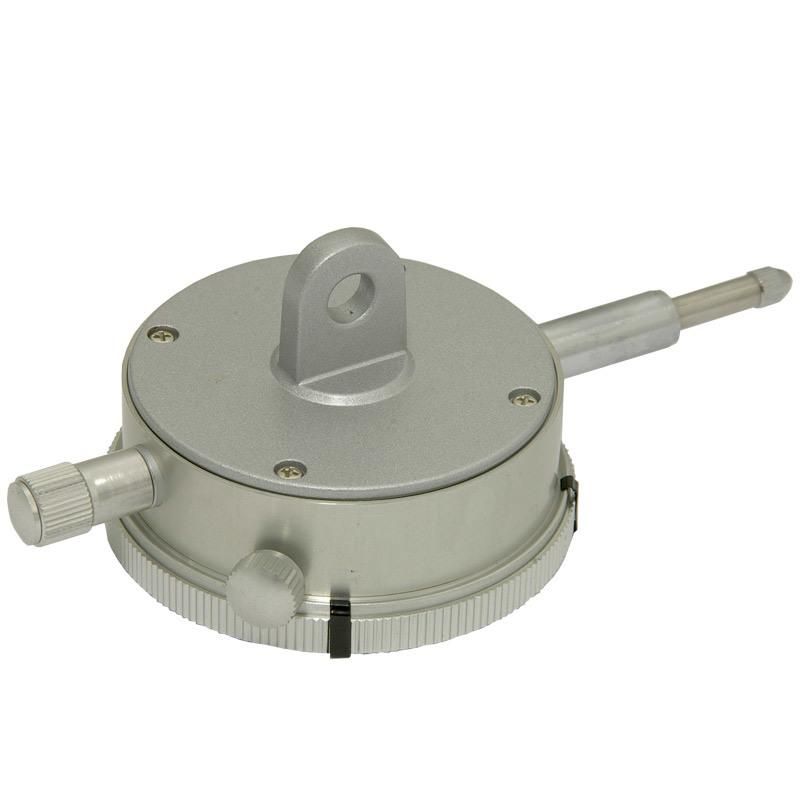

- Two Mounting Options - Mounting via the 8mm stem or mounting lug fitted to the back of the gauge with a 6.5mm diameter mounting hole
-
0-10mm Range Imperial Dial Indicator Gauge
Key Specifications
- Range - 0-10mm.
- Dial Diameter - 52mm.
- Graduation - 0.01mm.
- Stem Diameter - 8mm.
- Lug Mounting Diameter - 6.5mm.
- Overall Length - 114mm.
