Rotary Angle Encoder and Remote Display, with a 6mm Diameter Shaft.
Hangzhou Allendale Limited- Type:Angle Tilt Inclinometer
- Measurement Object:Tilt
- Range:0-360 Degrees
- Resolution:+,-0.1 Degrees
- Precision:+,-0.1 Degrees
- Measure Method:Automatic
Base Info
- Model NO.:ME-AN-REM-ROT
- Accuracy:A
- Precision Measuring Device:Precision Measuring Device
- Customized:Non-Customized
- Transport Package:Box
- Specification:Weight (grams): 220.0000
- Trademark:Machine-DRO
- Origin:China
Description
Basic Info.
Model NO. ME-AN-REM-ROT Accuracy A Precision Measuring Device Precision Measuring Device Customized Non-Customized Transport Package Box Specification Weight (grams): 220.0000 Trademark Machine-DRO Origin ChinaProduct Description

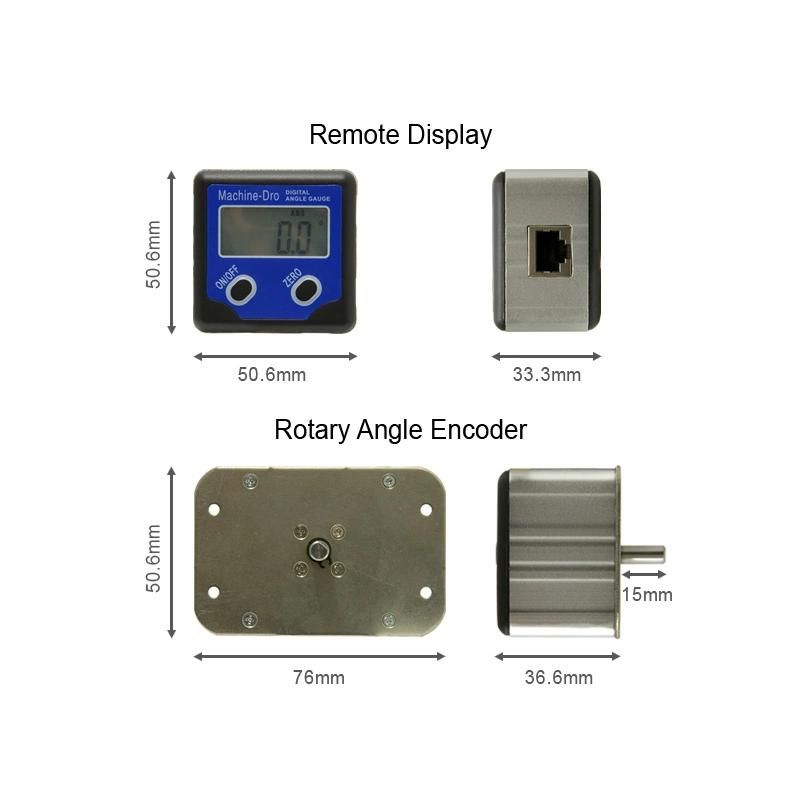

Key Features- Rotary angle encoder with a remote LCD display with a resolution of 0.1 degrees.
- The remote display has the on/off button and a zero function button allowing the display to be set to zero degrees in any position.

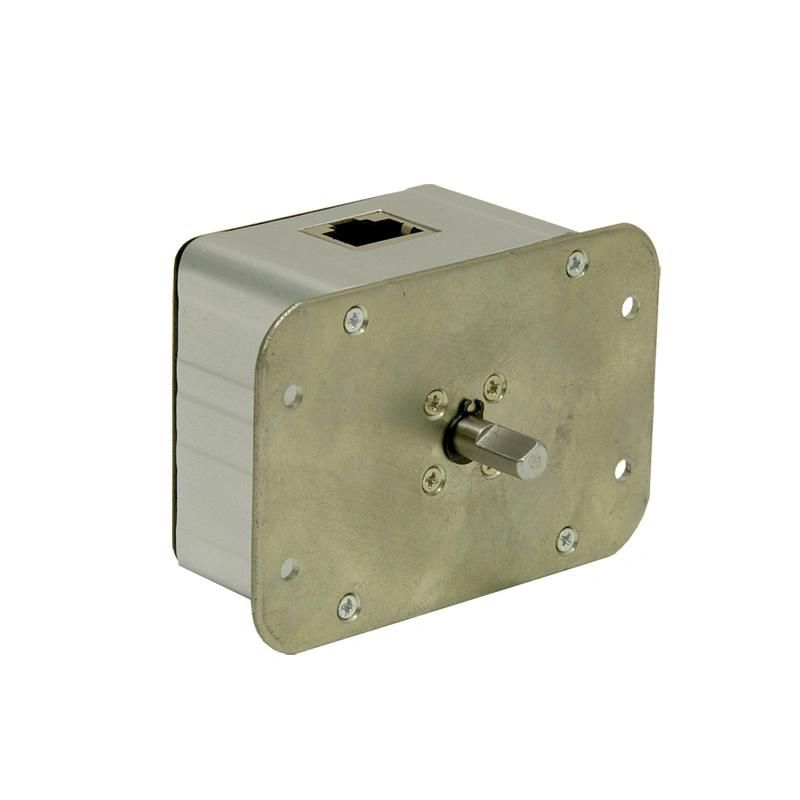

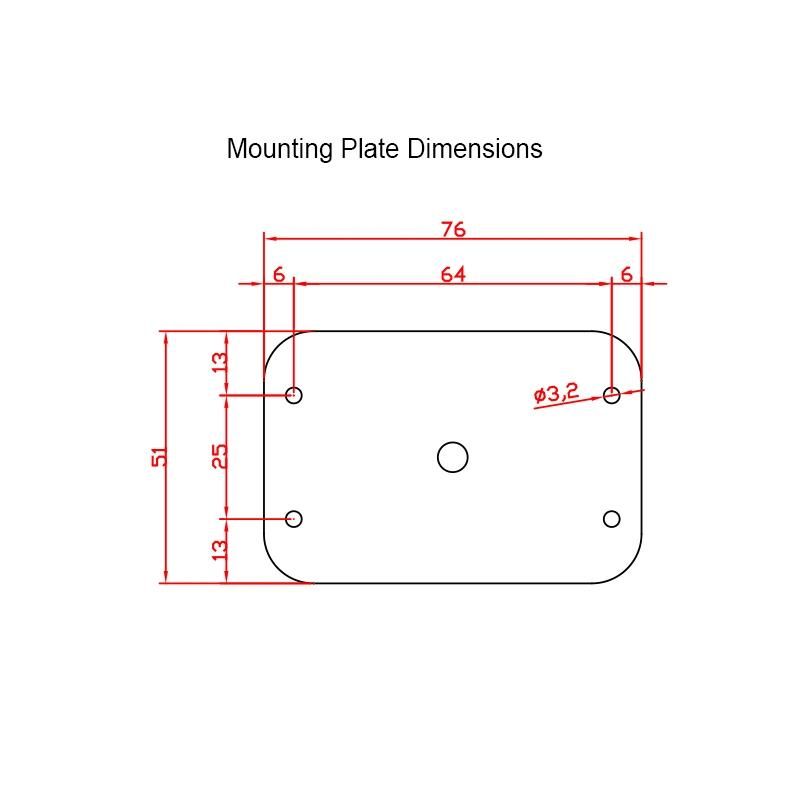

- The rotary encoder has a flat steel flange with four mounting holes and 6mm diameter shaft.

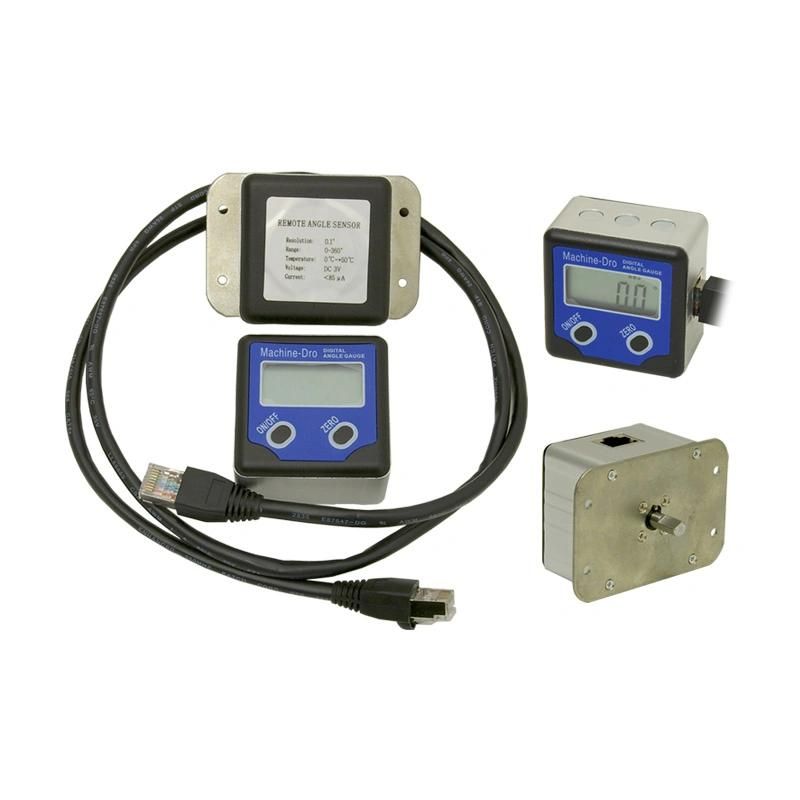

- The Display is linked to the rotary encoder by a standard RJ45 cable. This allows the display and encoder to be disconnected. A 900mm cable is included.
- The gauge is powered by a standard CR2032 battery located behind a twist lock compartment on the rear of the display.
- We would recommend that 5 metres is the maximum cable length when using the Angle Tilt Sensor/Inclinometer.
- Cables can be extended to 5 metres but please note that this must be a RJ45 Cat 5 lead that is screened. If not not there may be interference issues.
- Please Note: The rotary encoder must not be used at high speed/rpm. Protect encoder from coolant and moisture ingress.
- Applications Include : Rotary tables, Dividing heads, Angle table, Telescopes, Tilting angle plates, Milling machine head angle etc.
- Accuracy - +/-0.1 degrees.
