• Model NO.：G05
• Usage：For Working, For Inspection, For Checking
• Shape：Rectangular
• Customized：Customized
• Hardness Value：60HRC
• Application：Dimension Check
• OEM：Customized
• Delivery：by Express
• Transport Package：Plastic Box
• Specification：Customized
• Origin：Shenzhen
• HS Code：9017300000
• Production Capacity：40000 PCS Per Month

Basic Info.

Model NO. G05 Usage For Working, For Inspection, For Checking Shape Rectangular Customized Customized Hardness Value 60HRC Application Dimension Check OEM Customized Delivery by Express Transport Package Plastic Box Specification Customized Origin Shenzhen HS Code 9017300000 Production Capacity 40000 PCS Per Month

Product Description

Knowledge:
*What is a plug gauge used for?
Plug gauges, in some cases called pin gauges, are metrology tools whose purpose is to gauge the inside diameters of holes that have been drilled or machined into a manufactured part, component, or assembly.

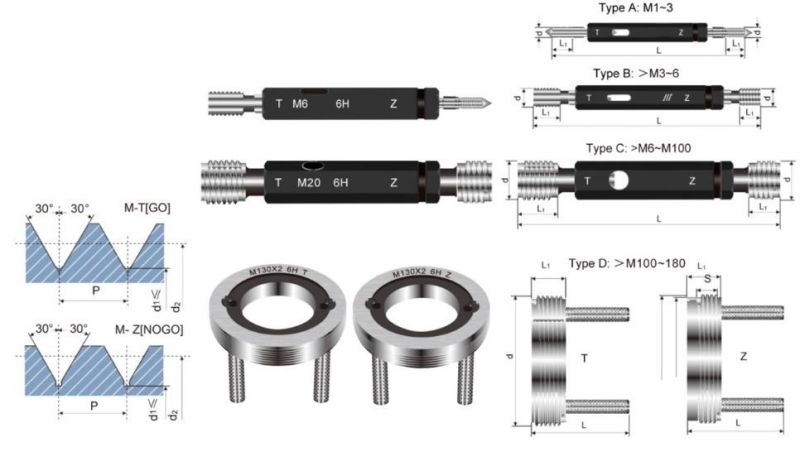

*What is a thread plug gauge?Thread plug gages are used to check tolerances of threaded parts according to a certain specification. These highly specific calibration tools are used to assure the assembly of mating parts and provide quality control and conformity to standards. Most have two ends: a GO and a NO GO.

*Is standard for plug gauge?
The standards most used in the manufacture of plain gauges (rings, plugs, gap gauges, and flat limit gauges) are NF E 02.202 and NF E 02.205.

*What is go limit?
Explanation: 'Go' limit is applied to the limit corresponds to a maximum material limit condition that is the lower limit of the hole and upper limit of the shaft while 'No Go' limit is applied to the minimum material condition that is the upper limit of a hole and lower limit of a shaft.
