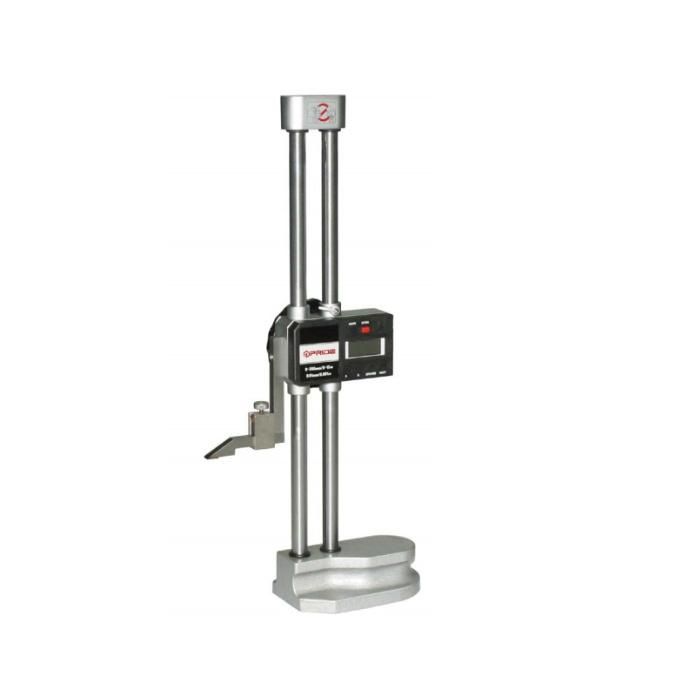

Double Column LCD Display Digital Height Gauge Measuring Tools

Shenzhen Pride Instrument Inc.
  • Type：Digital Height Gauge
  • Material：Stainless Steel
  • Measurement Object：Height
  • Range：0～300mm
  • Resolution：0.01mm
  • Precision：0.05mm

Base Info

  • Model NO.：P6013-300
  • Measure Method：Manual
  • Accuracy：A
  • Precision Measuring Device：Precision Measuring Device
  • Certification：JIS, DIN, ANS, GB, CE, UL, RoHS, ISO
  • Customized：Customized
  • Transport Package：Well Package
  • Specification：40*30*70
  • Trademark：pride
  • Origin：China
  • Production Capacity：1000piece,Month

Description

Basic Info.

Model NO. P6013-300 Measure Method Manual Accuracy A Precision Measuring Device Precision Measuring Device Certification JIS, DIN, ANS, GB, CE, UL, RoHS, ISO Customized Customized Transport Package Well Package Specification 40*30*70 Trademark pride Origin China Production Capacity 1000piece/Month

Product Description

Double Column LCD Display Digital Height Gauge Measuring ToolsSmooth operation of slide carriage using crank wheel. With fine adjustment. Metric/Inch system interchange. OFF/ON P-: Negative preset, P+: Positive preset ZERO/ABS Relative/Absolute measuring shifter RESET: preset/Set to zero for display. Dial Indicator mounting arm accepts φ6mm, φ8mm,and dovetail type indicators.(optional)Double Column LCD Display Digital Height Gauge Measuring Tools
Model No.RangeGraduationAccuracy
P6013-3000-300mm/0-12"0.01/ 0.001"±0.04mm/±0.0015''
P6013-4500-450mm/0-18"0.01/ 0.001"±0.05mm/±0.002''
P6013-5000-500mm/0-20"0.01/ 0.001"±0.05mm/±0.002''
P6013-6000-600mm/0-24"0.01/ 0.001"±0.05mm/±0.002''
P6013-10000-1000mm/0-40"0.01/ 0.001"±0.07mm/±0.0028''
