Ration Weighing Packing Controller for Packing Machine

Changsha Supmeter Technological Co., Ltd.
  • After-sales Service：24 Hours After-Sale Service
  • Warranty：12 Months
  • Weighing：30-300kg
  • Accuracy：0.2%-0.5%
  • Display Type：LED
  • Display Digits：6+8

Base Info

  • Model NO.：BST106-B66[A]
  • Measure Method：Semi-Automatic
  • Shell Material：Aluminum
  • Application：Packing Scale
  • Certification：CE
  • Customized：Customized
  • Sampling Frequency：400Hz
  • Di&Do：6*Di & 8*Do
  • Ao：4-20mA*1
  • Communication：RS232&RS485
  • IP Grade：IP65
  • Power Supply：24V
  • Communication Protocol：Modbus RTU
  • Transport Package：Carton Box
  • Specification：110*62*150mm [W*H*D]
  • Trademark：SUPMETER
  • Origin：China
  • HS Code：8537109090
  • Production Capacity：50000PCS,Year

Description

Product Overview

Main Application:

B66[A]: Single-weighing-hopper/bag Ration Packing Scale

B16[D]: Loss-in-weighing Ration Packing Scale





Main Features:

1:32-bit ARM CPU with 48MHz clock and high arithmetic speed.

2: Auto Zero Tracking

3: Fall Value Auto Correction

4: Target Batch Count & Target Batch Weight Control

5: Auto Pause for Deviation Alarm

6: Auto Re-feed for Negative Deviation Alarm

7: 3-speed[high/medium/low]feeding control by DOs or AOs

8: Definable AO/COM[Communication Port]





Technical Specifications:

Power SupplyAC24V±20%Display

6+8 Red Led Digital Tubes for English&Digit Display

Sampling Frequency400HzA/D Convert24-bitKeypad4 keys for Menu&Shortcut mode operation with key toneExcitation Voltage Output of LoadcellDC9VMax. Connection number of Loadcell4 Loadcells (350Ω)DI6 Normally Open Switch InputsDO8 Normally Open Transistor Switch OutputsAO1Analog Signal Output: 4~20mA.Communication PortCOM1:RS232 COM2:RS485Outline Dimension110 × 62 × 150 mm (W×H×D)Net Weight Approx. 1.5kgIP GradeIP65Packing Accuracy0.2%~0.5%Operatiing Temperature-25ºC~+45ºC

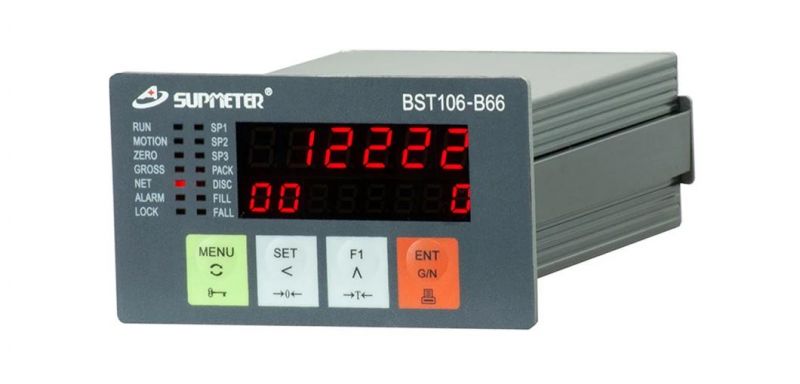

Product Show:
Ration Weighing Packing Controller for Packing Machine

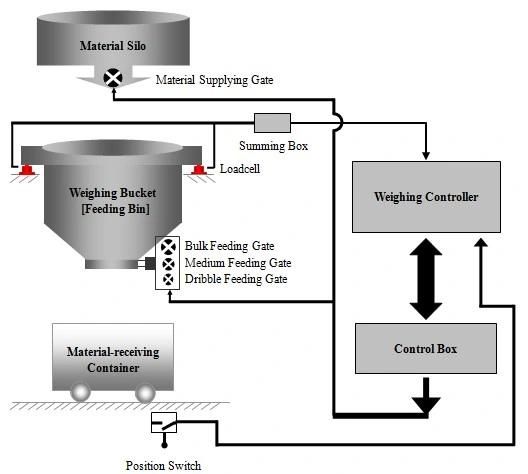

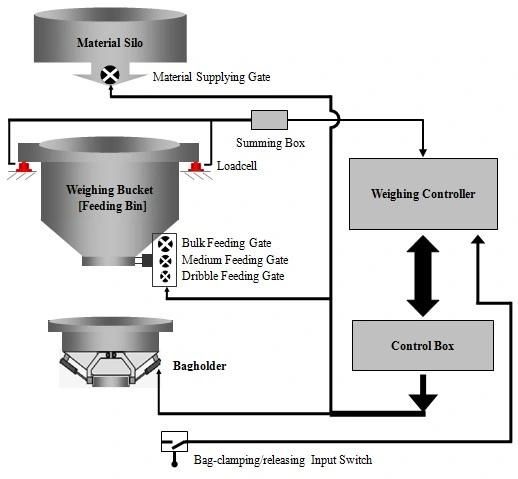

Application:

Ration Weighing Packing Controller for Packing Machine

Ration Weighing Packing Controller for Packing Machine

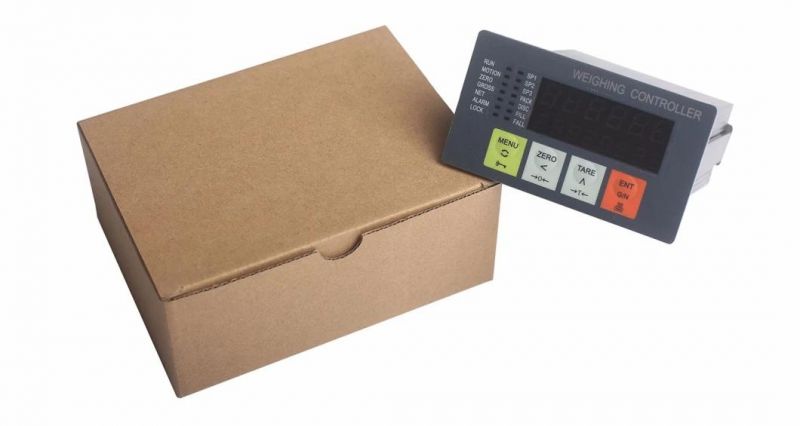

Package & Delivery:

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
 Ration Weighing Packing Controller for Packing Machine
Ration Weighing Packing Controller for Packing Machine

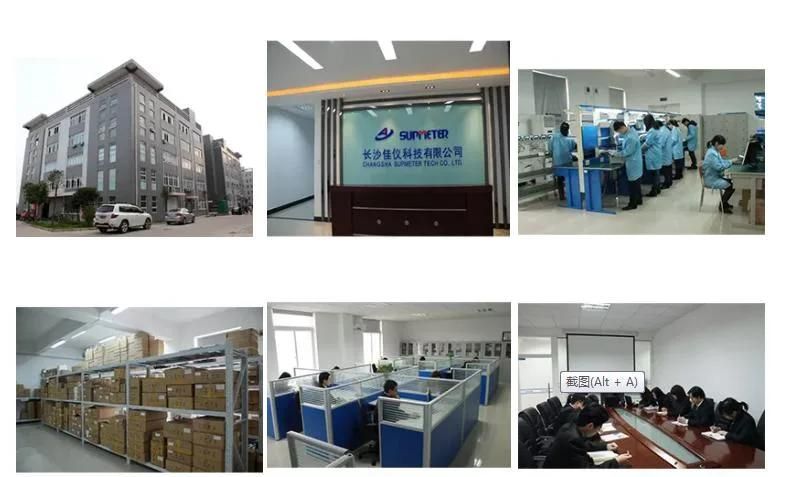

Company Profile:

Ration Weighing Packing Controller for Packing Machine

SUPMETER is an experienced manufacturer  which is working on manufacturing weighing indicator/controller. We have professional sales team, strong technical team and 24-hous working after-sale service. Cooperating with us, you will get high quality but low price products, fast and accurate delivery, family like service.
 Warranty

The warranty period for our products is 12 (twelve) months.

If the products from SUPMETER are proved to be unable to work normally due to unartificial reasons, and the problems can't be solved by customers under the technical support from SUPMETER, then customers can send the problematic items back to SUPMETER. SUPMETER is RESPONSIBLE to MEND (or REPLACE when necessary) them FREE OF CHARGE.

(Note: if after checking, the returned goods are proved to be in good condition, the trouble is resulted to be caused by improper operation by customers, SUPMETER is IRRESPONSIBLE to bear the shipping & other charges related to the returning.)
