Weighing Packing Instrument Indicator for Packing Scale

Changsha Supmeter Technological Co., Ltd.
  • After-sales Service：24 Hours After-Sale Service
  • Warranty：12 Months
  • Weighing：30-300kg
  • Accuracy：0.2%-0.5%
  • Display Type：VFD
  • Display Digits：16 Bits

Base Info

  • Model NO.：BST106-H16[A]
  • Measure Method：Semi-Automatic
  • Shell Material：Aluminum
  • Application：Packing Scale
  • Certification：CE
  • Customized：Customized
  • Sampling Frequency：800Hz
  • Di&Do：7*Di & 12*Do
  • Ao：4-20mA*1
  • Communication：RS232&RS485
  • IP Grade：IP65
  • Power Supply：AC220V
  • Communication Protocol：Modbus RTU
  • Transport Package：Carton Box
  • Specification：164*82*188mm [W*H*D]
  • Trademark：SUPMETER
  • Origin：China
  • HS Code：8537109090
  • Production Capacity：50000PCS,Year

Description

Main Application:

H16[A]: Single-weighing-hopper/bag Ration Packing Scale

H16[D]: Loss-in-weighing Ration Packing Scale

Main Features:

1:32-bit ARM CPU with 72MHz clock and high arithmetic speed.

2: Auto Zero Tracking

3: Fall Value Auto Correction

4: Target Batch Count & Target Batch Weight Control

5: Auto Pause for Deviation Alarm

6: Auto Re-feed for Negative Deviation Alarm

7: 3-speed[high/medium/low]feeding control by DOs or AOs

8: Definable AO/COM[Communication Port]

Technical Specifications:

Power SupplyAC85∼264vDisplay

6+10 Green VFD Digital Tubes for English&Digit Display

Sampling Frequency400HzA/D Convert24-bitKeypad8 keys for Menu&Shortcut mode operation with key toneExcitation Voltage Output of LoadcellDC10VMax. Connection number of Loadcell8 Loadcells (350Ω)DI7 Normally Open Switch InputsDO12 Normally Open Transistor Switch OutputsAO1Analog Signal Output: 4~20mA.Communication Port

COM1:RS232;

COM2:Optional RS232/RS485/RS422/Profibu-DP/Ethernet

Outline Dimension164 × 82 × 188 mm (W×H×D)Net Weight Approx. 2kgIP GradeIP65Packing Accuracy0.2%~0.5%Operatiing Temperature-25ºC~+45ºC

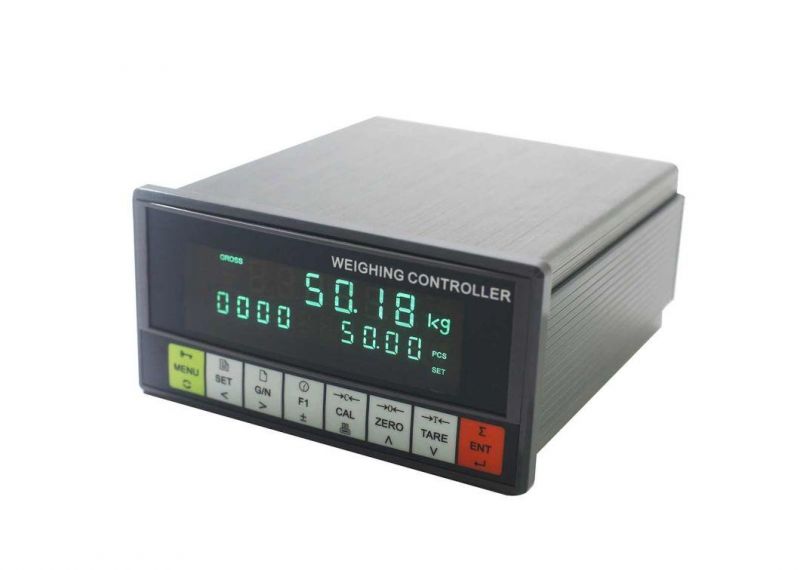

Weighing Packing Instrument Indicator for Packing Scale




Packaging & Shipping


Weighing Packing Instrument Indicator for Packing ScaleCompany Profile:


Weighing Packing Instrument Indicator for Packing Scale

SUPMETER is an experienced manufacturer  which is working on manufacturing weighing indicator/controller. We have professional sales team, strong technical team and 24-hous working after-sale service. Cooperating with us, you will get high quality but low price products, fast and accurate delivery, family like service.
 Warranty

The warranty period for our products is 12 (twelve) months.

If the products from SUPMETER are proved to be unable to work normally due to unartificial reasons, and the problems can't be solved by customers under the technical support from SUPMETER, then customers can send the problematic items back to SUPMETER. SUPMETER is RESPONSIBLE to MEND (or REPLACE when necessary) them FREE OF CHARGE.

(Note: if after checking, the returned goods are proved to be in good condition, the trouble is resulted to be caused by improper operation by customers, SUPMETER is IRRESPONSIBLE to bear the shipping & other charges related to the returning.)
