• Model NO.：KM-2335-30
• Precision Measuring Device：Precision Measuring Device
• Certification：DIN, GB, RoHS, ISO
• Customized：Customized
• Measurement：Metric
• Protection Degree：IP54
• Transport Package：Aluminium Box
• Specification：DIN Standard
• Trademark：KM
• Origin：Shaanxi, China
• HS Code：9017300000
• Production Capacity：50000pieces,Month

Basic Info.

Model NO. KM-2335-30 Precision Measuring Device Precision Measuring Device Certification DIN, GB, RoHS, ISO Customized Customized Measurement Metric Protection Degree IP54 Transport Package Aluminium Box Specification DIN Standard Trademark KM Origin Shaanxi, China HS Code 9017300000 Production Capacity 50000pieces/Month

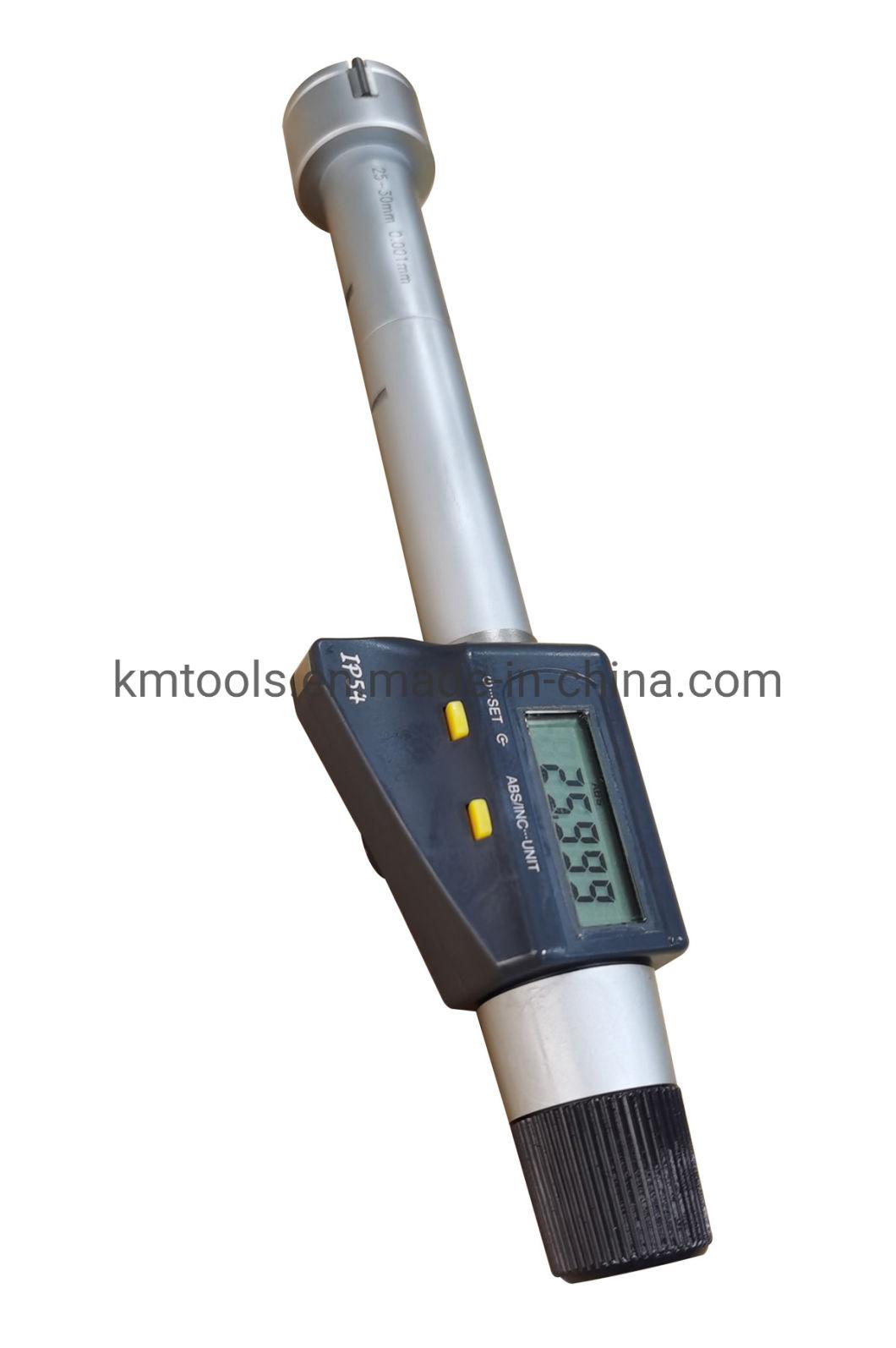

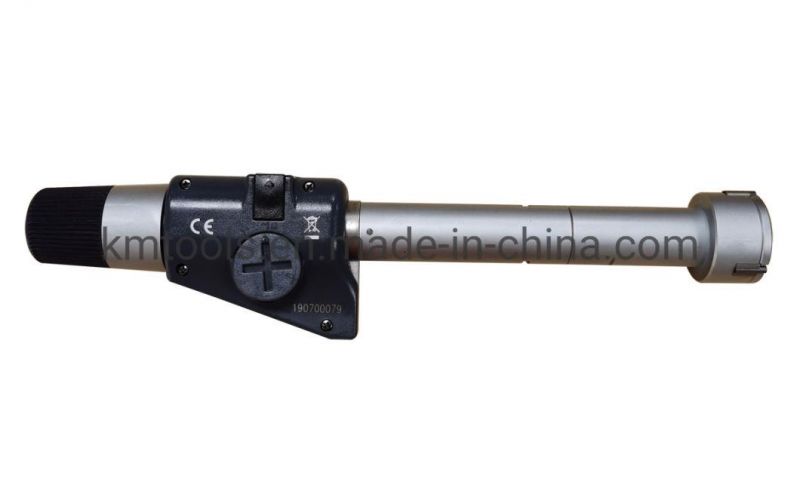

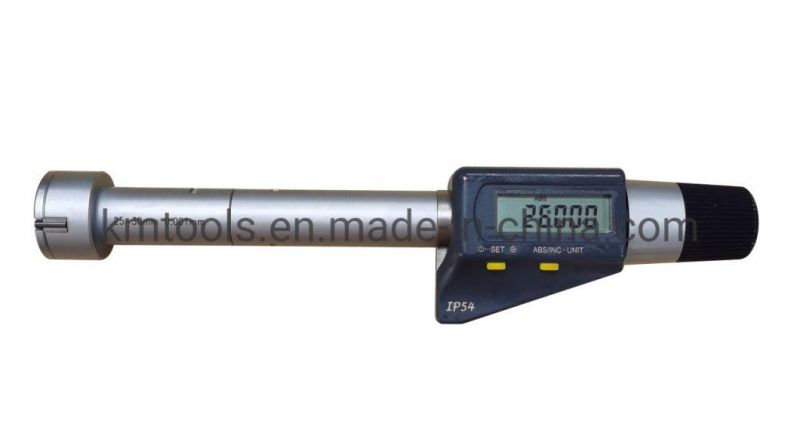

Product Description

Feature:
1. Resolution:0.001mm.
2. Measurement can be taken closer to the bottom of the blind bore, and can be taken into a deep hole with a extension rod.
3. Highly durable because of carbide-tipped contact points.
4. Ratchet stop.
5. Criterion:DIN40050/IEC529.
6. RS232 data output.
  Connecting cable:P1102(Optional).
7. Protection degree:IP54

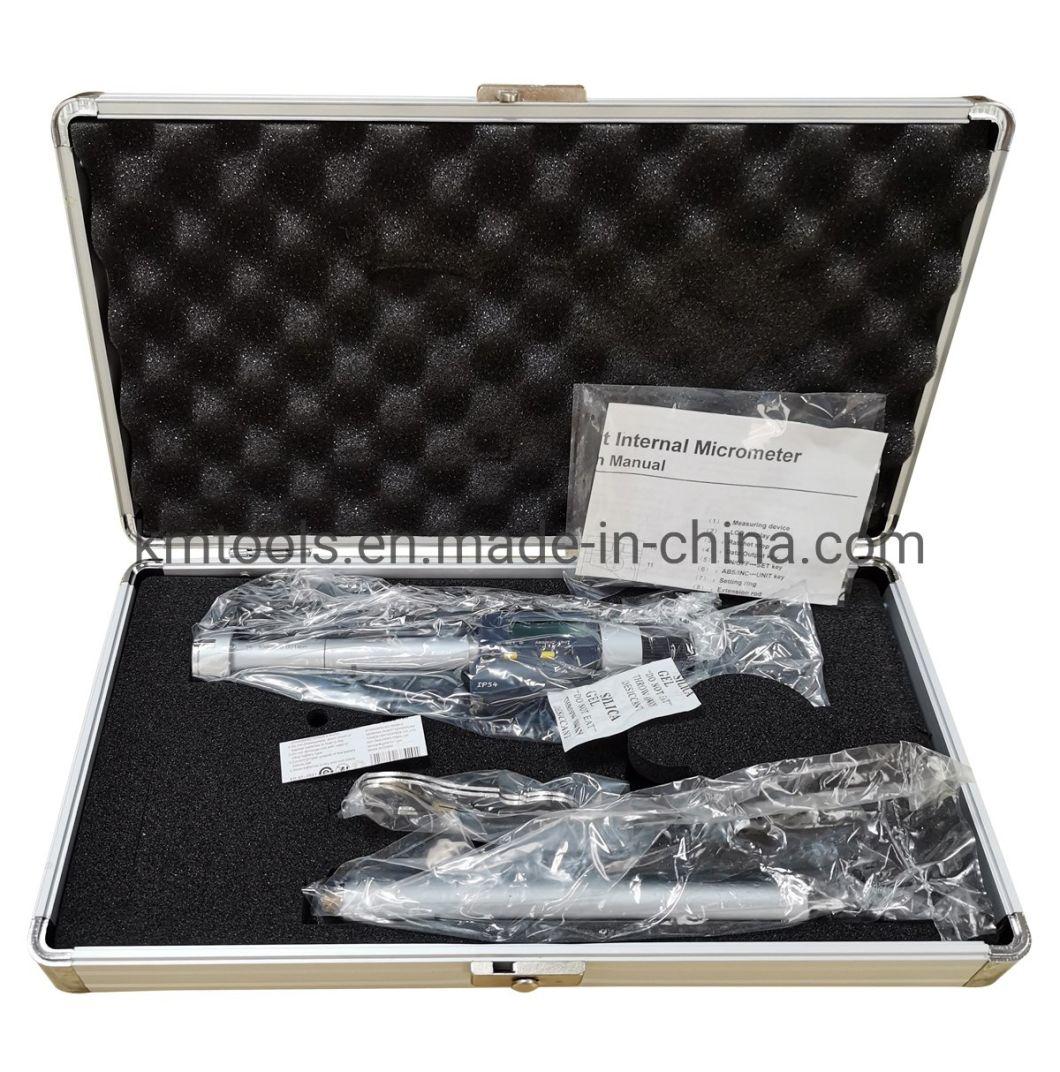

8. Supplied in the storage case.

Specification:
Metric/Inch

Order No.	Range	Accuracy	Resolution	Setting rings	L1	A	Extension rods
KM-2335-8	6~8mm	±0.004mm	0.001mm	φ6mm	54.5mm	1.5mm	100mm
KM-2335-10	8~10mm	±0.004mm	0.001mm	Φ8mm	54.5mm	1.5mm	100mm
KM-2335-12	10~12mm	±0.004mm	0.001mm	Φ10mm	54.5mm	1.5mm	100mm
KM-2335-16	12~16mm	±0.004mm	0.001mm	Φ16mm	80mm	0.5mm	150mm
KM-2335-20	16~20mm	±0.004mm	0.001mm	Φ16mm	80mm	0.5mm	150mm
KM-2335-25	20~25mm	±0.004mm	0.001mm	Φ25mm	90mm	0.5mm	150mm

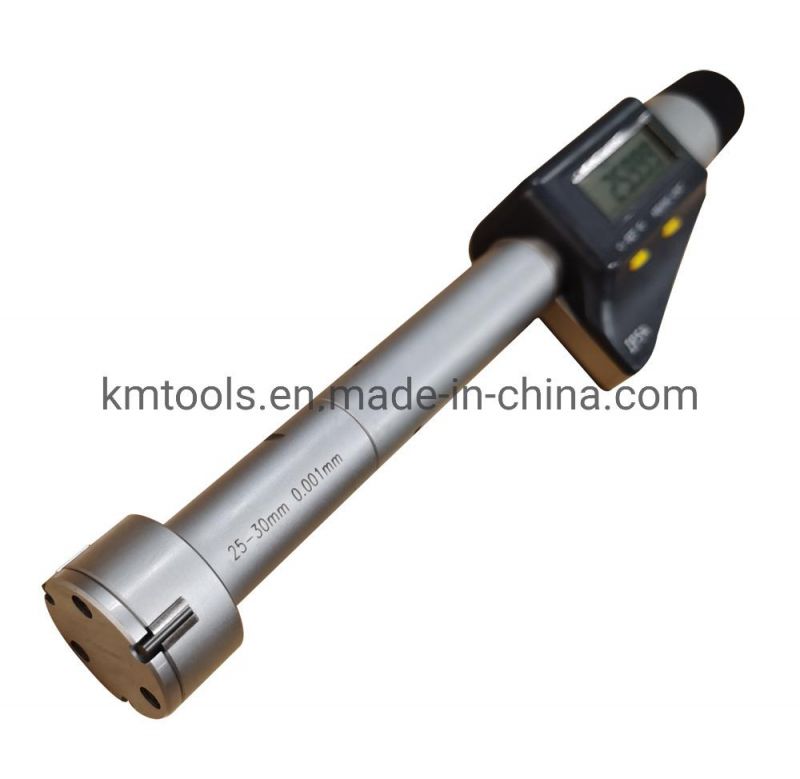

KM-2335-30	25~30mm	±0.004mm	0.001mm	Φ25mm	90mm	0.5mm	150mm
KM-2335-40	30~40mm	±0.004mm	0.001mm	Φ40mm	97mm	0.5mm	150mm
KM-2335-50	40~50mm	±0.005mm	0.001mm	Φ40mm	97mm	0.5mm	150mm
KM-2335-63	50-63mm	±0.005mm	0.001mm	φ62mm	114mm	0.5mm	150mm
KM-2335-75	62-75mm	±0.005mm	0.001mm	φ62mm	114mm	0.5mm	150mm
KM-2335-88	75-88mm	±0.005mm	0.001mm	Φ87mm	114mm	0.5mm	150mm
KM-2335-100	87-100mm	±0.005mm	0.001mm	Φ87mm	114mm	0.5mm	150mm
