Portable Wheel Weighing Axle Truck Scale

Ningbo Jiangbei Shiquan Gifts Co., Ltd.
  • Structure：Mechanical and Electrical Scale
  • Sensor：Analogue Scale
  • Installation：Weighbridge
  • Automation：Automation
  • The Weighing Method：Static Truck Scale
  • Scale Structure：Channel-Section Steel

Base Info

  • Model NO.：AS011
  • Operating Environment：Explosion-proof Loadometer
  • Lightning Protection：With Lightning Protection
  • Display：LED or LCD
  • Material：Aluminum-Alloy
  • Service：OEM&ODM
  • Power Supply：110V , 220V or According to Customer
  • Production Time：25~45 Days
  • Weighing Capacity：10,15,20t
  • Defend Grade：IP66
  • Net Weight：28kg
  • Transport Package：Carton, Wooden Box, Tool Box
  • Trademark：SAINTBOND truck axle scale
  • Origin：Zhejiang, China
  • Production Capacity：8500 Sets Per Month

Description

Static error (%F.S):0.1~0.3Static comprehensive error(%F.S): 0.1~0.5Insulation resistance(MΩ): ≥5000(100VDC)Dynamic comprehensive error(%F.S):
1.5 (1~5km/h) 3 (5~10km/h)Compensated temp.range(ºC): -10~+50Rated output(mV/V): 1.0±0.1Use temp.range(ºC): -30~+80Non-linearity(%F.S): 0.2Temp.effect on zero(F.S/10ºC): 0.03Error on corners(%F.S): 0.2Temp.effect on span(F.S/10ºC): 0.05Repeatariy(%F.S): 0.05Safe overload(%): 120Zero balance(%F.S): ±1Ultimate overload(%): 150Excitation voltage(VDC): 9~15Net weight(kg): 54Recommended voltage(V): 10Defend grade: IP66

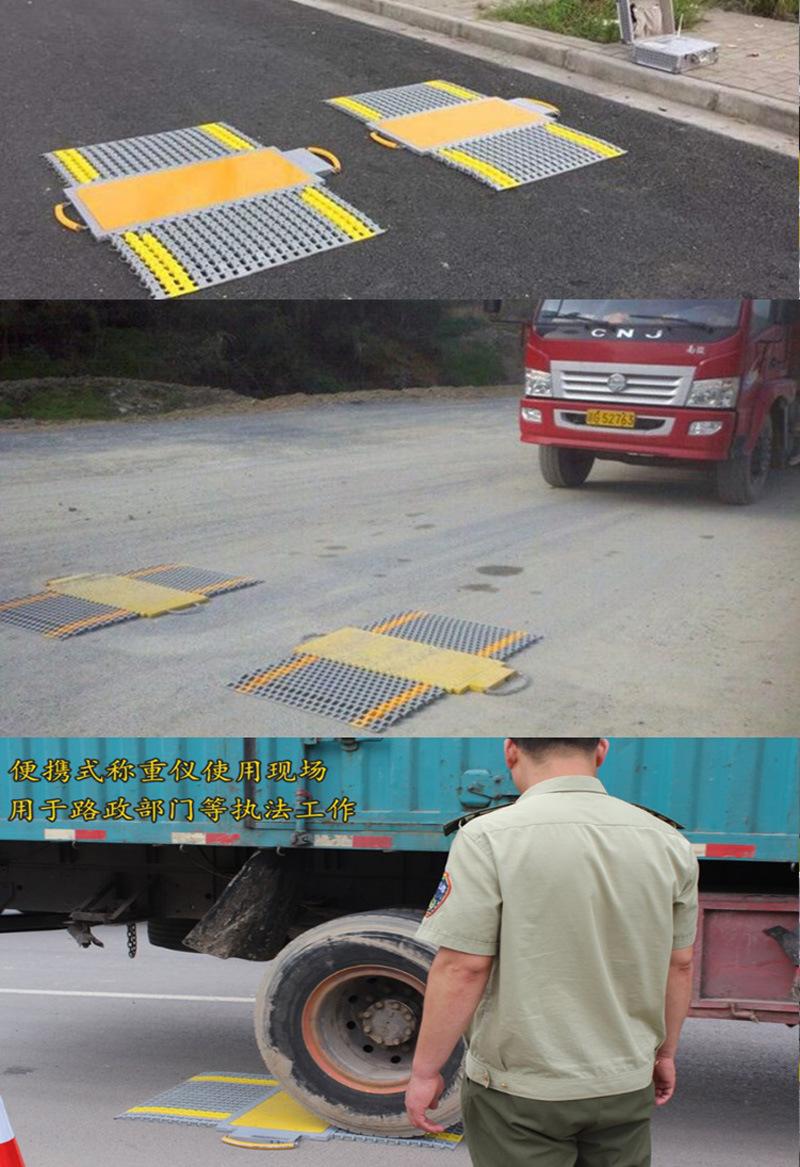

Detail:Portable Wheel Weighing Axle Truck Scale

Portable Wheel Weighing Axle Truck ScalePortable Wheel Weighing Axle Truck Scale
Portable Wheel Weighing Axle Truck Scale

Portable Wheel Weighing Axle Truck Scale
Portable Wheel Weighing Axle Truck Scale
Portable Wheel Weighing Axle Truck ScalePortable Wheel Weighing Axle Truck Scale
