• Model NO.：AS021W
• Operating Environment：Explosion-proof Loadometer
• Signal Output Mode：Wireless and Wired Options
• Display：LED or LCD
• Material：Aluminum-Alloy
• Service：OEM&ODM
• Power Supply：110V , 220V or According to Customer
• Production Time：25~45 Days
• Weighing Capacity：10,15,20t
• Defend Grade：IP66
• Net Weight：28kg
• Transport Package：Carton, Wooden Box, Tool Box
• Trademark：SAINTBOND truck axle scale
• Origin：Zhejiang, China
• Production Capacity：8500 Sets Per Month

Basic Info.

Model NO. AS021W Operating Environment Explosion-proof Loadometer Signal Output Mode Wireless and Wired Options Display LED or LCD Material Aluminum-Alloy Service OEM&ODM Power Supply 110V , 220V or According to Customer Production Time 25~45 Days Weighing Capacity 10/15/20t Defend Grade IP66 Net Weight 28kg Transport Package Carton, Wooden Box, Tool Box Trademark SAINTBOND truck axle scale Origin Zhejiang, China Production Capacity 8500 Sets Per Month

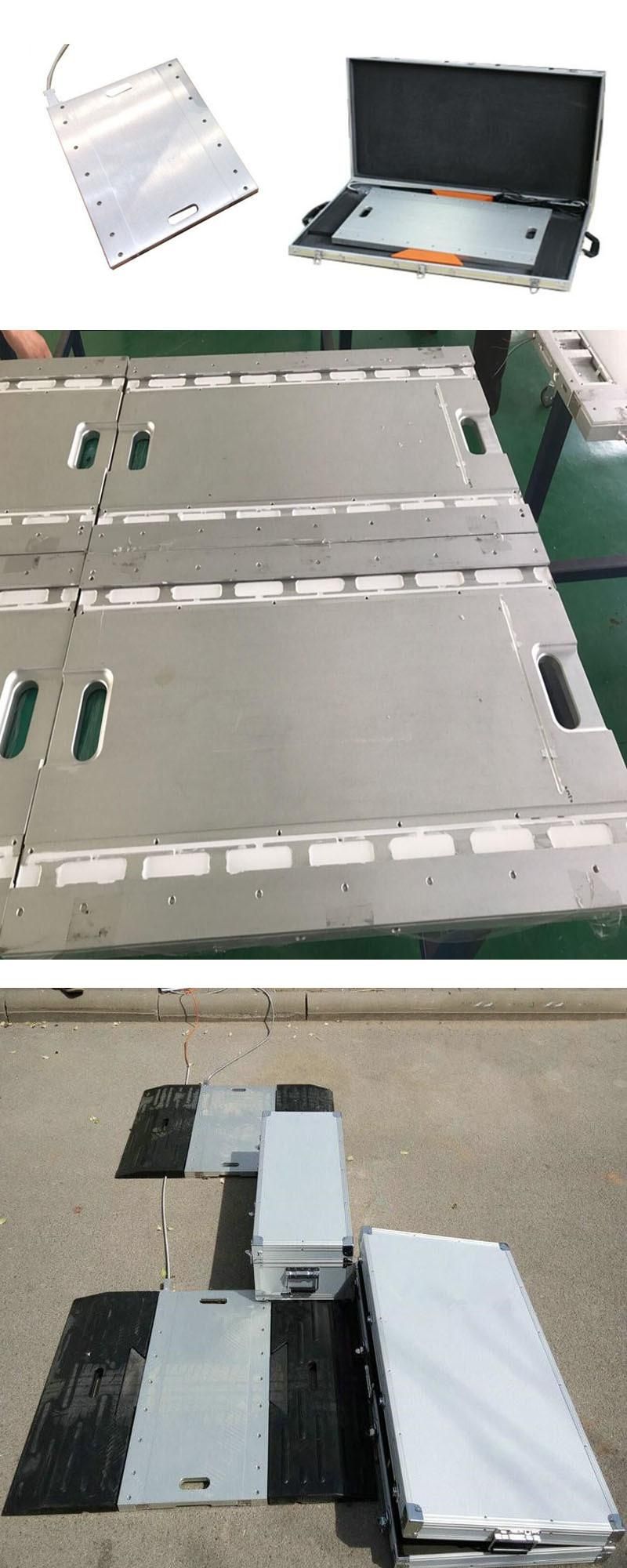

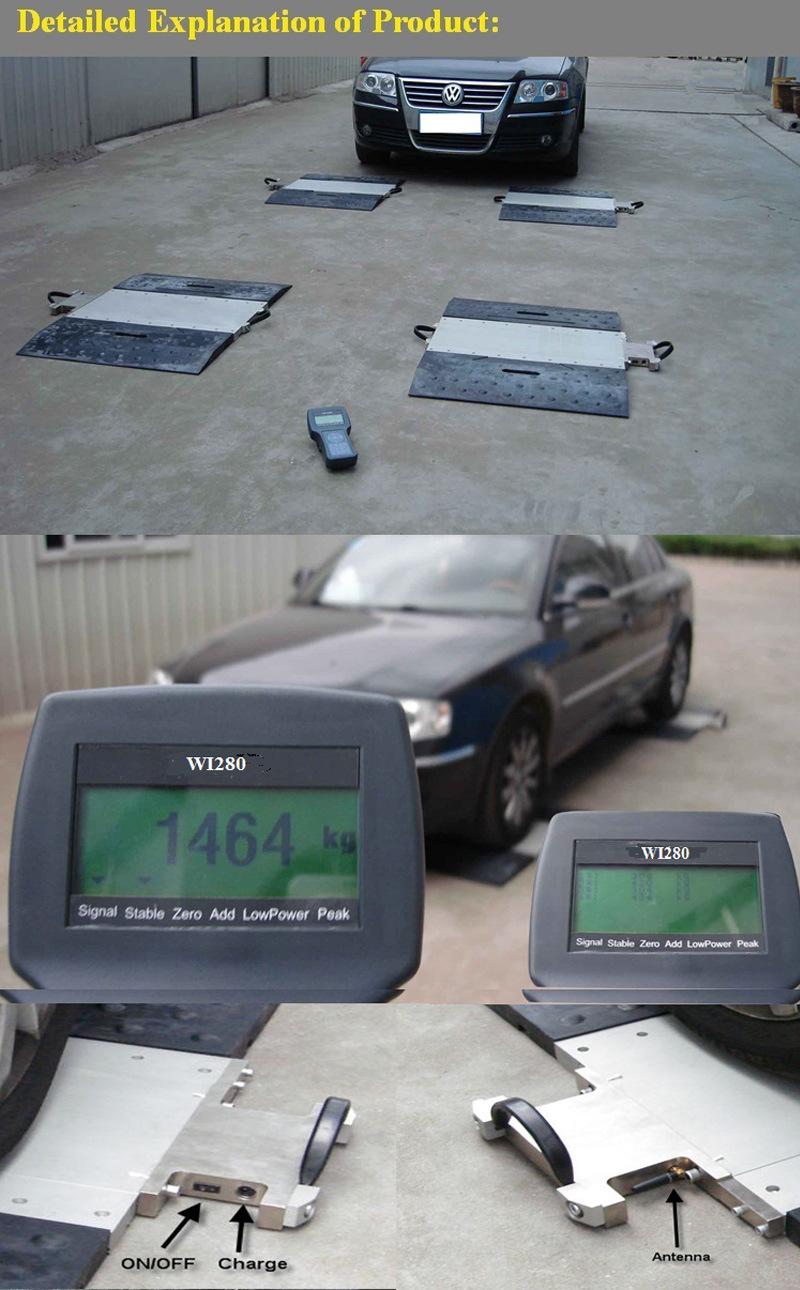

Product Description

 Features:
Light in weight, and convenient transportation.
Integral flat plate construction, high frequency in dynamic response, and high precision.
Applied special treatment, offering high protection class that are suitable for all kinds of environments.
Adopted special material in aero-industry, with good anti-over loading ability.
Assembled with rubber handles, avoided destroying of the handles.
Provided with spring tube, protecting the cables from being crushed.
Mounted with connector and protection block, easy for changing of cables.
Completed with dovetail approach, offering tight connection of the approach and the scale.
Easy for loading on/off of the vehicles.

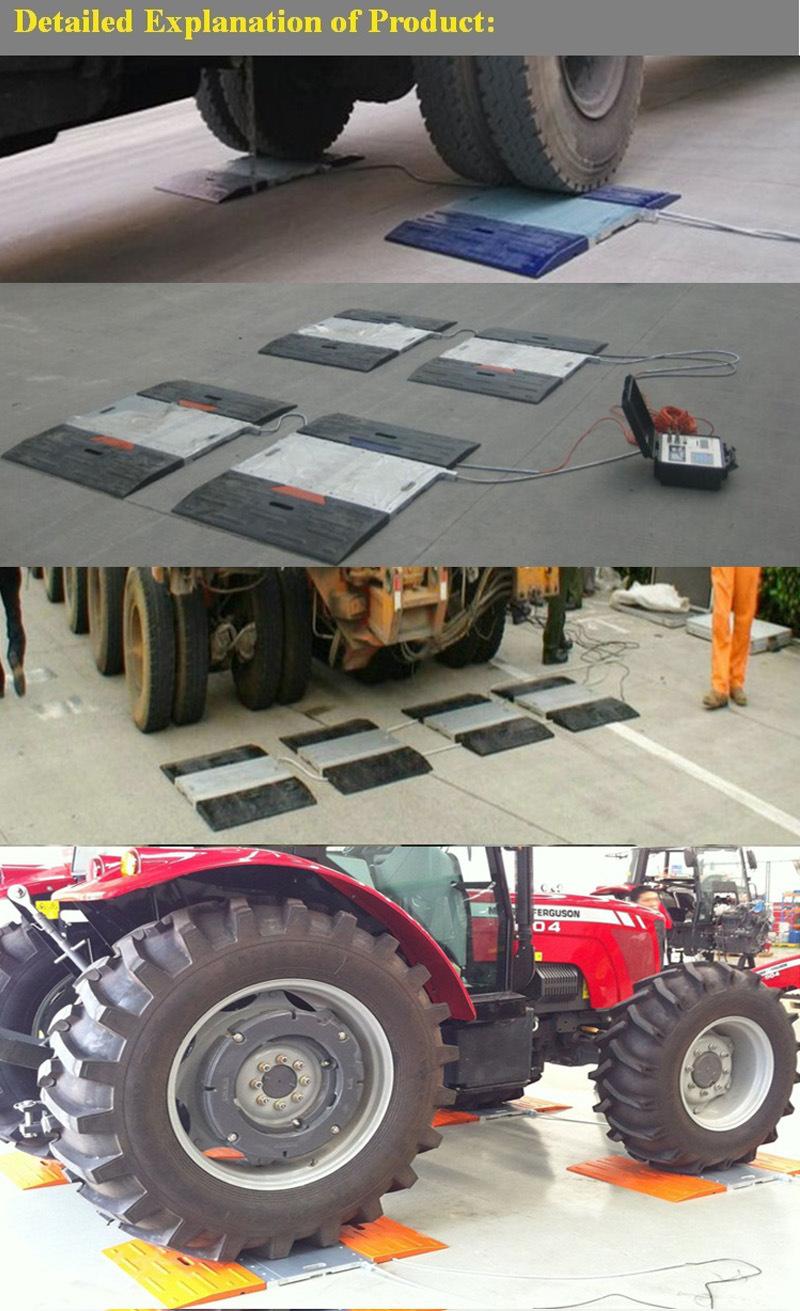

 Applications:
Load control and weighing for the vehicles.
Measuring the weight and barycenter of aeroplane.
Measuring weight for special purpose.

 Specification:

Type:	WP15CW	Operating Humidity:	≤85%RH under 20ºC
Wireless Frequency:	470MHz	Battery Life:	≥50 hours
Wireless Distance:	Min:800m(Default)	Non-Linearity:	0.01%F.S
A/D Conversion Rate:	≥50times/seconds	Stable Time:	≤5 seconds
Operating Temp. Range:	-20~+80ºC	Citation:	GB/T7551-1997/OIML R60

Wireless Technical Data:

A/D Conversion Method:	Σ-Δ
Input Signal Range:	-3mV~15mV
Load Cell Excitation:	DC 5V
Max. Connection Number Of Load Cell:	4 at 350 ohm
Load Cell Connection Mode:	4 wire
Verified Counts:	3000
Max. External Counts:	15000
Division:	1/2/5/10/20/50 optional
Display:	LCD display with backlight
Clock:	real clock without effect on power off
Wireless Transmission Frequency:	450MHz
Wireless Transmission Distance:	800 meters (in wide place)
Option:	RS232 communication interface
