• Model NO.：UM-1
• Communication Port：USB Port or Serial RS 232 Port (Optional)
• Operating Principle：Ultrasonic Pulse,Echo Method
• Unit and Display Resolution：mm-0.1 Inch-0.01
• V -Path Correction：Automatic
• Measuring Error：Low Limit to 10mm
• Update Rate：4Hz
• Languages：English and Chinese
• Operating Time：up to 200 Hours with Alkaline Batteries
• Instrument Shut-off：Auto off After 5 Minutes of Inactivity
• Transport Package：Export Standard Package
• Specification：149mmX73mmX32mm
• Trademark：NANBEI
• Origin：China
• HS Code：9031809090
• Production Capacity：1000,Month

Basic Info.

Model NO. UM-1 Communication Port USB Port or Serial RS 232 Port (Optional) Operating Principle Ultrasonic Pulse/Echo Method Unit and Display Resolution mm-0.1 Inch-0.01 V -Path Correction Automatic Measuring Error Low Limit to 10mm Update Rate 4Hz Languages English and Chinese Operating Time up to 200 Hours with Alkaline Batteries Instrument Shut-off Auto off After 5 Minutes of Inactivity Transport Package Export Standard Package Specification 149mmX73mmX32mm Trademark NANBEI Origin China HS Code 9031809090 Production Capacity 1000/Month

Product Description

      Ultrasonic Thickness Gauge with ce certificate

Usage and Application:
It can measure the thickness of metal materials, high temperature pipes, pipes, plates (steel, aluminum), plastic, iron pipe, PVC pipe, glass and other materials. Can be widely used in manufacturing, metal processing industry, chemical industry, commercial inspection and other testing areas, but also on the production equipment in a variety of pipes and pressure vessels to monitor their use in the process of monitoring the degree of corrosion after the reduction is Material protection necessary special equipment.

Feature and Description:
UM -1 is the basic thickness meter and UM-1D offers this special function, when there is oil paint on the surface of the object, the net thickness of the material can be directly measured without necessarily remove the paint.
General thickness measurement mode measures the thickness of an object by calculating the time difference T1 of the probe sending ultrasonic pulse to the object and the probe receiving the reflection from the first bottom echo(including the coating thickness).
Through coating mode measures the thickness of an object by precisely calculating the time difference T2 between two consecutive bottom echo (excluding the coating thickness).

Technical parameters:

Display Type	128 ×64 dot-matrix LCD screen with EL backlight
Operating Principle	P-E (pulse-echo) with dual-crystal probes
Measuring Limits of Tube(Steel)	Φ20mm × 3.0mm (PT-08 probe) Φ15mm × 2.0mm (PT-06 probe) The measuring error is up to ± 0.1mm
Measuring Error	Low limit to 10mm: ±0.1mm 10mm to high limit: ± ± (1%H+0.1) mm Note: H is the actual thickness of the testing material
Repeatability	0.1mm
Display Resolution	0.1mm, 0.001inch
Units	Inch or Millimeter
Calibration Method	Zero calibration, Two-point calibration
V-Path Correction	Automatic
Update Rate	4Hz
Material Velocity Range	1000~9999m/s (0.0394 to 0.3937in/μs)
Memory Function	5 arrays are divided to store 500 thickness values
Minimum Value Checking	Move the probe along the surface of the testing material, the gauge is able find the thinnest point automatically
Warning Function	If the measured value exceeds the pre-set thickness limit, the warning tone will start
Velocity Storage	Velocities of 5 different materials can be stored totally
Languages	English and Chinese
Communication Port	USB port or Serial RS 232 port (Optional)
Application Software	UmView Software for transmission,storage,analysis and documents editing (Optional)
Power Requirements	Two 1.5V AA alkaline batteries (Warning with low battery voltage)
Operating Time	Up to 200 hours with alkaline batteries (without backlight)
Instrument Shut-off	AUTO OFF after 5 minutes of inactivity
Operating Temperature	-10 °C to +50 °C , -20 °C in special requirements
Size	149mm X 73mm X 32mm(H X W X D)
Weight	210g including batteries



UM series ultrasonic thickness gauge is extremely suitable for measuring the pipes about their thickness lose after corrosion.

Each instrument has been calibrated by 34 standard test blocks before delivery to ensure the accuracy of the measurement.

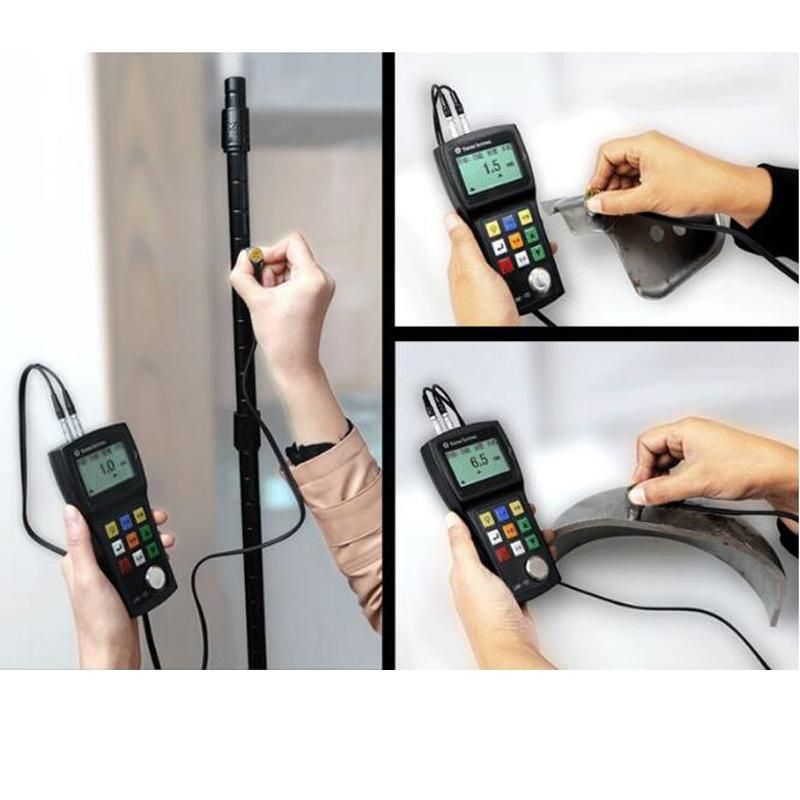

Pictures

Difference between UM series

Model	UM-1	UM-1D	UM-2	UM-2D
Measuring Range in Thru Coating Mode	×	3mm-20mm	×	3mm-20mm
Measuring Rang (Depend on material and probe)	0.8mm-300mm	0.8mm-300mm	0.8mm-300mm	0.8mm-300mm
Data Logger	√	√	√	√
Measuring Resolution	0.1mm, 0.001inch	0.1mm,  0.001inch	0.01mm, 0.0001inch	0.01mm, 0.0001inch
Probe Compensating Line	1 built-in	1 built-in	7 built-in	7 built-in
Operating Principle	Pulse-Echo	Pulse-Echo Echo-Echo	Pulse-Echo	Pulse-Echo Echo-Echo

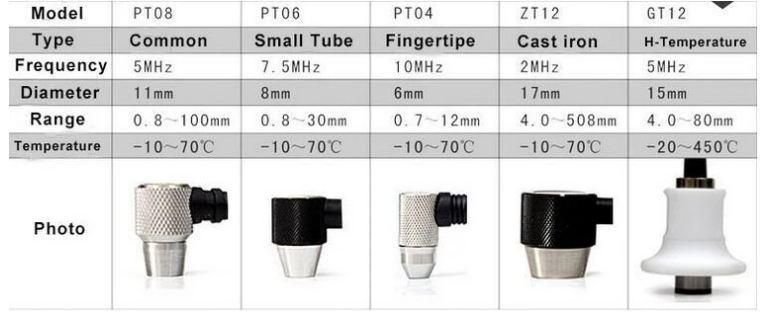

Other Optional Probes
