Meter Digital Ultrasonic Thickness Gauge
NANBEI INSTRUMENT LIMITED- Material：Plastic
- Measurement Object：Thickness
- Range：0.50mm to 508mm
- Resolution：Selectable 0.01mm, 0.1mm(Selectable 0.001", 0.01")
- Precision：Selectable 0.001", 0.01"
- Measure Method：Automatic
Base Info
- Model NO.：UM-5
- Precision Measuring Device：Precision Measuring Device
- Certification：CE, ISO
- Customized：Non-Customized
- Nanbei：Meter Digital Ultrasonic Thickness Gauge
- Display Type：2.4” Color OLED, 320 X 240 Pixels
- Operating Principle：Pulse Echo with Dual Element Transducers
- Measuring Resolution：Selectable 0.01mm, 0.1mm(Selectable 0.001", 0.01")
- V-Path Correction：Automatic
- Update Rate：Selectable 4Hz, 8Hz, 16Hz
- Material Velocity Range：500 to 9999m,S (0.0197 to 0.3937in,Us)
- Power Requirements：2 AA Size Batteries
- Operating Time：Approximately 40 Hours
- Operating Temperature：-10°c to +50°c (+10°f to +120°f)
- Software：Dataview PC Software
- Communication Port：USB 2.0 (Full Speed ) Port
- Rows X Columns：21 X 12
- File Structure：Grid File
- Capacity：100,000 Readings,1000 Waveforms, 400 Files
- Transport Package：Carton Case
- Specification：153mm X 76mm X 37mm
- Trademark：NANBEI
- Origin：China
- HS Code：9031809090
- Production Capacity：3000set,Month
Description
Instrument Specifications
| Display Type | 2.4" color OLED, 320 X 240 pixels, contrast 10,000:1 |
| Operating Principle | Pulse echo with dual element transducers |
| Measuring Range | 0.50mm to 508mm(0.02" to 20.00"), depending on material, probe and surface condition |
| Measuring Resolution | Selectable 0.01mm, 0.1mm(selectable 0.001", 0.01") |
| Units | Inch or Millimeter |
| Rectify Modes | RF+, RF-, HALF+, HALF-, FULL |
| Display Mode | Normal, Minimum / Maximum capture, DIFF/RR%, A-Scan, B-Scan |
| V-Path Correction | Automatic |
| Update Rate | Selectable 4Hz, 8Hz, 16Hz |
| Material Velocity Range | 500 to 9999m/s (0.0197 to 0.3937in/us) |
| Languages | English |
| Alarm Settings | Minimum and Maximum alarms. Range of 0.25 mm to 508 mm (0.010" to 20.00").Dynamic waveform color change on alarm |
| Power Requirements | 2 AA size batteries |
| Operating Time | Approximately 40 hours |
| Instrument Shut-off | Selectable ALWAYS ON or AUTO OFF after 5, 10, 20 minutes of inactivity |
| Operating Temperature | -10°C to +50°C (+10°F to +120°F) |
| Size | 153mm X 76mm X 37mm(H X W X D) |
| Weight | 280g including batteries |
Data Logger Option Features
| Capacity | 100,000 readings,1000 waveforms, 400 files |
| File Structure | Grid file |
| Rows X Columns | 21 X 12 |
| Communication Port | USB 2.0 (Full Speed ) port |
| Software | DataView PC software |
UM-5 Probe/Transducer Specifications
| Model | PT08 | TC510 | PT12 | ZT12 | PT06 | PT04 | GT12 |
| Type | UM-5 Standard | UM-5D/DL Standard | Standard | Cast iron | Small tube | Fingertip | High-Temperature |
| Frequency | 5MHz | 5MHz | 5MHz | 2MHz | 7.5MHz | 10MHz | 5MHz |
| Contact Diameter | 11mm | 13.5mm | 13.5mm | 17mm | 8mm | 6mm | 15mm |
| Measurement | 0.8 to | 1.2 to | 1.0 to | 4.0 to | 0.8 to | 0.7 to | 4.0 to |
| Range | 100.0mm | 200.0mm | 200.0mm | 508.0mm | 30.0mm | 12.0mm | 80.0mm |
| Temperature Range | -10 to 70ºC -10 to 70ºC | -10 to 70ºC -10 to 70ºC | -10 to 70ºC -10 to 70ºC -20 to 300ºC |
FAQ
1. How can I choose the suitable one?
Dear customer, please tell us your detailed requirements by mail or online, we will recommend the suitable one as your request.
2. Does your price is competitive?
Dear customer, we make sure to offer you the best quality with competitive price.
3. How can I pay?
Dear customer, we accept many payment term, such as T/T, Western Union…
4. When I receive it after pay?
Dear customer, normal models can be delivered with 5-7days, please contact us to check transport time to your address.
5. How to deliver?
Dear customer, we can send by Express, by Sea and by Air.
6. Is will be broken during transport?
Dear customer, please do not worry, we do standard export package.
7. What should I do if I do not know how to use?
Dear customer, please do not worry, manual user will be sent together, you can also contact us with more technological support.
8. What should I do if some parts broken?
Dear customer, please do not worry, we have 12months warranty except wear parts. You can also buy parts from us after 12months.
Company Show:

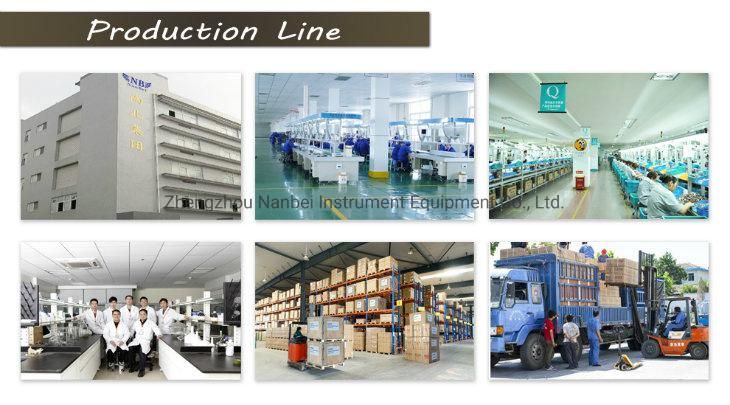

Factory Show:
Professional laboratory instrument manufacturer with 11 years of experience.
Export experience has been 8 years.
Shipping : 5days by courier,door to door service
Certification:
The company has passed various international authoritative certifications such as SGS, CE, ISO.

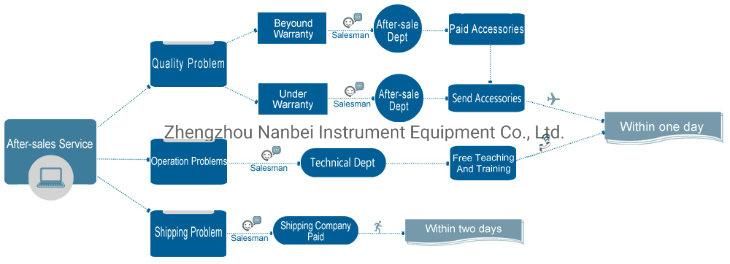

Warranty And After-sale Service
