• Model NO.：UM-5DL
• Measure Method：Automatic
• Accuracy：0.05mm
• Precision Measuring Device：Precision Measuring Device
• Certification：CE, ISO
• Customized：Non-Customized
• Nanbei：LCD Digital Display Ultrasonic Thickness Gauge
• Working Principle：an Ultrasonic Pulse Echo Method Using a Twin Cryst
• Measure The Resolution：0.01 or 0.1mm(0.001 or 0.01in)
• Unit：mm or Inches
• Repeatability：0.05mm
• Gain：High, Medium and Low Third Gear Adjustable
• Communication Interface：USB 2.0 Full Speed Interface
• V Path Correction：Automatic V Sound Path Correction, Compensation Fo
• Display Screen：(320 × 240) Color OLED Screen
• Measuring Range：Standard Mode: 0.5 to 508 mm
• Pipe Measurement Lower Limit：Φ20×3mm(PT08 Probe)
• Indication Error：±0.05mm
• Indication Stability：Breakthrough Zero-Crossing Measurement Technique
• Display Mode：Thickness Value Mode,
• Storage：100,000 Thickness Values
• Transport Package：Carton Case
• Specification：153mm× 76mm× 37mm
• Trademark：NANBEI
• Origin：China
• HS Code：9031809090
• Production Capacity：2000set,Month

Basic Info.

Model NO. UM-5DL Measure Method Automatic Accuracy 0.05mm Precision Measuring Device Precision Measuring Device Certification CE, ISO Customized Non-Customized Nanbei LCD Digital Display Ultrasonic Thickness Gauge Working Principle an Ultrasonic Pulse Echo Method Using a Twin Cryst Measure The Resolution 0.01 or 0.1mm(0.001 or 0.01in) Unit mm or Inches Repeatability 0.05mm Gain High, Medium and Low Third Gear Adjustable Communication Interface USB 2.0 Full Speed Interface V Path Correction Automatic V Sound Path Correction, Compensation Fo Display Screen (320 × 240) Color OLED Screen Measuring Range Standard Mode: 0.5 to 508 mm Pipe Measurement Lower Limit Φ20×3mm(PT08 Probe) Indication Error ±0.05mm Indication Stability Breakthrough Zero-Crossing Measurement Technique Display Mode Thickness Value Mode, Storage 100,000 Thickness Values Transport Package Carton Case Specification 153mm× 76mm× 37mm Trademark NANBEI Origin China HS Code 9031809090 Production Capacity 2000set/Month

Product Description

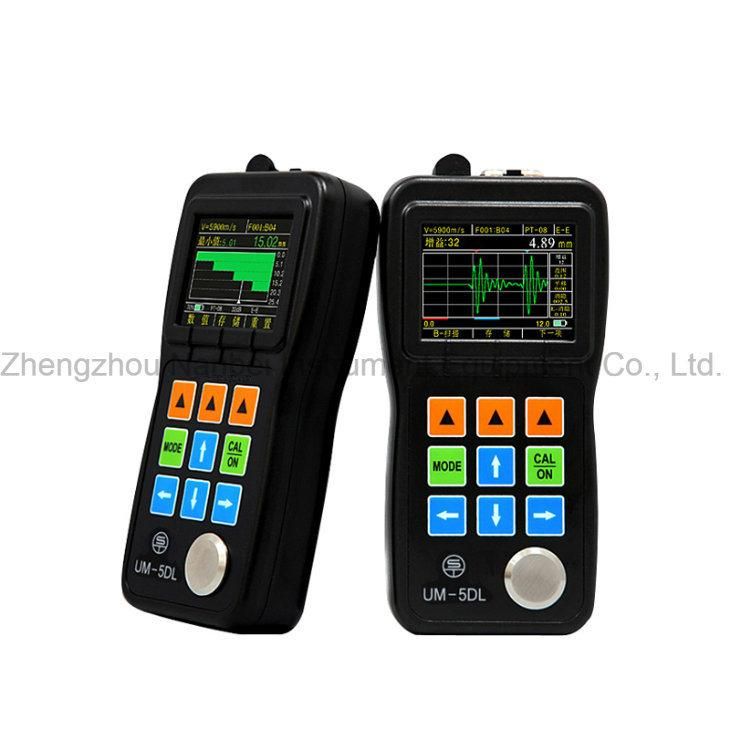

LCD digital display ultrasonic thickness gauge

UM-5 series is the introduction of a new generation of thickness gauges, breakthrough technology for your maximum to solve a variety of measurement problems. It greatly improves the performance of conventional ultrasonic gauges, with better measurement stability and repeatability. Widely used in petrochemical, power, boat and pipe, pressure vessel and storage tank wall thickness measurement. Can measure the thickness of metal materials, pipes, pressure vessels, sheet (steel, aluminum), plastic, iron pipe, PVC pipe, glass and other materials.

Picture:



The main function
2.4-inch QVGA (320 × 240 dot matrix) color OLED screen, contrast 10000: 1,
Color real-time A / B scanning, through the echo display can help users better control of the measurement, so that a wider range of thickness, the measurement value is more accurate, but also to avoid measurement and material-related errors. Zero-wave, full-wave, update rate, B-scan maximum / minimum, and other parameters can be set, such as gain, blanking, gate, range, delay, radio frequency, backward RF, positive half-wave, negative half- The thickness value and the waveform color change dynamically when coupling or alarm.
Penetration coating function: for the removal of the paint layer of the substrate net thickness measurement
Large capacity storage function: can store 100,000 thickness and 1000 sets of waveforms

Technical Parameters

Display screen	2.4QVGA (320 × 240) color OLED screen, contrast 10000: 1
working principle	An ultrasonic pulse echo method using a twin crystal probe
Measuring range	Standard mode: 0.5 to 508 mm (0.025 to 20.00 inch) Coating mode: Substrate thickness 3.0 - 50mm (for the removal of the paint layer of the substrate net thickness measurement) Coating thickness of less than 8mm Depending on the probe used, the material to be measured and the surface condition
Pipe measurement lower limit (steel)	Φ20×3mm(PT08 Probe) Φ15×2mm(PT06 Probe) The indication error does not exceed ±0.1mm
Measure the resolution	0.01 or 0.1mm(0.001 or 0.01in)
Unit	mm or inches
Indication error	±0.05mm  (H≤10mm) ±(0.5% H+0.01 ) (H>10mm) Note: H is the thickness of the measured object
Indication stability	Using a breakthrough zero-crossing measurement technique, the thickness measurement is not affected by the attenuation strength of the material, the gain and the gate height, and has high measurement stability and reliability.
Repeatability	0.05mm
Gain	High, medium and low third gear adjustable
Display mode	Thickness value mode, minimum / maximum capture mode, difference / reduction rate mode
storage	100,000 thickness values and 1000 sets of waveforms can be connected to the computer to export data, the data can be statistics, analysis, archiving, printing reports and other operations.
Communication Interface	USB 2.0 Full Speed interface
V path correction	Automatic V sound path correction, compensation for dual crystal probe non-linearity
Measure the update rate	4HZ per second, 8HZ, 16HZ optional
Material sound velocity range	500-9999m/s,0.0179-0.3937in/us
Working language	Chinese, English, Japanese, German, French five languages to choose from
Alarm settings	Maximum / minimum alarm, dynamic changes in the thickness of the alarm when reading the color
Power	Two 1.5V AA batteries
Operating time	Two AA batteries, the use of time is greater than 35 hours
Shut down	Optional 5,10,20 minutes without operation after the automatic shutdown, or can only manually shut down
Operating temperature	-10 to +50 ºC, with special requirements up to -20 ºC
Dimension	153mm×76mm×37mm(H×W×D)
Weight	Containing the battery 280g
warranty period	1year



Number	Name	Model	Quantity
1	Thickness gauge host	UM-5DL	1
2	Standard probe	TC510	1
3	Instrument box	None	1
4	Alkaline batteries	1.5V	2
5	Coupling agent 50g	None	1
6	USB cable	USB2.0	1
7	Communication software CD	DataView	1

Option
Rubber jacket;
Numerous selectable probes;
Calibration ladder test block;
Coupling agent and high temperature coupling agent

Packing and Shipping
Carton Case

FAQ
1. How can I choose the suitable one?
Dear customer, please tell us your detailed requirements by mail or online, we will recommend the suitable one as your request.
2. Does your price is competitive?
Dear customer, we make sure to offer you the best quality with competitive price.
3. How can I pay?
Dear customer, we accept many payment term, such as T/T, Western Union…
4. When I receive it after pay?
Dear customer, normal models can be delivered with 5-7days, please contact us to check transport time to your address.
5. How to deliver?
Dear customer, we can send by Express, by Sea and by Air.
6. Is will be broken during transport?
Dear customer, please do not worry, we do standard export package.
7. What should I do if I do not know how to use?
Dear customer, please do not worry, manual user will be sent together, you can also contact us with more technological support.
8. What should I do if some parts broken?
Dear customer, please do not worry, we have 12months warranty except  wear parts. You can also buy parts from us after 12months.


Pre-sale service

· 24hours online to ensure quick response to customers' inquiry or online message;

· Guide customers to choose the best suitable machine model;

· Offer detailed specification and competitive prices;

Contract execution

· Machine production will be arranged strictly according to the contract;

· Machine photos will be sent to you for inspection during production;

· Send customs clearance documents by DHL;

· Update latest news after delivery and prepare customs clearance;

After-sale service

· 12 months warranty except for wear parts;

· Broken spare parts (except for wear parts) will be sent for free due to quality problems;

· In time response to customers technical problems;

· New products update for customers' reference
