Workshop Deformed Steel Bar Testing Machine/Horizontal Profile Projector (HOC-400)

Leader Precision Instrument Co., Ltd.
  • After-sales Service：18 Months
  • Warranty：18 Months
  • Type：Dial Indicator
  • Material：Marble
  • Measurement Object：Length
  • Range：0～300mm

Base Info

  • Model NO.：HOC-400
  • Precision：0.001mm
  • Measure Method：Automatic
  • Accuracy：A
  • Precision Measuring Device：Precision Measuring Device
  • Certification：JIS, DIN, ANS, GB, CE, UL, RoHS, ISO
  • Customized：Customized
  • Name：Horizontal Profile Projector
  • Model：Hoc-400
  • Magnification Accuracy：0.08% Contour, 0.12% Surface.
  • Travel-X. Z Axis：250mm*150mm
  • Stage Size：450mm*200mm
  • Stage Load Capacity：30kg
  • Table Swing Range：15°
  • Net Weight：240kg
  • Object Lens：10X. 20X. 50X. 100X. (Standard 10X),
  • Dimension(L*W*H mm)：1090*585*1010 (mm)
  • Transport Package：Vacuum and Fumigation Plywood Export Package
  • Specification：SGS
  • Trademark：L&D
  • Origin：Dongguan, China
  • HS Code：9031491000
  • Production Capacity：500 Sets,Year

Description

ScreenScreen Diameter: 300mmwith 4 film clipsScreen rotary range: 0° -360°Rotary angle resolution: 1' or 0.01°Digital ReadoutMetrolgoy Counter DC-3000 with RS232 outputIlluminationTransmission and reflection: 24V/150w-halogen lamp.PowerAC110-120v, 200-240v, single phase 50/60Hz Total power 400WCoolingFansG. W/N. W210KG/160KGDimension(L*W*H mm)1090*585*1010 (mm)
 Optional Delivery:Measuring SoftwareEdge DetectorCharts(3 kinds)HOC400-20X ObjectiveHOC400-50X ObjectiveHOC400-100X ObjectiveHolder with ClampV-Block with ClampSwivel Center SupportMini-PrinterRotary tableCalibration Scale Standard Delivery:Digital Readout DC-3000HOC400-5X ObjectiveScreen ClampFoot-SwitchPower CableLight source

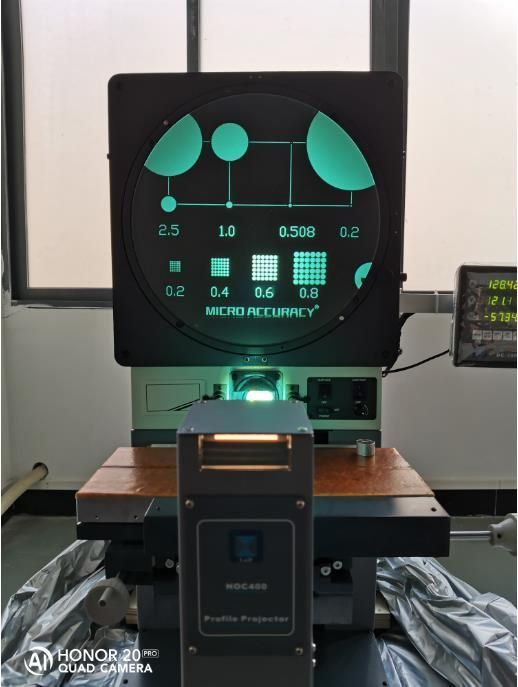

Workshop Deformed Steel Bar Testing Machine/Horizontal Profile Projector (HOC-400)

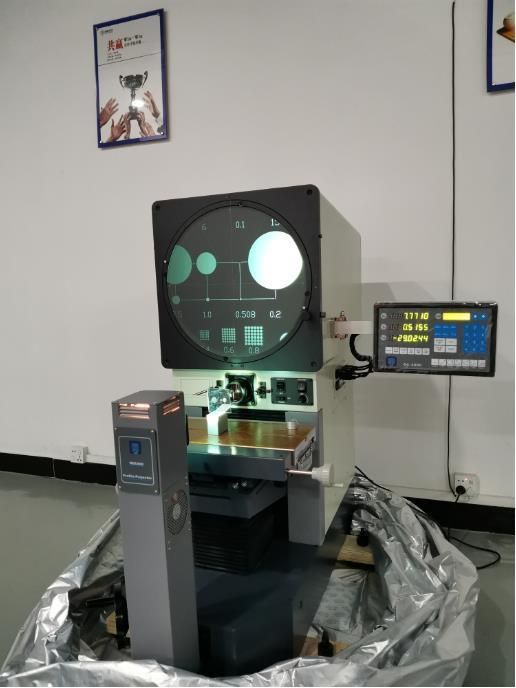

Workshop Deformed Steel Bar Testing Machine/Horizontal Profile Projector (HOC-400)
 Quality System

1. Establish the quality management system based on ISO9001, improve quality inspection, and ensure that all the finished products are qualified.

2. All our measuring machines are with CE certification

3. All our measuring machines are assembled and adjusted with linear accuracy, so that the instrument accuracy is guaranteed by hardware assembly and adjustment to the greatest extent.

4. We has provided professional and complete measurement solutions for many large and medium-sized enterprises at home and abroad, and
has won the trust of customers!

5. Our professional technical service team is familiar with the principle, structure, assembly, and software debugging of the instrument, freeing customers from worries!


After-sale Service

1. Free professional operation training

2. Warranty: 18 months instead of 12 months

3. Regularly upgrade of software is available free

4. Available lifetime technical support
