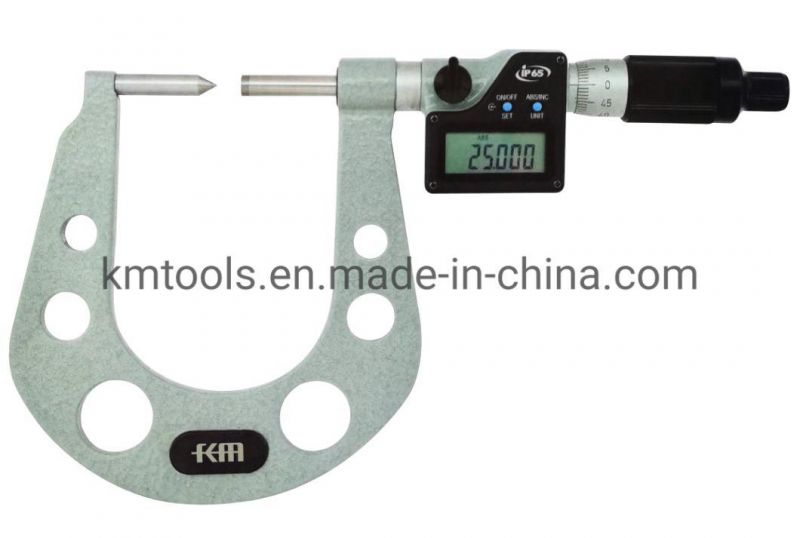

0.3-1.3′′ Electronic Digital Display Disk Brake Micrometers
Deko Corporation- Type：Micrometer
- Measurement Object：Depth of Grooves on The Disc of Brake Systems
- Range：0.3-1.3′′
- Resolution：0.00005′′
- Precision：0.00008′′
- Measure Method：Manual
Base Info
- Model NO.：KM-2244-1.3
- Precision Measuring Device：Precision Measuring Device
- Certification：DIN, GB, RoHS, ISO
- Customized：Customized
- Measurement：Inch,Metric
- Transport Package：ABS Box or Wooden Case
- Specification：DIN Standard
- Trademark：KM
- Origin：Shaanxi, China
- HS Code：9017300000
- Production Capacity：50000pieces,Month
Description
Basic Info.
Model NO. KM-2244-1.3 Precision Measuring Device Precision Measuring Device Certification DIN, GB, RoHS, ISO Customized Customized Measurement Inch/Metric Transport Package ABS Box or Wooden Case Specification DIN Standard Trademark KM Origin Shaanxi, China HS Code 9017300000 Production Capacity 50000pieces/MonthProduct Description
Feature:
1.Resolution:0.001mm(Metric);0.00005″(Inch).
2.Large LCD for easy reading.
3.For measuring the depth of grooves on the disc of brake systems.
4.Carbide measuring face with 60°point.
5.IP65 water/dust protection. Criterion:DIN40050/IEC529.
6.Supplied in the storage case.
Specification:
Metric:
| Order No. | Measuring Range | Accuracy | Resolution |
| KM-2244-33 | 7.6~33mm | ±0.002mm | 0.001mm |
| KM-2244-50 | 25~50mm | ±0.002mm | 0.001mm |
| Order No. | Measuring Range | Accuracy | Resolution |
| KM-2244-1.3 | 0.3~1.3″ | ±0.00008″ | 0.00005″ |
| KM-2244-2 | 1~2″ | ±0.00008″ | 0.00005″ |
