• Model NO.：KM-2104-700
• Precision Measuring Device：Precision Measuring Device
• Certification：DIN, GB, RoHS, ISO
• Customized：Customized
• Measurement：Metric
• Transport Package：Wood Box
• Specification：GB Standard
• Trademark：KM
• Origin：Shaanxi, China
• HS Code：9017300000
• Production Capacity：50000pieces,Month

Basic Info.

Model NO. KM-2104-700 Precision Measuring Device Precision Measuring Device Certification DIN, GB, RoHS, ISO Customized Customized Measurement Metric Transport Package Wood Box Specification GB Standard Trademark KM Origin Shaanxi, China HS Code 9017300000 Production Capacity 50000pieces/Month

Product Description

Feature:
1. Wide measuring range with adjustable anvils.
2. High accuracy standard collars enable that reading does not have to be reset when  changing collars.
3. Ratchet stop.
4. Standard collars:
    within 1000mm:25mm,50mm;
above 1000mm:50mm,100mm.
5. Carbide measuring faces. Painted frame.
6. Pipe combined frame for light weight and high rigidity.

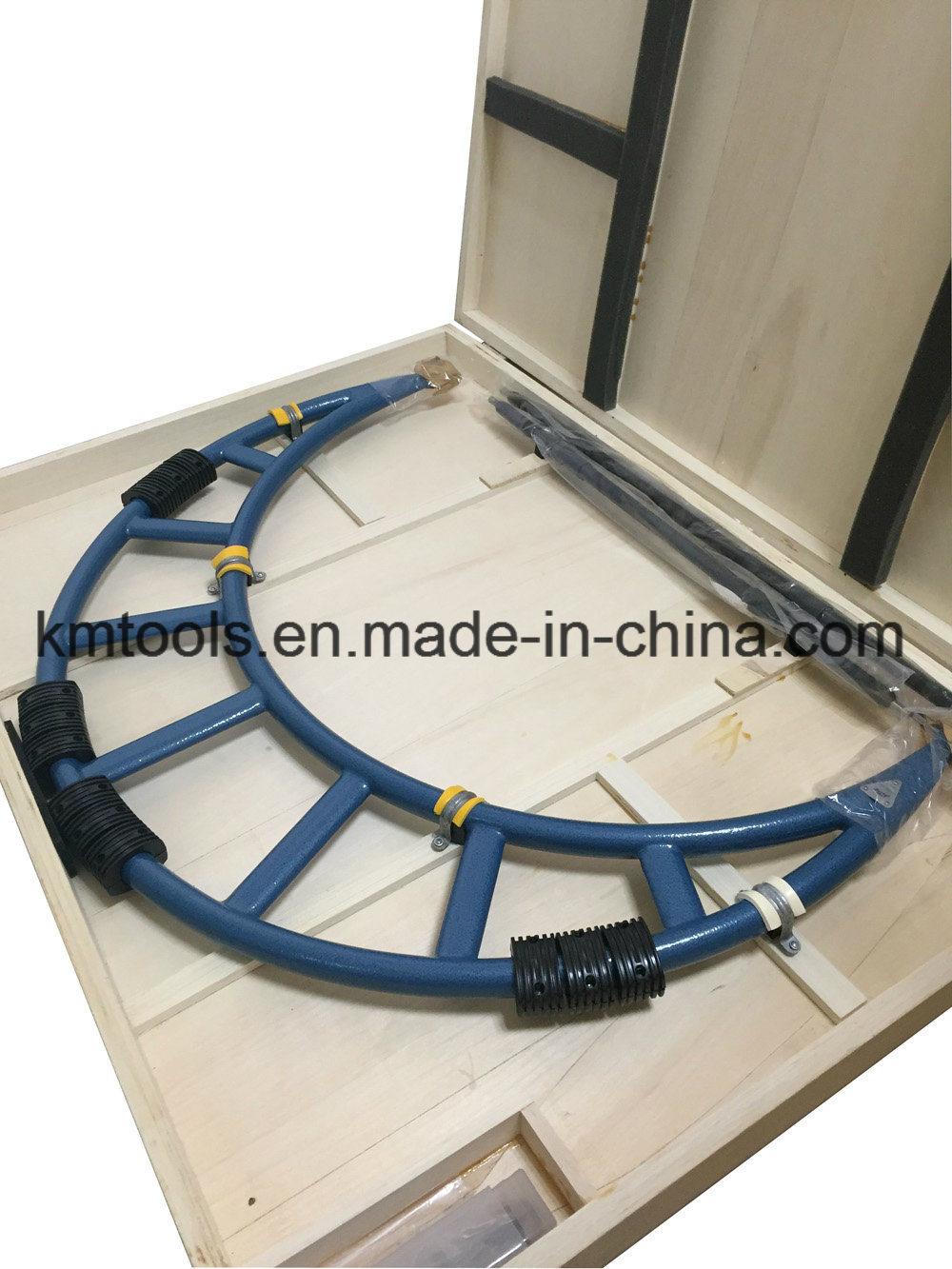

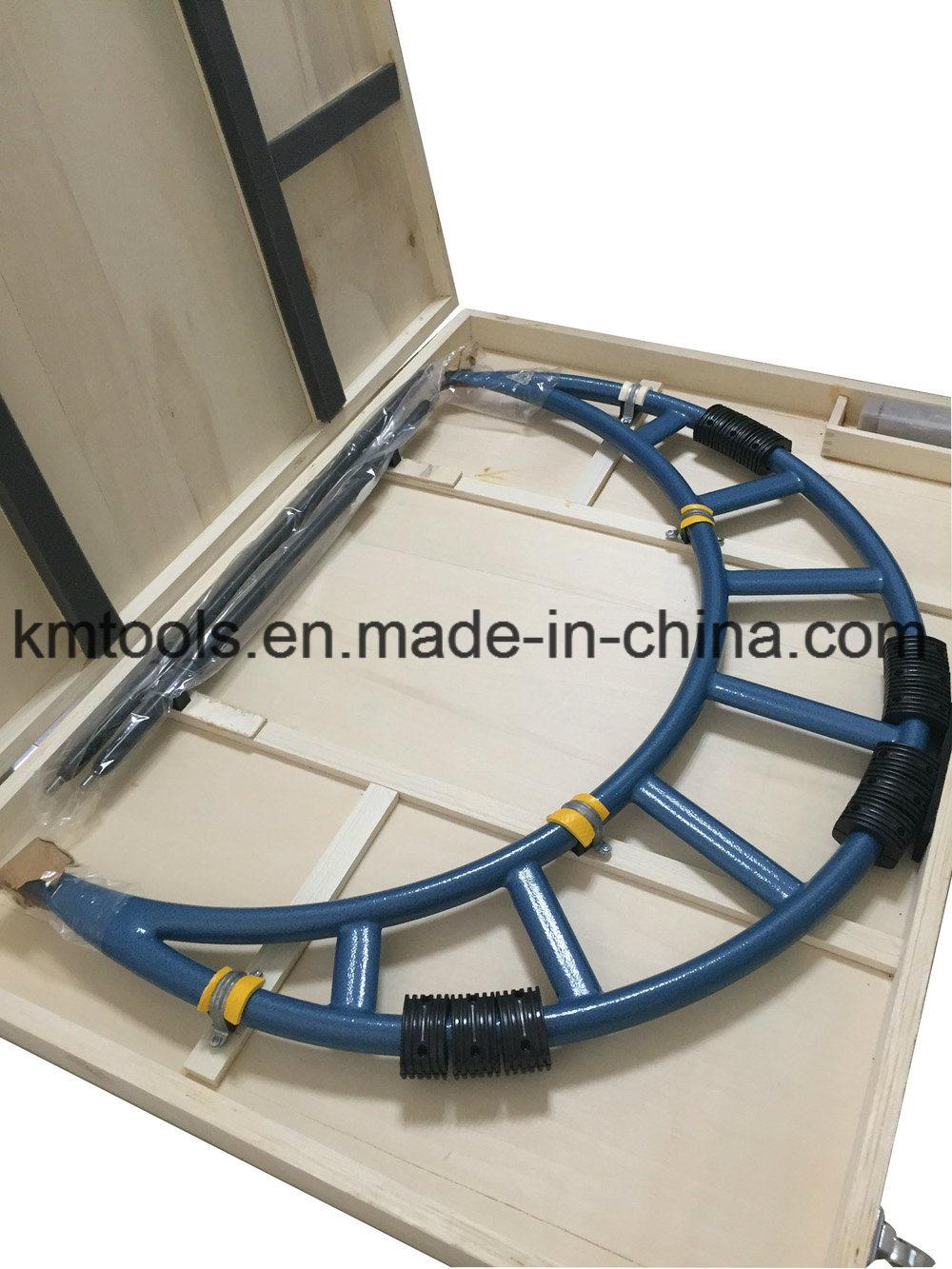

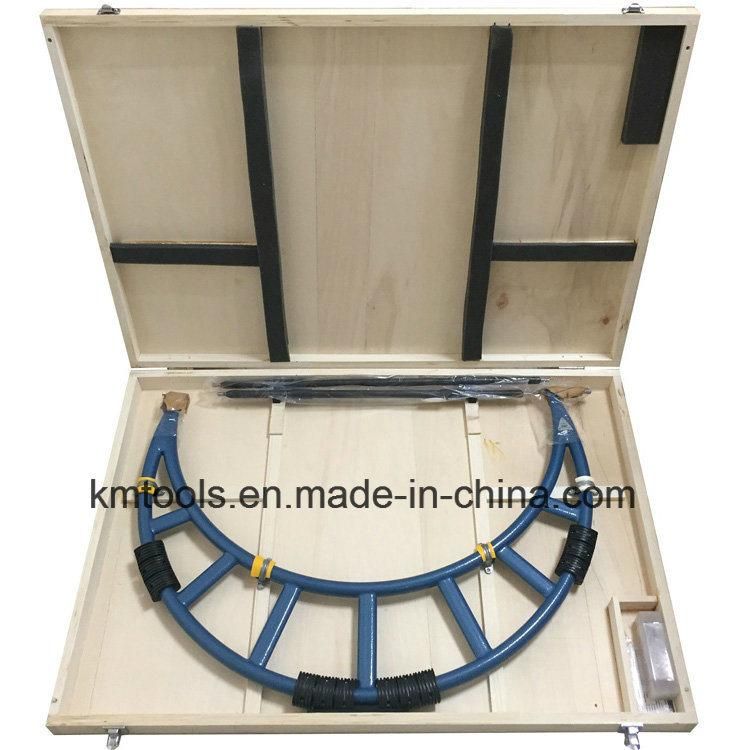

7. Supplied in the storage case.

Specification:
Metric:

Order No.	Measuring Range	Accuracy	Graduation
KM-2104-400	300~400mm	±0.011mm	0.01mm
KM-2104-500	400~500mm	±0.013mm	0.01mm
KM-2104-600	500~600mm	±0.015mm	0.01mm
KM-2104-700	600~700mm	±0.016mm	0.01mm
KM-2104-800	700~800mm	±0.018mm	0.01mm
KM-2104-900	800~900mm	±0.020mm	0.01mm
KM-2104-1000	900~1000mm	±0.020mm	0.01mm
KM-2104-1200	1000~1200mm	±0.020mm	0.01mm
KM-2104-1400	1200~1400mm	±0.024mm	0.01mm
KM-2104-1600	1400~1600mm	±0.028mm	0.01mm
KM-2104-1800	1600~1800mm	±0.031mm	0.01mm
KM-2104-2000	1800~2000mm	±0.034mm	0.01mm

Inch:

Order No.	Measuring Range	Accuracy	Graduation
KM-2104-16	12~16"	±0.011mm	0.001"
KM-2104-20	16~20"	±0.013mm	0.001"
KM-2104-24	20~24"	±0.015mm	0.001"
KM-2104-28	24~28"	±0.016mm	0.001"
KM-2104-32	28~32"	±0.018mm	0.001"
KM-2104-36	32~36"	±0.020mm	0.001"
KM-2104-40	36~40"	±0.020mm	0.001"
KM-2104-48	40~48"	±0.020mm	0.001"
KM-2104-56	48~56"	±0.024mm	0.001"
KM-2104-64	56~64"	±0.028mm	0.001"
KM-2104-72	64~72"	±0.031mm	0.001"
KM-2104-80	72~80"	±0.034mm	0.001"
