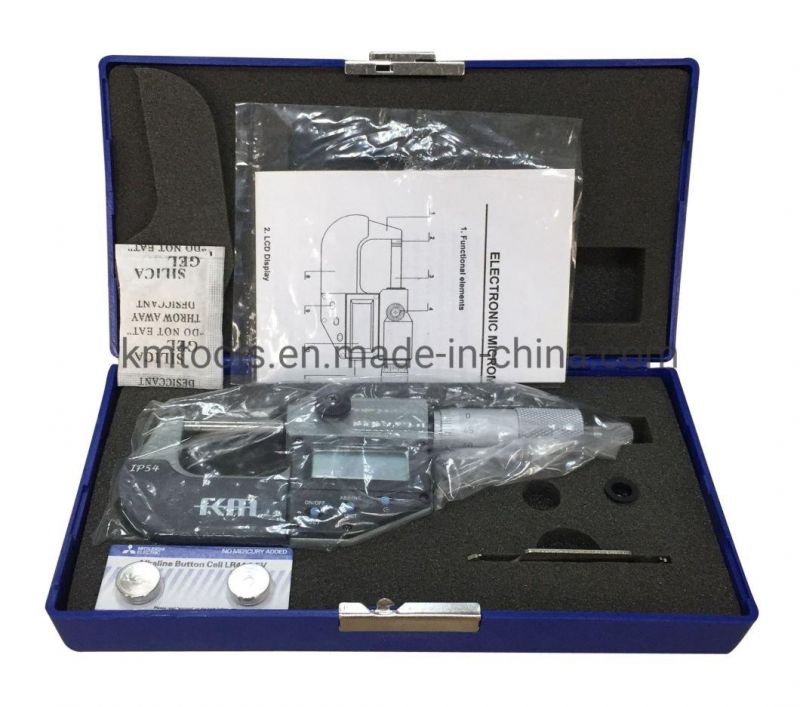

0-25mm/0-1′ ′ IP54 Electronic Digital Display Outside Micrometer DIN Standard
Deko Corporation- Warranty：One Year
- Type：Micrometer
- Measurement Object：Outside Diameter
- Range：0-25mm,0-1′′
- Resolution：0.001mm,0.00005′′
- Precision：0.002mm
Base Info
- Model NO.：KM-21304A-25
- Measure Method：Manual
- Precision Measuring Device：Precision Measuring Device
- Certification：DIN, GB, RoHS, ISO
- Customized：Customized
- Measurement：Metric,Inch
- Transport Package：ABS Box
- Specification：DIN Standard
- Trademark：KM
- Origin：Shaanxi, China
- HS Code：9017300000
- Production Capacity：50000pieces,Month
Description
Basic Info.
Model NO. KM-21304A-25 Measure Method Manual Precision Measuring Device Precision Measuring Device Certification DIN, GB, RoHS, ISO Customized Customized Measurement Metric/Inch Transport Package ABS Box Specification DIN Standard Trademark KM Origin Shaanxi, China HS Code 9017300000 Production Capacity 50000pieces/MonthProduct Description
Feature:
1.Resolution:0.001mm(Metric);0.00005''(Inch).
Resolution of micrometer heads:0.01mm(Metric);0.0001''(Inch).
2.Protection level:IP54.
3. OFF/ON,SET,ABS/INC,UNIT(in/mm conversion) function keys.
4.Display data is origin data of absolute measurement after changing battery.
5.Painted frame. Carbide measuring faces.
6.Ratchet stop.
7.Criterion:DIN863/1, DIN40050/IEC529.
Specification
Metric
| Order No. | Range | Accuracy | Resolution |
| KM-21304A-25 | 0-25mm | ±0.002mm | 0.001mm |
| KM-21304A-50 | 25-50mm | ±0.002mm | 0.001mm |
| KM-21304A-75 | 50-75mm | ±0.003mm | 0.001mm |
| KM-21304A-100 | 75-100mm | ±0.003mm | 0.001mm |
| KM-21304A-125 | 100-125mm | ±0.003mm | 0.001mm |
| KM-21304A-150 | 125-150mm | ±0.003mm | 0.001mm |
| KM-21304A-175 | 150-175mm | ±0.004mm | 0.001mm |
| KM-21304A-200 | 175-200mm | ±0.004mm | 0.001mm |
| KM-21304A-225 | 200-225mm | ±0.004mm | 0.001mm |
| KM-21304A-250 | 225-250mm | ±0.004mm | 0.001mm |
| KM-21304A-275 | 250-275mm | ±0.005mm | 0.001mm |
| KM-21304A-300 | 275-300mm | ±0.005mm | 0.001mm |
Inch
| Order No. | Measuring Range | Accuracy | Resolution |
| KM-21304A-1 | 0-1″ | ±0.00008″ | 0.00005″ |
| KM-21304A-2 | 1-2″ | ±0.00008″ | 0.00005″ |
| KM-21304A-3 | 2-3″ | ±0.00012″ | 0.00005″ |
| KM-21304A-4 | 3-4″ | ±0.00012″ | 0.00005″ |
| KM-21304A-5 | 4-5″ | ±0.00012″ | 0.00005″ |
| KM-21304A-6 | 5-6″ | ±0.00012″ | 0.00005″ |
| KM-21304A-7 | 6-7″ | ±0.00016″ | 0.00005″ |
| KM-21304A-8 | 7-8″ | ±0.00016″ | 0.00005″ |
| KM-21304A-9 | 8-9″ | ±0.00016″ | 0.00005″ |
| KM-21304A-10 | 9-10″ | ±0.00016″ | 0.00005″ |
| KM-21304A-11 | 10-11″ | ±0.0002″ | 0.00005″ |
| KM-21304A-12 | 11-12″ | ±0.0002″ | 0.00005″ |
