• Model NO.：SQB
• Scale Structure：Steel I Beam
• Operating Environment：Non Explosion Proof Loadometer
• Lightning Protection：With Lightning Protection
• Transport Package：Platforms Are Packed by Film or Color Strip
• Specification：2.5T
• Trademark：SIMEI
• Origin：China
• HS Code：84239000
• Production Capacity：50000PCS,Year

Rated load                        0.1,0.15,0.2,0.25,0.3,                                                        Nominal Temp Range                  -10~+40°C

                                          0.5,0.75,1,1.5,2.,2.5t                                                         Accuracy Class                              C2-C3

Sensitive                          0.1~3t:2.0±0.002mV/V                                                      Creep (30Min)                                ±0.02%F.S

                                          0.5~2.5t:3.0±0.003mV/V                                                  Safe load limit                                150%F.S



 Non-Linearity                  ±0.03%F.S                                                                        Service Temp Range                      -30~+70ºC



  Hysteresis error            ±0.03%F.S                                                                         Breaking Load                                150%F.S

TC ZERO                          ±0.02F.S/10ºC                                                                   Nominal of range excitating          10~12V DC



TC SPAN                          ±0.02F.S/10ºC                                                                   Protection Class                            IP67(0.1-0.75t)

input resistance             400±200Ω                                                                                                                                   IP68(1~2.5t)

Output resistance          352±3Ω                                                                              Material                                            Alloy Steel

Insulation resistance     >=5000MΩ                                                                        Cable  Length                                  1.5m:3m 1:1

 The working principle of analog sensors: each series of load cells uses an elastic body with strain gauges as the sensitive element. After an external excitation power supply, it outputs a signal proportional to the applied load force. It is matched with the corresponding instrument and can be widely used in automobiles. Various electronic scales and weighing systems such as scales, batching scales, packaging scales, etc. In addition, different types of supporting instruments can be selected to meet the requirements of other applications such as measurement, detection, adjustment and control




APLLICATION

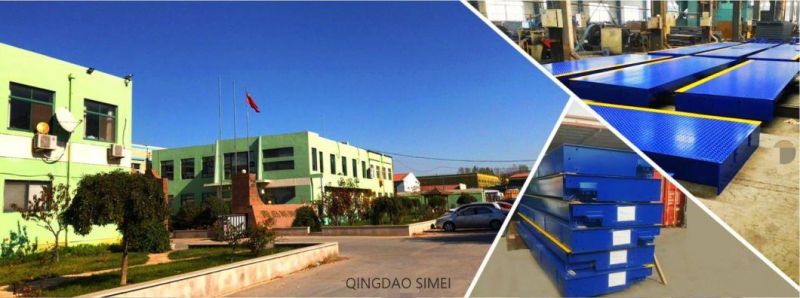

Company profile :

        Qingdao SIMEI Weighing Appratus Co.,Ltd  Which is a company specialized in weighing equipment for Scientific  research, development and production.according to ISO9001 quality system management, we equipped with advanced facilities., is located in beautiful city Qingdao, China. The company was founded in 2007, since its establishment, adhere to the truth-seeking innovation, excellence enterprise philosophy, after years of continuous accumulation and development, has become one of the domestic scale of professional weighing equipment manufacturers.






Certificate :

WHY CHOOSE SIMEI:

 1. PROFESSIONAL EXPERIENCE
2.SUPPLY YOU TOP QUALITY PRODUCTS WITH COMPETITIVE PRICE.
3.STRICTLY QUALITY CONTROL THE WHOLE PRODUCTION PROCESS AND GUARANTEE PROMPT          DELIVERY AND ENOUGH STOCKS TO MEET URGENT ORDER REQUEST.
4. SPECIAL SERVICE AND IN-TIME SERVICE BEFORE AND AFTER SALES. WE ARE NOT JUST WORKING PARTER,BUT ALSO FRIENDS AND FAMILY.
5.WE HAVE LOTS OF SENIOR STRUCTURE ENGINEER,SENIOR SYSTEM ENGINEER ETC TECHNICAL TEAM TO HELP YOU SOLVE WEIGHING PROBLEM.


For more details,please kindly contact us freely !
